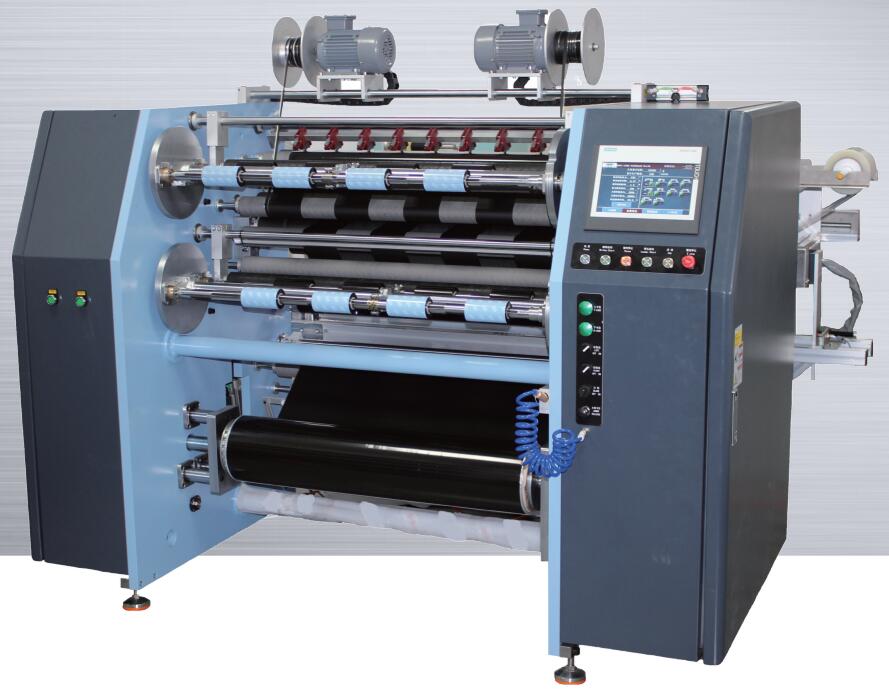

Cheap Thermal Transfer Ribbon Slitter
APPLICATION
Professional slitter for Barcode Ribbon,Fax Ribbon,Pigment Foil,Hot Stamping Foil and other Film Thickness from 4-20 micron.
BASIC SPECIFICATION
1 SLITTING WIDTH 650mm-1010MM
2 SLITTING THICKNESS 4-20 MICRON
3 UNWIND DIA. 650MM (MAX)
4 UNWIND CORE I.D. SHAFTLESS 6 INCH
5 REWINDING DIA. MAX 110MM(AROUND 1300M) OPTIONAL: 140MM MAX
6 REWINDING WIDTH MINI 30MM
7 REWINDING CORE I.D 1 INCH AIR SHAFT AND 1/2 INCH AIR SHAFT
8 SLITTING UNIT RAZOR BLADE EACH 30 PCS
9 MECHANICAL SPEED MAX280M/MIN
10 WORKING SPEED MAX250M/MIN
11 MACHINE FRAME THICKNESS: 30MM
12 METER COUNTER: METER COUNTER
13 WASTE EDGE UNIT: SERVO REWINDING MOTOR
14 POWER SOURCE 220V,2 PHASE AC 5KW
15 PNEUMATIC SOURCE 0.6-0.8MPA
16 MACHINE SIZE (REF. ONLY): 2560MM*2050MM*1680MM
17 FLOOR SPACE(REF.ONLY): 3000MM*2500MM
18 N.W/G.W (REF. ONLY): 2000KGS/2200KGS
FUNCTIONAL DESCRIPITION

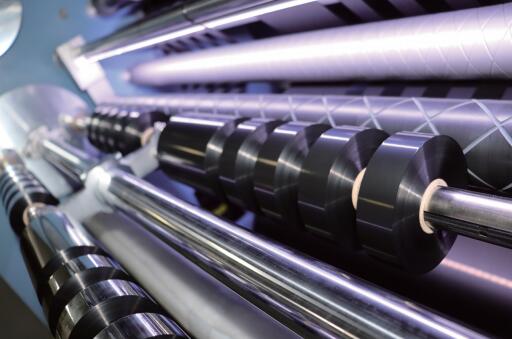

Rewinding:

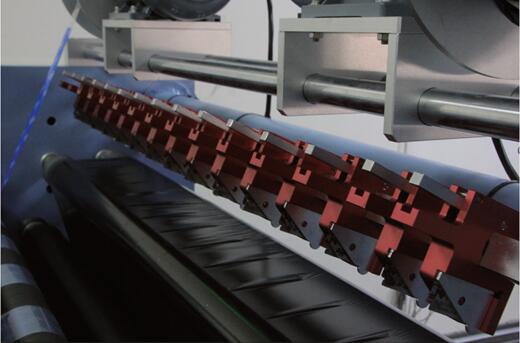

1. 30 pcs magnetic Clip Blade Holders, change slitting width quick and easy.

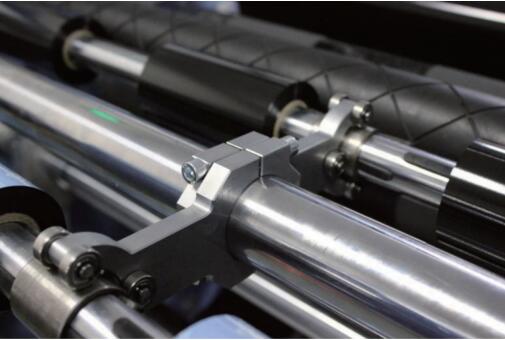

2. 4 pcs 1 Inch Air Shafts and 4 pcs 1/2 inch Air Shafts, make the core loading more easy. With the shafts holder, the rewinding shaft is stabel and faster.
3. Good quality roller, carefully design, details experience making the slitter easy operation.
4. Automatic tension control system, slitting perfect quality roll

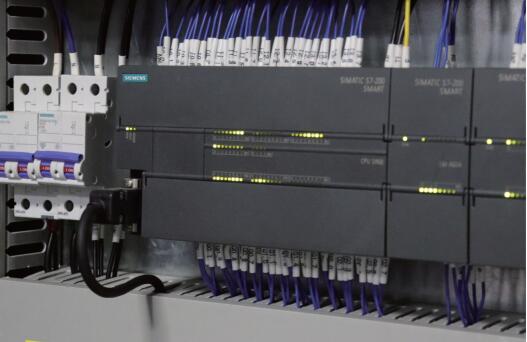

5 SIEMENS PLC stable control and long life using

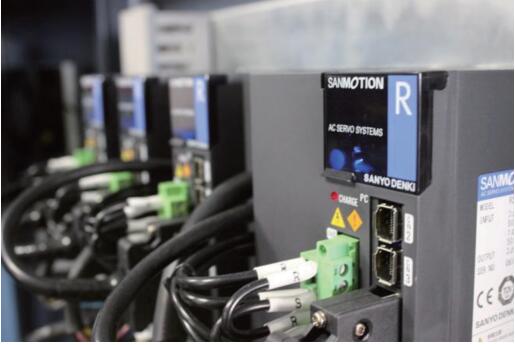

6 SERVO MOTORS, TAIWAN converter,stabel tension control,long life
(OPTIONAL:SANYO MOTOR AND CONVERTER)
GUARANTEE AND SERVICE
1 100% Test and Check Before Shipment.
2 Detailed Instruction Manual.
3 One Year Guarantee for All Key Parts.
4 Installing and Operator Training Service Provided.
5 Whole-Life Free Technical Support.
6 Regular On-Site Routine Inspection.
