HN 1600T Automatic High-Speed Slitting & Rewinding Machine
HN1600T is our latest duplex turret slitting machine. It is a turret slitter rewinder designed and manufactured for non-stop, high-throughput production.
HN1600T turret design enables operators to unload finished rolls from one shaft while the machine continues slitting and rewinding material onto the other shaft. An automatic robotic unloading system is available. The machine accommodates a maximum material width of 1600 mm for slitting.
HN1600T New Generation High-Speed Duplex Turret Slitting Machine
1）Core Advantages
Automatic tension control to maintain steady rewinding quality
Simple installation with minimal operator training
24/7 online technical support
Reliable performance and extended service life
Adjustable winding tightness
High-speed precision slitting with burr-free clean cut edges
2）Rewinding Unit
3-inch slip friction air shaft delivers consistent tension
Pneumatically controlled full-width pressing rollers to achieve wrinkle-free roll surfaces
Anti-static brushes mounted on both upper and lower pressing rollers
Laser positioning lights simplify core mounting and cut downtime
Closed-loop automatic tension control for effortless operation
3）Unloading Unit
Manual finished roll unloading mechanism for quick roll removal
4）Blade Unit
New-generation shear/razor blade system (10 sets) for fast, straightforward setup
Independently developed by the HAVESINO R&D team
5）Unwinding Unit
Shaftless unwinding system compatible with 3-inch and 6-inch cores for fast jumbo roll changeover
Hydraulic lifting system capable of loading jumbo rolls weighing up to 1 ton directly from ground level
Air brake system providing automatic tension control for large-diameter master rolls
Built-in material splicing table to guarantee consistent edge alignment
EPC edge position controller that tracks material edges or printed registration lines
1）Heavy-Duty Split-Body Structure
Engineered for large production capacity, the machine accepts a maximum unwinding diameter of 1300 mm.
It comes with automatic hydraulic floor pickup and motorized screw adjustment for web width, greatly cutting manual workload and accelerating roll loading.
2）High-Precision Web Guiding & Splicing
Fitted with an advanced EPC/LPC edge guiding system to maintain flawless material alignment.
It incorporates a built-in splicing table to deliver fast, simple and accurate joining between new and residual master rolls.
3）Integrated Operator Walkway / Service Bridge
A sturdy walkway platform bridges the unwinding and rewinding sections, offering operators ergonomic access for safe, hassle-free blade positioning and adjustment.
4）Universal Dual Slitting System
Compatible with both razor and circular shear blade slitting to process a wide spectrum of materials with varying thicknesses.
It features semi-automatic circular blade positioning, which drastically shortens setup time and lifts overall production efficiency.

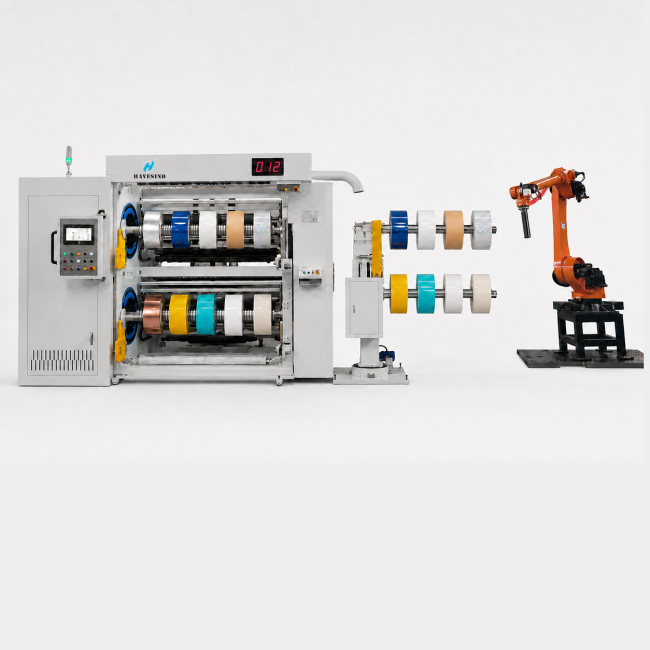

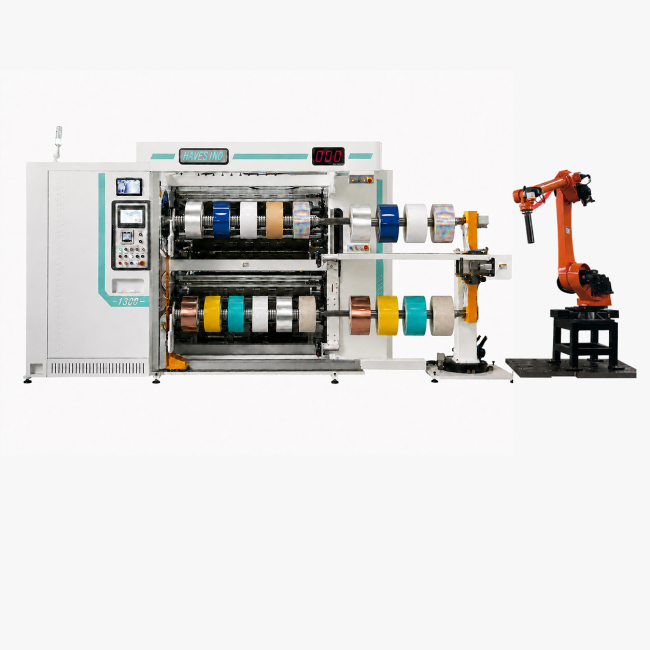

5）4-Shaft Duplex Turret Rewinding
Adopts an upper and lower 4-shaft rotary turret design. While one pair of shafts runs high-speed rewinding, the other can be preloaded with new cores to enable uninterrupted continuous production.
6）Fully Automatic Robotic Unloading
Finished rolls are automatically transferred to a 180° rotating discharge rack.
A built-in robotic arm retrieves rolls one by one and stacks them on pallets, delivering a high-throughput, labor-efficient production workflow.
| MODEL | HN1600T |
| Slitting Thickness | 12–200 μm |
| Slitting Width | Max 1600 mm / Min 300 mm |
| Unwinding Diameter | Max 1300 mm |
| Unwinding Type | Shaftless 3" and 6" |
| Unwinding Brake | Air brake |
| Rewinding Width | Min 35 mm |
| Rewinding Diameter | Max 600 mm |
| Rewinding Shaft | 3" slipping friction air shaft |
| Slitting Unit | Razor blade + circle blade |
| Mechanical Speed | Max 650 m/min |
| Working Speed | Max 600 m/min |
| Waste Edge System | Air blower |
| Laser Position Lights | 10 pcs |
| Power Supply | 380V, 3-phase, 50Hz |
| Air Supply | 0.7 MPa (min) |
* Other specifications are offered at request.
