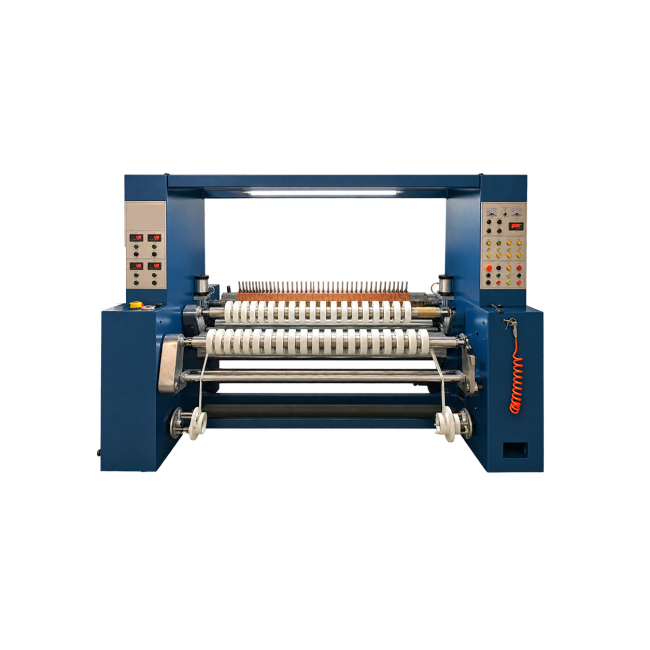

FY800- 1600JL Fabric Slitting and Rewinding Machine with Heat Blade
The FY800- 1600JL Heating Blade Slitter is a cost-effective, reliable solution for large-width industrial fabric slitting and converting production. Robust yet precise, it ensures high-precision slitting, stable material conveying, and high-quality fabric rolls, making it ideal for medium and large fabric processing enterprises.
FY800-1600JL Heating Blade Slitter is our high-performance large-width model for industrial fabric slitting and converting production.
It is designed for non-woven fabric, satin, and various other woven and non-woven fabric materials with slitting width requirements from 50mm to 1600mm.Equipped with dual rewinding air shafts, photoelectric edge guide, and magnetic powder brake, the model delivers consistent high-precision slitting quality, reduces fabric material waste, and improves overall production efficiency.
1. Heating Straight Blades & Blade Spacer, adjust slitting width quick and easy.

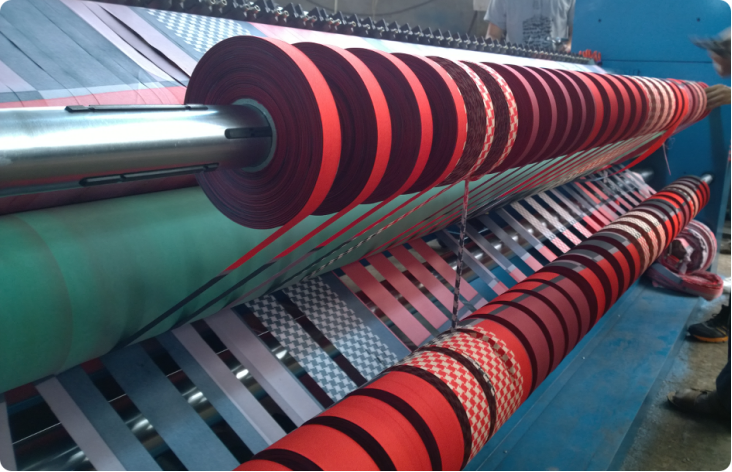

2. Multi-spec Air Shafts (1/1.5/3 Inch), make the core loading more easy. With dual rewinding air shafts, the fabric winding is stable and faster.
3. Professional Edge Guide System, auto align fabric edge: No need to manually adjust material position during the slitting process.
4. Branded Magnetic Powder Brake, elaborate design, delicate details making the slitter easy operation.
5. ENC Inverter Speed Control System, slitting perfect quality fabric rolls.
| MODEL | FY800-1600JL |
| Max Slitting Width | 800-1600MM |
| Max Unwind Diameter | 600MM |
| Unwind Core I.D. | 1 INCH / 1.5 INCH / 3 INCH |
| Max Rewinding Diameter | 300MM |
| Min Rewinding Width | 10MM |
| Rewinding Core I.D. | 1 INCH / 1.5 INCH / 3 INCH |
| Slitting Unit | Heating Straight Blade |
| Max Mechanical Speed | 120M/MIN |
| Working Speed | 30-80M/MIN (Adjustable) |
| Power Source | 380V, 3 PHASE |
| Pneumatic Source | 0.6MPA |
| Machine Dimension | 2540MM * 2500MM * 1200MM |
| Packing Dimension | 3100x1560x2260mm / 2480x1460x1010mm |
| Net Weight (NW) | 1650KGS + 720KGS |
| Gross Weight (GW) | 1750KGS + 800KGS |
* Other specifications are offered at request.
