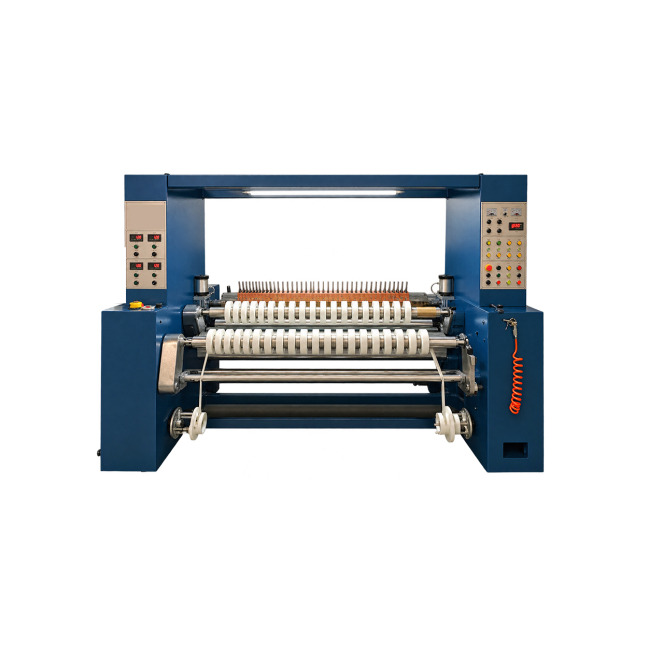

FY1600J PLUS Fabric Slitting and Rewinding Machine with Heat Blade
FY1600J PLUS Heating Blade Slitter is a cost-effective, reliable solution for industrial fabric slitting and converting production. Durable yet easy-to-operate, it ensures precise slitting, stable material feeding, and high-quality fabric rolls, making it ideal for medium and large fabric processing enterprises.
FY1600J Plus is an enhanced heat blade slitting machine designed to handle large & heavy fabric rolls efficiently.
It is our most popular mature model for industrial fabric slitting and converting production. It is designed for non-woven fabric, satin, as well as other woven and non-woven fabric materials with slitting width requirements from 10mm to 1620mm.Equipped with multi-spec air shafts, 80pcs heating straight blades, and a professional pneumatic control system, the FY1600J PLUS delivers consistent high-precision slitting quality, reduces fabric material waste, and improves overall production efficiency.

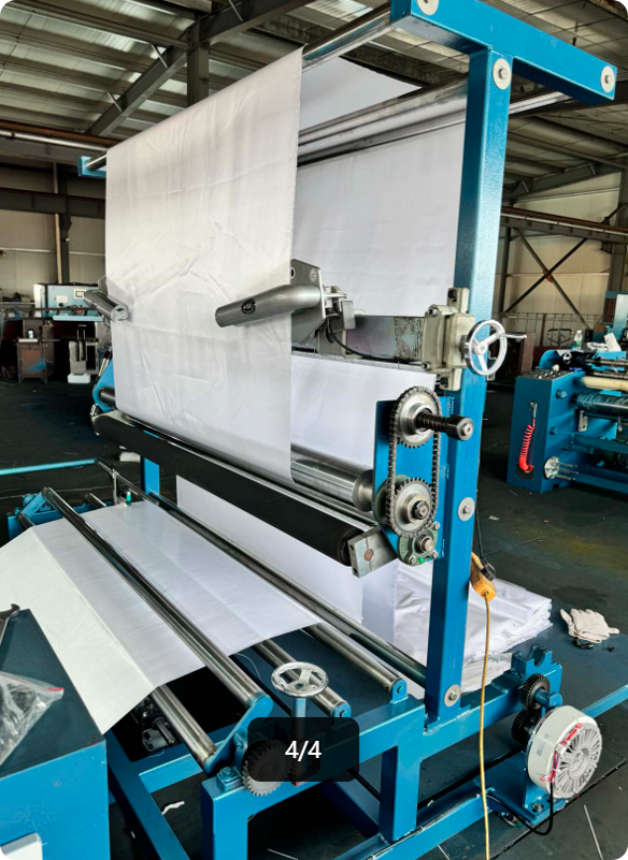

1.The machine is equipped with an additional frame on the unwinding section to flatten fabric, effectively smoothing out wrinkles caused by loosely packed jumbo fabric rolls.
2. High-efficiency Heating Straight Blade System: Realizing multi-station simultaneous slitting, high working efficiency
3. Wide Slitting Range & Strong Compatibility: Minimum rewinding width up to 10mm, maximum slitting width 1620mm
4. Multi-spec Air Shaft Adaptation: Unwinding and rewinding core I.D. support 1 inch, 1.5 inch and 3 inch
| MODEL | FY1600J PLUS |
| Max Slitting Width | 1620MM |
| Max Unwind Diameter | 600MM |
| Unwind Core I.D. | 1 INCH / 1.5 INCH / 3 INCH |
| Max Rewinding Diameter | 300MM |
| Min Rewinding Width | 10MM |
| Rewinding Core I.D. | 1 INCH / 1.5 INCH / 3 INCH |
| Slitting Unit | Heating Straight Blade |
| Max Mechanical Speed | 120M/MIN |
| Working Speed | 30-80M/MIN (Adjustable) |
| Power Source | 380V, 3 PHASE |
| Pneumatic Source | 0.6MPA |
| Machine Dimension | 2540MM * 2500MM * 1200MM |
| Packing Dimension | 3100x1560x2260mm / 2480x1460x1010mm |
| Net Weight (NW) | 1650KGS + 720KGS |
| Gross Weight (GW) | 1750KGS + 800KGS |
* Other specifications are offered at request.
