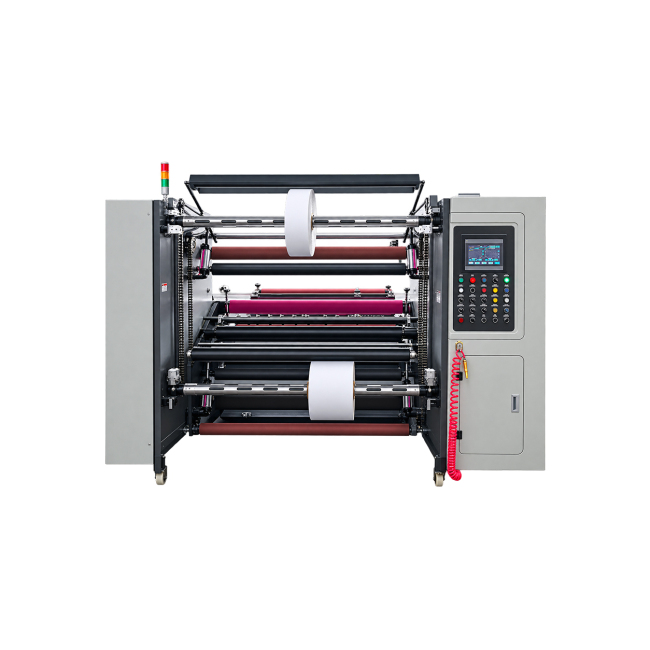

HN1300-1600P Automatic Big Diameter Slitting & Rewinding Machine
Cost-Effective Slitter for Foil, Film, Laminates, Paper and Non-Woven Materials
HN1600P is a high-performance slitting and rewinding machine specially designed for large diameter materials such as paper, adhesive labels, and composite printed materials.
It is widely used for:
Paper(40–500 gsm), label, adhesive label
With its robust structure, automatic control system, and stable performance, HN1600P is recognized as a very cost-effective slitting solution, especially suitable for large roll converting applications.
1.Automatic tension control system
2.Easy installation and quick operation learning
3.24/7 online service support
4.Stable performance with long service life
5.Highly cost-effective solution
6.Precise slitting with smooth and clean edges
Unwinding Unit
1.Automatic cylinder loading system with magnetic powder brake
2.Automatic tension control without material thickness input
Proximity switch detects unwinding diameter for intelligent speed reduction
3.Manual tension adjustment system (±20 mm range)
4.Motor-driven lateral movement for automatic correction (EPC function)
5.Corridor-type feeding design for easy operation
6.Magnetic powder brake: 20 kg × 2 sets
Traction Unit
1.7.5 kW servo motor drives mirror roller and pinch roller
Waste Edge Unit
2.Air blower system for waste edge removal
3.Collection cage to be prepared by customer
4.Rewinding Unit (Automatic Loading & Unloading)
5.Double bearing rewinding structure (top & bottom)
6.Each shaft driven by 11 kW servo motor
7.PLC controls automatic tension based on roll diameter
8.Ensures uniform thickness during multi-roll slitting
9.Smooth roll surface with pneumatic or self-weight press roller
10.Adjustable tightness via screw-type system
11.Servo motor slows down automatically as diameter increases
12.Optional torque control mode without friction shaft
13.Automatic unloading system (up & down)
14.3-inch air shaft (optional: 6-inch / slipping shaft)
| MODEL | HN1300-2000F |
| Slitting Thickness | 40–500 gsm |
| Slitting Width | Max 1600 mm |
| Min Slitting Width | 300 mm |
| Unwinding Diameter | Max 1500 mm (Optional: 1600 mm) |
| Unwinding Type | Shaftless (3” & 6”) |
| Unwinding Brake | Magnetic powder brake |
| Rewinding Width | Min 40 mm |
| Rewinding Diameter | Max 800 mm |
| Rewinding Shaft | 3” air shaft (Optional: slipping shaft / 6”) |
| Slitting Unit | Shear circular blade |
| Mechanical Speed | Max 450 m/min |
| Working Speed | Max 350 m/min |
| Slitting Precision | ±0.15 mm |
| Waste Edge System | Air blower |
| Meter Counter | Wheel-type meter counter |
| Power Supply | 380V, 3-phase, 50Hz (21.5 kW, customizable) |
| Air Supply | 0.7 MPa (min) |
| Net Weight | 4500 kg |
| Machine Size | 3400 × 3000 × 1800 mm |
* Other specifications are offered at request.
