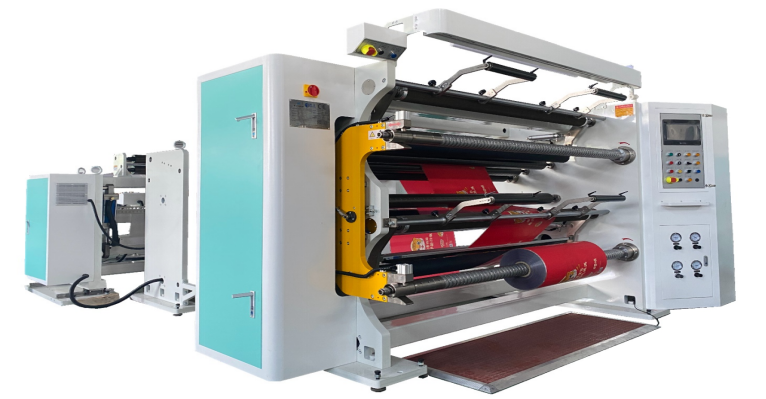

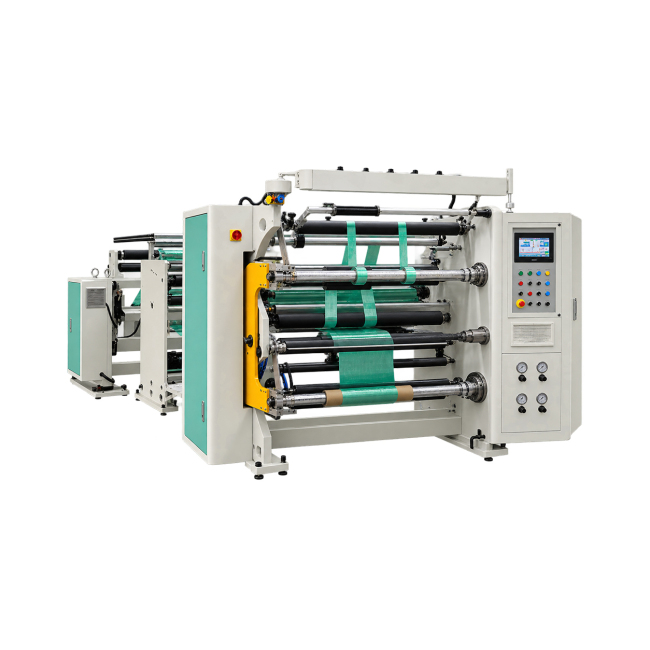

HN1300 -2000 Separated Slitting Rewinding Machine
HN1300-2000F Slitting Machine is our most popular slitting solution.
It is an ideal choice for startups and is particularly well-suited for printing houses, film manufacturers, and small-to-medium-sized slitting facilities.
Boasting high operating speeds, simple operation, exceptional value, and stable, mature technology—along with automatic tension control and the ability to produce high-quality finished rolls—it stands as the premier choice for slitting equipment.
HN1300-2000 F Separate Slitter is our robust, high-efficiency model for flexible packaging material production.
It is designed for plastic films, aluminum foil, laminates, and other soft packaging materials with thicknesses from 12 to 200 microns.

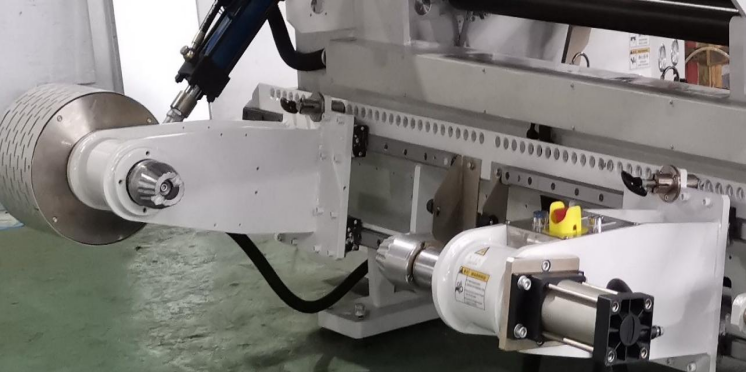

Equipped with shaftless unwinding, optional friction shafts, and a choice of razor or circle blades, the HN1600-F delivers consistent slitting precision, stable tension control, and high production output. Its split-frame design, combined with reliable air brake systems and laser positioning guides, makes it a perfect choice for flexible packaging converters seeking a high-speed and versatile machine.
Max Working Speed: 500 m/min
Max Slitting Width: 1600 mm
1.Auto Tension Control;
2.Free Installing and Quick Operation Learning;
3.24*7 Hours Online Service;
4.Stable Performance and Long Life Use ;
5.Random Adjust the Tightness of the Roll;
6.Precise feeling of the unwinding diameter , Fast Speed, Perfect Edge Slitting
| MODEL | HN1300-2000F |
| SLITTING WIDTH | MAX 2000MM |
| SLITTING THICKNESS | 12-180UM |
| UNWIND DIA | MAX 1000MM |
| OPTIONAL | MAX 1300MM |
| UNWIND CORE I.D | 3 INCH AND 6 INCH |
| REWINDING DIA | MAX 610MM |
| OPTIONAL | MAX 800MM |
| REWINDING WIDTH | MINI 50MM |
| REWINDING CORE I.D | 3 INCH |
| SLITTING UNIT SHEAR BLADE | 10 PCS（OPTIONAL: RAZOR BLADE） |
| MECHANICAL SPEED | MAX450M/MIN |
| WORKING SPEED | MAX400M/MIN |
| MACHINE FRAME THICKNESS | 40MM |
| METER COUNTER | METER COUNTER |
| WASTE EDGE UNIT | AC MOTOR REWINDING |
| POWER SOURCE | 380V,3 PHASE,50Hz |
| PNEUMATIC SOURCE | 0.8MPA |
| LASER POSITIONING | 10 PCS |
* Other specifications are offered at request.
