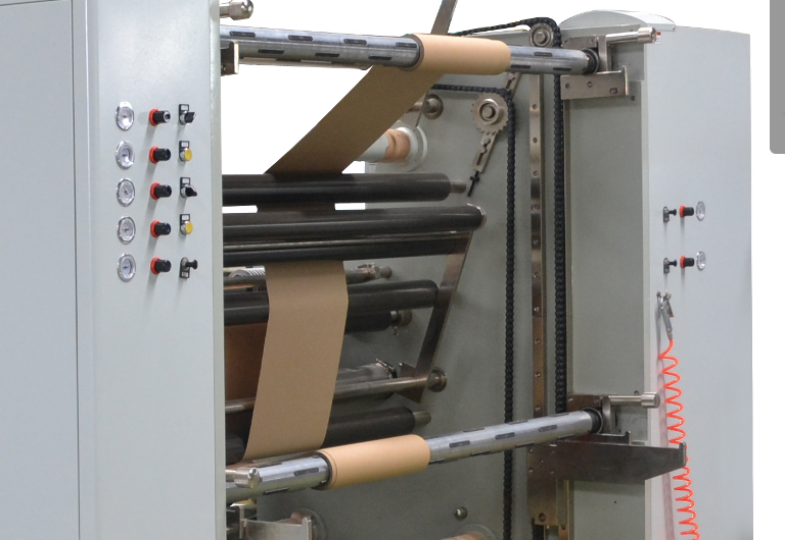

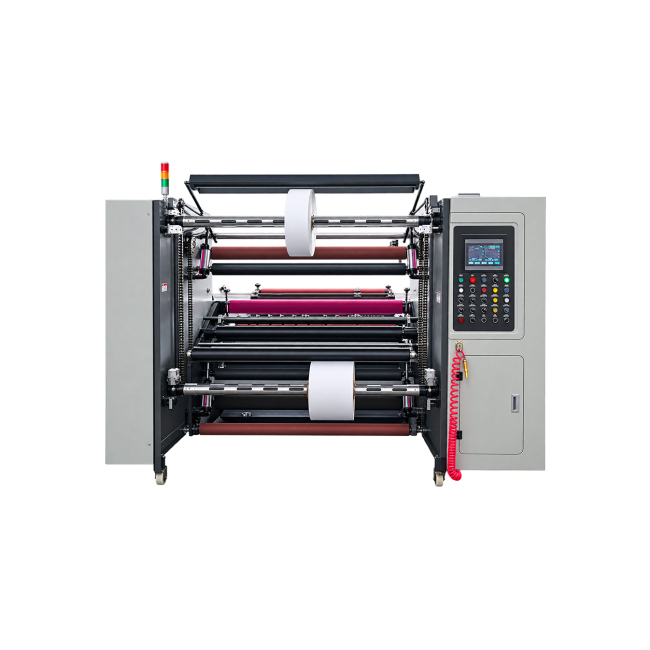

HN1600P High Speed Paper Slitting Machine
The HN1600P paper slitting machine is designed for precision converting of 50–450 gsm paper, offering stable performance, shear blade cutting, and high efficiency operation up to 350 m/min for various paper roll applications.
The HN1600P is a reliable paper slitting machine engineered for processing a wide range of paper materials from 50 to 450 gsm. Equipped with a shear blade slitting system, it ensures clean edges and consistent roll quality.
The machine supports a maximum slitting width of 1300 mm and unwind/rewind diameters up to 1200 mm, making it suitable for large roll operations. With stable running speed up to 350 m/min, strong 40 mm wall structure, and efficient waste edge blower, it delivers durability and high productivity for paper converting industries.
1. With 3 inches and 6 inch shaftless rewinding
2. Max working speed up to 350m/min
3. Easy Installing and Quick Operation Learning;
4. Precise Slitting, Fast Speed, Perfect Edge Slitting
5. Big diameter rewinding slitter is specially design for large rolling materials
6. Variety used in PET, BOPP, PE, paper sticker, paper, compound printing paper
| MODEL | HN1600P |
| SLITTING WIDTH | MAX1600MM |
| SLITTING THICKNESS | 50-450 gram Paper |
| UNWIND DIA. | MAX1200MM |
| UNWIND CORE I.D. | 3 INCH AND 6 INCH |
| REWINDING DIA. | MAX1200MM |
| REWINDING WIDTH | MINI40MM |
| REWINDING CORE I.D | 3 INCH |
| SLITTING UNIT | SHEAR BLADE |
| MECHANICAL SPEED | MAX400M/MIN |
| WORKING SPEED | MAX350M/MIN |
| WALL THICKNESS | 40MM |
| METER COUNTER | METER COUNTER |
| WASTE EDGE UNIT | AIR BLOWER |
| OWER SOURCE | 380V,3 PHASE,50Hz,21KW |
| PNEUMATIC SOURCE | 0.6MPA |
| N.W(REF. ONLY) | 3500 KGS |
| MACHINE SIZE (REF. ONLY) | 3400MM*2800MM*1700MM |
| LOOR SPACE(REF.ONLY) | 3500MM*3000MM |
| COLOR(REF.ONLY) | WHITE AND YELLOW |
* Other specifications are offered at request.
