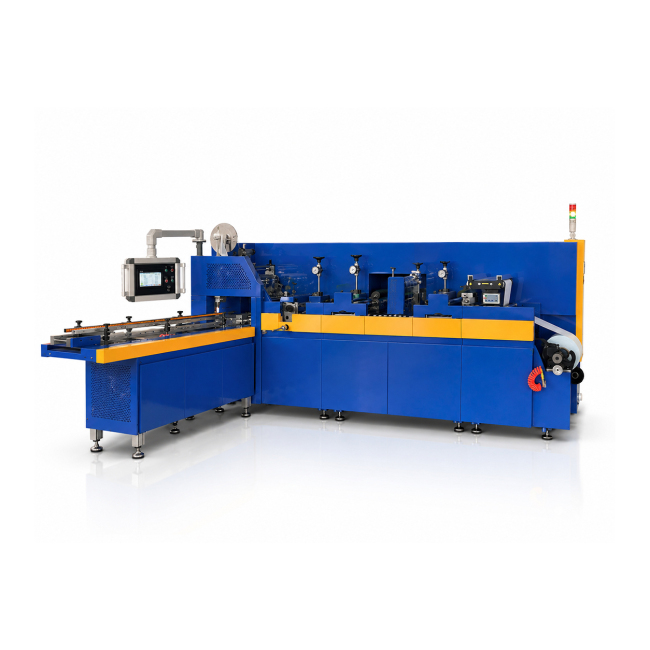

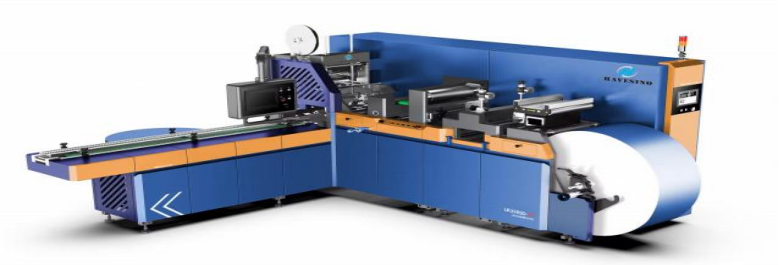

LR350SD FA High-end fully automatic label slitting and die cutting machine
LR350SD-FA Slitting and Die Cutting Machine is a high-performance, reliable solution for automatic label slitting and die-cutting production. Intelligent yet efficient, it ensures precise die-cutting, stable tension control, and high-quality label rolls, making it ideal for medium and large label processing enterprises.
LR350SD FA is the fully automatic label die cutting and slitting machine , it has the functions of die-cutting station, crimping station, double rewinding, automatic paper feeding, independent waste discharge system, automatic meter counting, automatic shutdown, paperless shutdown, automatic deviation correction, PLC control, etc.
The compact structure of the equipment ensures high efficiency of work, easy operation and stable production of labels. It is equipped with a dual reel function (converting jumbo reels to
small finished rolls), as well as jumbo to jumbo function.
1. Fully Automatic Three-shaft Die-Cut and Rewinding: Three-shaft rewinding delivers higher production efficiency.
2. High-End Configuration: Major components are imported from brands such as Delta, Airtac, and NSK in Taiwan, with a comprehensive servo system.
3. Automatic Core Loading System: Ensures seamless operation and minimizes manual intervention.
4. Automatic Labeling System: Improves labeling accuracy and speed.
5.Automatic deviation correction system: ensure that the unwinding material is centered and die- cut to ensure the axial position accuracy.
| MODEL | LR350SD FA |
| Max Paper Width | 350mm |
| Min Paper Width | 100mm |
| Min Die Cutting Width | 15mm |
| Max Unwinding Diameter | 1000mm |
| Max Die Cutting Rewind Diameter (1 roller) | 120mm |
| Max Slitting Speed | 180m/min |
| Max Die Cutting Speed | 150m/min |
| Total Power | 3.8KW |
| Power Voltage | 380V, 3 PHASES, 50-60HZ |
| Air Source Requirement | 0.6Mpa |
| Rewinding Shaft Core Size | 25MM, 40MM |
| Shaft Type | Air Shaft |
| Machine Dimension (Main Body) | 3890×1960×1990mm |
| Core Section Dimension | 900×850×970mm |
| Total Net Weight | 4200KGS (4000KGS+200KGS) |
| Total Gross Weight | 4310KGS (4100KGS+210KGS) |
* Other specifications are offered at request.
