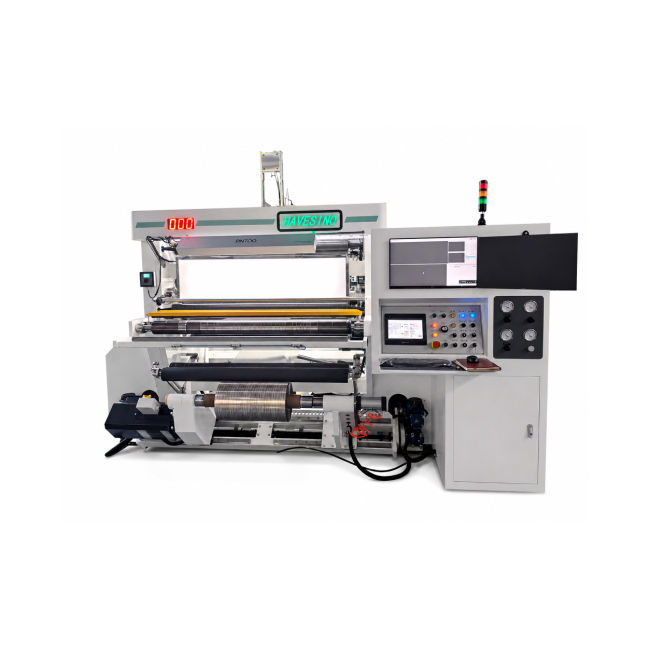

HN1600R Inspection Rewinding Machine for All Kind of Film Foil Laminations

HN1600R model is designed for wide web after printing and lamination inspecion and rewinding.Auto defects detecting system for precisely and 100% continuously inspection is optional which become more&morepopular in order to meet increasingly demand of zero defect.

$??.00

Have chosen: There are no options selected.

Order After Login

Added To Cart Successfully!

HN1600R Inspection Rewinding Machine for All Kind of Film Foil Laminations
HN1600R Inspection Rewinding Machine for All Kind of Film Foil Laminations
HN1600R Inspection Rewinding Machine for All Kind of Film Foil Laminations
HN1600R Inspection Rewinding Machine for All Kind of Film Foil Laminations
HN1600R Inspection Rewinding Machine for All Kind of Film Foil Laminations

HN1600R Inspection Rewinding Machine for All Kind of Film Foil Laminations

HN1600R model is designed for wide web after printing and lamination inspecion and rewinding.Auto defects detecting system for precisely and 100% continuously inspection is optional which become more&morepopular in order to meet increasingly demand of zero defect.


PriceShow price after login

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production



Application:

Our this HN1600R rewinding machine is professionally designed to rewind and inspect printed films, laminates etc.




Key Features:

Shaft Less Unwinder and Rewinder with Hydraulic Up/Down Movement for Handling

Both Side Moment of Roll (Forward & Backward)

Accurate Auto Tension Control with Load Cell (Close Loop)

Both Side Touch Panel for Easy Operation from Unwind and Rewind

Defect and Defect Less Material Length Data Recording

Line Guide System for Electronic Edge Sensing for Perfect Winding

Reverse Forward System

Techno Feed System to Keep Speed Constant from Start to End of Roll





Basic specification:
ModelHN1600R
MATERIAL WIDTH500MM-1300MM
MATERIAL THICKNESS12UM-120UM
UNWINDING DIAMETER800MM   OPTIONAL:1000MM
UNWIND CORESHAFTLESS 3 LNCH AND 6  LNCH
REWIND DIAMETER800MM  OPTIONAL:1000MM
REWIND TYPE3 LNCH
MECHANICAL SPEED350M/MIN
REWIND SPEED300M/MIN
MACHINE FRAME50MM
POWER380V 3PH 50HZ
AIR0.7MPA



Optional:

Defect Less Material Length Data Recording
