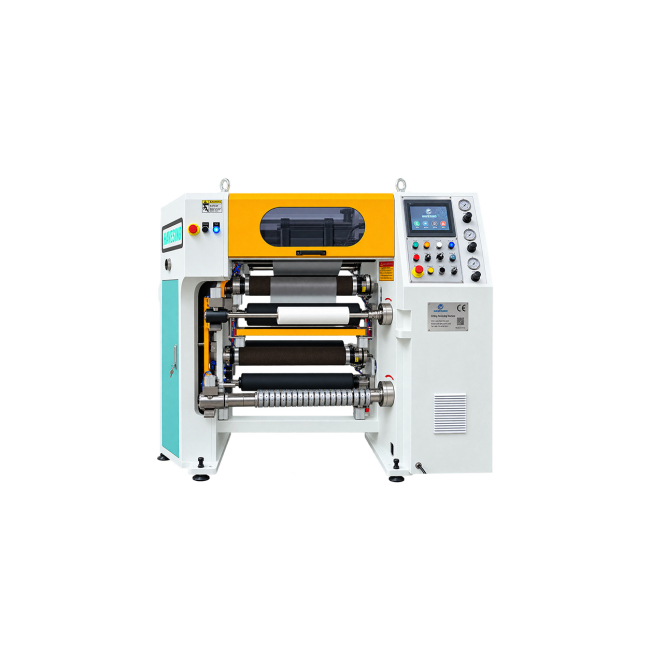

HN500RS Slitting Rewinding Machine
It is an ideal choice for startups and is particularly well-suited for printing houses, film manufacturers, and small-to-medium-sized slitting facilities.
Boasting high operating speeds, simple operation, exceptional value, and stable, mature technology—along with automatic tension control and the ability to produce high-quality finished rolls—it stands as the premier choice for slitting equipment.
HN500RS Slitter Rewinder is one of our most popular multipurpose slitter for Thermal Film,BOPP,LDPE,PET,OPP,CPP,Hot Stamping Foil,Cold Foil,Labels,Polyester Film, Fabric and so on.
It is fully auto tension control slitter, max slitting speed 500m/min, it is a very cost effecitve slitter which worthy your investment.
Basic Specification:
Max Slitting Width： 500mm
Max Working Speed: 500m/min
Mini Slitting Width: 25mm
Unwinding Dia.: 600mm
Rewinding Dia.: 600mm
1.Auto Tension Control;
2.Free Installing and Quick Operation Learning;
3.24*7 Hours Online Service;
4.Stable Performance and Long Life Use ;
5.Random Adjust the Tightness of the Roll;
6.Precise feeling of the unwinding diameter , Fast Speed, Perfect Edge Slitting
| MODEL | HN500RS |
| SLITTING WIDTH | 30-500MM |
| SLITTING THICKNESS | 10-4000MM |
| UNWIND DIA | MAX 600MM |
| UNWIND CORE I.D | 3 INCH |
| REWINRING DIA | MAX 600MM |
| REWINDING WIDTH | MINI 30MM |
| REWINDING CORE I.D | 1 INCH AND 3 INCH |
| MECHANICAL SPEED | MAX 350M/MN |
| WORKING SPEED | MAX 300M/MIN |
| METER COUNTER | METER COUNTER |
| POWER SOWRCE | 380V+10%. 3PHASE 4WIRES. 50Hz |
| RATE OF WORK | 5KW |
| PNEUMATIC SOURCE | MINI 0.6MPA |
| N.W/G.W(REE.ONLY) | 1400/1500KG |
* Other specifications are offered at request.
