Nylon Fabric Oxford Fabric Mask Fabric Non Woven Fabric Slitting Machine FY1600C

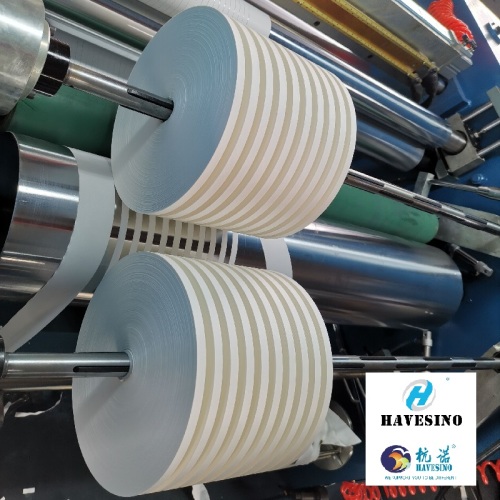

FY1600C is a fabric cutting machine is suitable for slitting Polyester Satin, Nylon Taffeta, Cotton Tape, Polyester Cotton, Polyester Taffeta, Acetate Taffeta, Pongee Fabric, Fabric Satin and other textile, fabric, nylon MATERIAL.
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
APPLICATION
This is our most popular non woven fabric slitting machine, it is suitable to slit and cut Nylon Taffeta, Non-Woven Fabric, Garment Fabric, Melt Blown Fabric and other fabric.
SPECIFICATION
| 1 | SLITTING WIDTH | 820MM |
| 2 | UNWINDING DIAMETER | 600MM(MAX) |
| 3 | UNWIND CORE SHAFT | AIR SHAFT |
| 4 | UNWINDING CORE SIZE | 25.4MM(1 INCH),40MM(1.5 INCH) or 76MM(3 INCH) |
| 5 | UINWINDING CORE QTY | 1PC |
| 6 | REWINDING WIDTH | MIN.10MM |
| 7 | REWINDING DIA. | 300MM(MAX.) |
| 8 | REWINDING CORE SIZE | 25.4MM(1 INCH),40MM(1.5 INCH) or 76MM(3 INCH) |
| 9 | REWINDING CORE TYPE | AIR SHAFT |
| 10 | REWINDING CORE QTY | 2 PCS |
| 11 | BLADE TYPE | COLD CIRCLE BLADE |
| 12 | BLADE QTY | 40PCS |
| 13 | MECHANICAL SPEED | 120M/MIN |
| 14 | WORKING SPEED | 30-80M/MIN |
| 15 | POWER SUPPLY | 380V, 3 PHASES, 0.6Mpa |
| 16 | MACHINE DIMENSION | 2540MM*1700MM*1200MM |
| 17 | PACKING DIMENSION | 2700MM*1250MM*1110MM |
| 18 | G.W. | 1 TONS |
FEATURES
A. Mini Slitting Wdith 10mm.
B. Slitting Width from 10mm-3300mm.
C. Special roller design for better tension control
D. Extral presser roller design make sure the rewind rolls compact and even
E. heating blade with edge sealing function
F. Used by 173 customers in 25 countries.
G. Stable quality and very reasonable Price
GUARANTEE AND SERVICE
1 ONE YEAR GURANTEE FOR THE KEY PARTS OF THE MACHINE, THE PARTS ARE AS FOLLOWING:
MOTOR, PLC, TOUCH SCREEN,MAGNETIC POWDER CLUTCH
2 MACHINE INSTALLING AND WORKER TRAINNING SERVICE.
A. WE CAN ARRANGE OUR ENGINEER TO YOUR FACTORY TO INSTALL AND TRAINNING YOUR WORKER
IF YOU PAY THE VISA COST, AIR TICKET, FOOD, HOTEL AND 80USD/DAY SUBSIDY.
B. YOU CAN ARRANGE YOUR WORKER COME OUR FACTORY TO ACCEPT TRAINNING OF INSTALLING
AND OPERTATION, YOU NEED TO PAY THE HOTEL COST.
3. WHOLE LIFE TECHNICAL SUPPORT.
