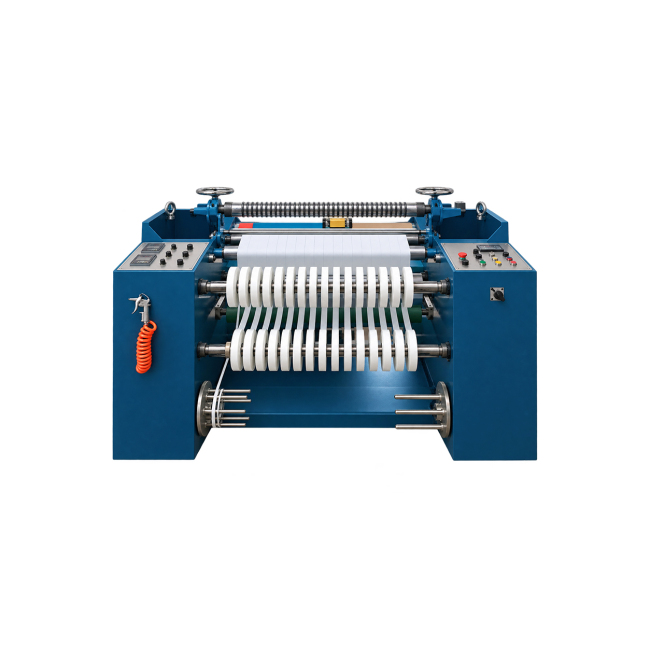

FY800-3000C Nylon Fabric Oxford Fabric Mask Fabric Non Woven Fabric Slitting Machine
FY800-3000C is fabric cutting machine is suitable for slitting Polyester Satin, Nylon Taffeta, Cotton Tape, Polyester Cotton, Polyester Taffeta, Acetate Taffeta, Pongee Fabric, Fabric Satin and other textile, fabric, nylon MATERIAL.
This is our most popular non woven fabric slitting machine, it is suitable to slit and cut Nylon Taffeta, Non-Woven Fabric, Garment Fabric, Melt Blown Fabric and other fabric.
1. Mini Slitting Wdith 10mm.
2.Slitting Width from 10mm-3300mm.
3.Special roller design for better tension control
4.Extral presser roller design make sure the rewind rolls compact and even
5.Heating blade with edge sealing function
6.Used by 173 customers in 25 countries.
7.Stable quality and very reasonable Price
| MODEL | FY800-3000C |
| SLITTING WIDTH | 3200MM |
| UNWINDING DIAMETER | 600MM(MAX) |
| UNWIND CORE SHAFT | AIR SHAFT |
| UNWINDING CORE SIZE | 25.4MM(1 INCH),40MM(1.5 INCH) or 76MM(3 INCH) |
| UINWINDING CORE QTY | 1PC |
| REWINDING WIDTH | MIN.10MM |
| REWINDING DIA. | 300MM(MAX.) |
| REWINDING CORE SIZE | 25.4MM(1 INCH),40MM(1.5 INCH) or 76MM(3 INCH) |
| REWINDING CORE TYPE | AIR SHAFT |
| REWINDING CORE QTY | 2 PCS |
| BLADE TYPE | COLD CIRCLE BLADE |
| BLADE | QTY 40PCS |
| MECHANICAL SPEED | 120M/MIN |
| WORKING SPEED | 30-80M/MIN |
| POWER SUPPLY | 380V, 3 PHASES, 0.6Mpa |
| MACHINE DIMENSION | 2540MM*1700MM*1200MM |
| PACKING DIMENSION | 2700MM*1250MM*1110MM |
| G.W. | 1 TONS |
* Other specifications are offered at request.
