HN1300T Automatic High-Speed Duplex Turret Slitting Machine
HN1300T is one of the latest duplex turret slitting machines, engineered for processing materials including primary film, printed film, laminates, nonwoven fabrics and more. It is a turret slitter rewinder designed and manufactured for non-stop, high-throughput production.

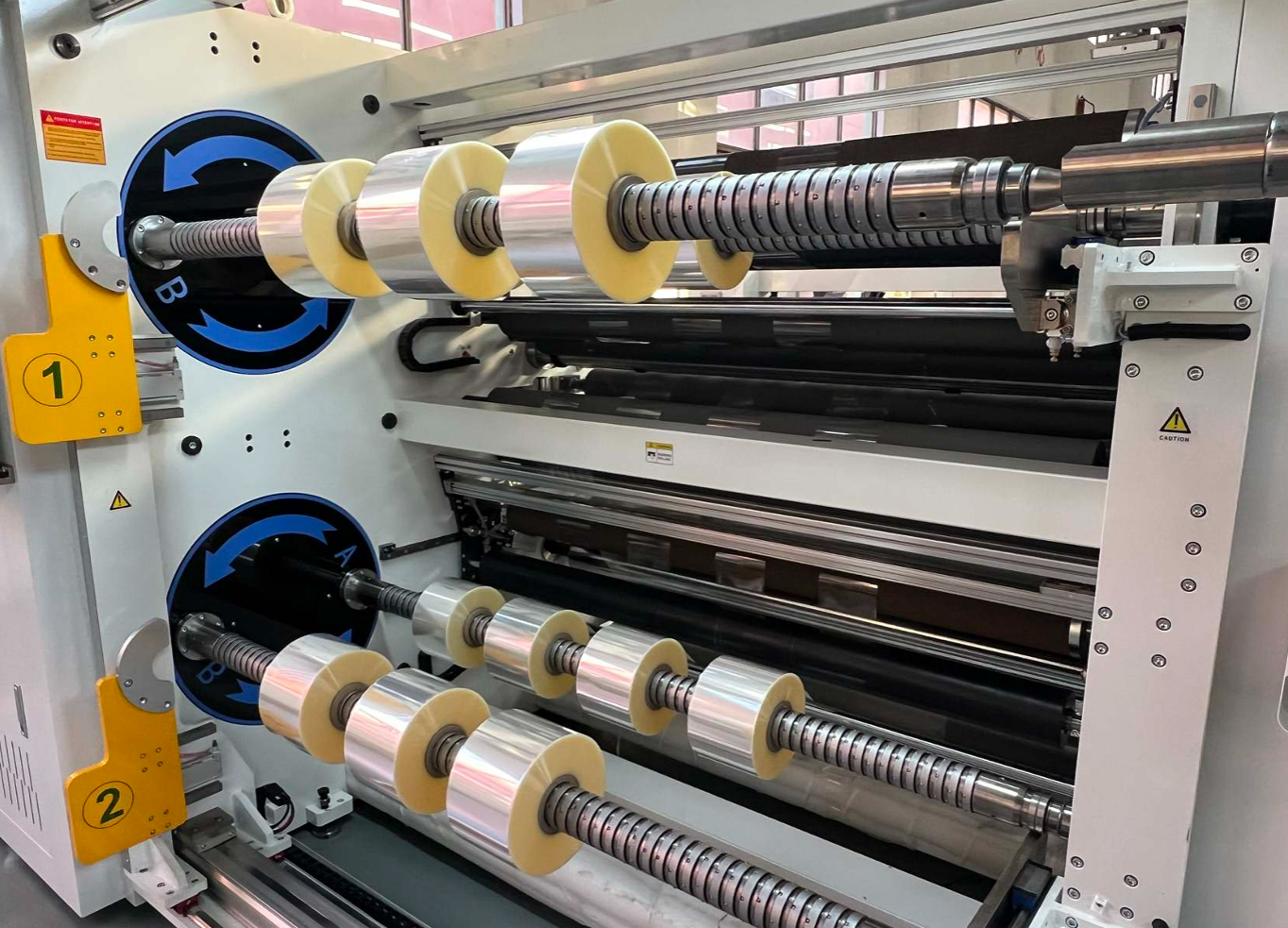

The turret design enables operators to unload finished rolls from one shaft while the machine continues slitting and rewinding material onto the other shaft. The HN1300T is equipped with fully automatic shear circular blades or razor blades, which deliver fast, highly precise blade positioning. An automatic robotic unloading system is available as an optional extra.
The HN1300T Duplex Turret Slitting Machine is our latest new-generation slitter, and it ranks among the most advanced slitting machines manufactured in China.
The HN1300T is a high-precision, high-speed duplex turret slitting and rewinding machine suitable for processing a wide range of materials, including:
- Hot stamping foil, cold foil, holographic foil, metallized foil
- Primary films: BOPP, PVC, LDPE, PET, single silicon films, etc.
- Laminates: film-to-film, film-to-foil, film-to-paper, etc.
- Non-woven fabrics
- Paper, labels, adhesive labels
- Aluminum foil
- Other materials: please consult your sales manager
This machine comes standard with the following configurations: - Automatic shear circular blade or automatic razor blade system
- Robotic unloading function available as an optional accessory
- Closed-loop automatic tension control system
- 3-inch slip friction air shaft to maintain consistent tension
- Pneumatically controlled full-width pressing rollers for wrinkle-free roll surfaces
- Anti-static brushes mounted on both upper and lower pressing rollers
- Laser positioning lights to simplify core mounting and reduce downtime
- Shaftless unwinding system compatible with 3-inch and 6-inch cores for fast jumbo roll changeover
- Hydraulic lifting system capable of loading jumbo rolls weighing up to 1 ton directly from ground level
- EPC edge position controller that tracks material edges or printed registration lines
Safety Design
Operator safety is prioritized in every design detail. All rotating components in the slitting zone are fully enclosed with safety guards and cannot be touched during operation. A laser safety scanner safeguards the rewinding area.Intuitive Control Interface
Multiple control panels are arranged for convenient operation: two touchscreen panels for slitting and rewinding, one fixed panel at the unwinding section, plus a mobile handheld panel for jumbo roll loading.Full Servo Drive System
The machine is equipped with 16 servo motors in total. The main servo motor drives the main drive roller, lay-on rollers, knife shafts and banana roller. An unwinding AC servo motor paired with a dancer roller regulates the master roll tension. The third AC servo motor drives both rewinding shafts, with a fourth servo motor available as an upgrade option.High Operating Speed up to 800 m/min
The machine features a 1300 mm working width. Its standard operating speed reaches 600 m/min, with an optional upgrade for a maximum speed of 800 m/min.Robust & Stable Mechanical Structure
The machine weighs 8 tons overall, constructed with 60 mm thick side frames and 5 heavy-duty cross beams for integral rigidity. These heavy-duty structural components guarantee ultra-stable high-speed operation and an extended service life.
| MODEL | HN1300T |
| Slitting Thickness | 12–200 μm |
| Slitting Width Max | 1300 mm / Min 300 mm |
| Unwinding Diameter Max | 1300 mm |
| Unwinding Type Shaftless | 3" and 6" |
| Unwinding Brake | Air brake |
| Rewinding Width | Min 35 mm |
| Rewinding Diameter | Max 600 mm |
| Rewinding Shaft | 3" slipping friction air shaft |
| Slitting Unit | Razor blade + circle blade |
| Mechanical Speed | Max 650 m/min |
| Working Speed | Max 600 m/min |
| Waste Edge System | Air blower |
| Laser Position Lights | 10 pcs |
| Power Supply | 380V, 3-phase, 50Hz |
| Air Supply | 0.7 MPa (min) |
| Net Weight | 8000 kg |
* Other specifications are offered at request.
