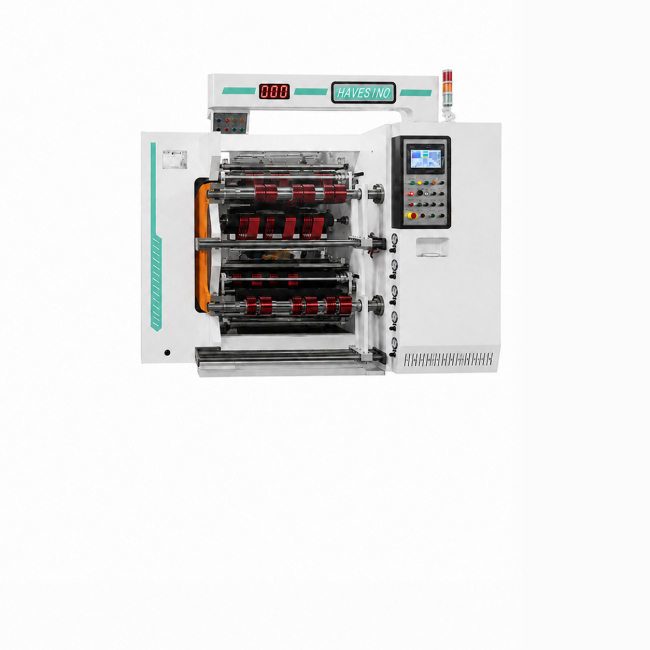

Hot Stamping Foil Slitter Rewinder HN800
800mm Hot Stamping/Metalized Foil Slitter Rewinder
PriceShow price after login
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
APPLICATION
A.
12-180um HOT STAMPING FOIL,COLDING FOIL,HOLOGRAPHIC FOILS,METALIZED FOIL and so on
B.
12-180um PRIMARY FILM (BOPP,PVC,LDPE,PET,SINGLE SILICON FILM and so on)
C.
12-180um LAMINATES (FILM to FILM,FILM TO FOIL,FILM TO PAPER and so on)
D.
Non-Woven FABRIC
E.
40-80gram PAPER/LABEL/ADHESIVE LABEL
AND OTHER MATERIAL (PlS CHECK WITH THE SALES MANAGER)
BASIC SPECIFICATION
| SLITTING WIDTH | 300mm-800MM |
| SLITTING THICKNESS | 12-250UM |
| UNWIND DIA. | MAX800MM OPTIONAL:1000MM |
| UNWIND CORE I.D. | SHAFTLESS 3 INCH AND 6 INCH |
| REWINDING DIA. | MAX 600MM |
| REWINDING WIDTH | MINI 30MM |
| REWINDING CORE I.D | 3 INCH AIR SHAFT+1 INCH AIR SHAFT OPTIONAL: 6" AIR SHAFT, 3" OR 6" DIFFERENTIAL FRICTION AIR SHAFT |
| SLITTING UNIT | RAZOR BLADE OPTIONAL: SHEAR BLADE （ EASY SET SHEAR BLADE SYSTEM) |
| MECHANICAL SPEED | MAX450M/MIN |
| WORKING SPEED | MAX400M/MIN |
| MACHINE FRAME THICKNESS: | 50MM |
|---|---|
| METER COUNTER: | METER COUNTER |
| WASTE EDGE UNIT: | AIR BLOWER |
| POWER SOURCE | 380V,3 PHASE 4 WIRES,50Hz |
| PNEUMATIC SOURCE | 0.7MPA |
| LASER POSITIONING | 8 PCS |
| MACHINE SIZE (REF. ONLY): | 2450mm(not including unloading frame tree)×2550mm×1970mm 3690mm(including the unloading frame tree)×2550mm×1970mm |
| FLOOR SPACE(REF.ONLY): | 3700MM*3300MM |
| N.W/G.W (REF. ONLY): | 3000/3500 |
FUNCTIONAL DESCRIPITION
Rewinding:
1.
2 pcs 3" Air Shafts and 2 pcs 1" Air Shaft can rewind both 1" and 3 inch rolls;
2.
Full width pressing rollers by air control to ensure the finished roll surface keep smooth;
3.
Manual laser core position units help to set paper/plastic cores easily and quickly, begin next slit run with very short downtime.
Blade Unit:
1.
Razor blade slit + Shear blade slit( only for both system) Razor and Shear blade system changes by removing the razor blade shaft out and put on the up shear blade shaft. Down blade system do not need to change. (Only for Optional with both Shear and Razor blade system).
2.
Razor blade setting easily setting by wrench losing and fixing, very quick and easy;
3.
Shear Blade system: up blade is using self-locking blade, it can easily move and fix by the screw; down blade setting by air shaft system, lose and fix the blade through the air deflating and filling, saves 50% time than the traditional way; (Only for Optional with Shear Blade system)
Razor Blade System Air Shear Blade System (Optional)Unloading:
1.
Manual finished roll unloading tree to help unload finished rolls conveniently;
Unwinding:
1.
Air Brake with load cell close loop system for unwind tension control
2.
3 inch and 6 inch shaftless uwinding system, easily change the jumbo roll;
3.
Hydraulic lifting system to help the operator loading the jumbo roll max. 1 ton from floor;(Optional)
4.
Material splice table, easy change and guarantee edge consistency
5.
EPC ultrasonic edge guider to avoid the influnce from shinning materia which reflect light back;
6.
Splice tabel to help operator make joint easily when change jumbo roll ;
Other points:
1.
Trim sytem: lower noise air blower to ensure the stability of blowe the trim material out;
GUARANTEE AND SERVICE
1.
100% Test and Check Before Shipment.
2.
Detailed Instruction Manual.
3.
One Year Guarantee for All Key Parts..
4.
Installing and Operator Training Service Provided.
5.
Whole-Life Free Technical Support.
6.
Regular On-Site Routine Inspection.
