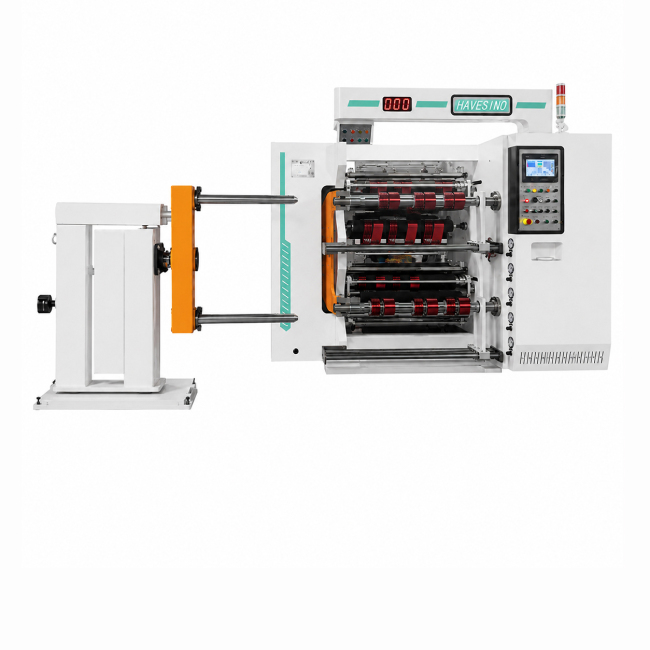

HN800 PLUS Slitting Machine Hot Stamping Foil Slitter Rewinder
The HN800 Plus Hot Stamping Foil & Cold Foil Duplex Slitter Rewinder is a professional slitter designed for processing hot stamping foil, cold foil, metallized foil, laser foil, graphic foil and other coated foils.
It runs at a maximum speed of 800 m/min, with a minimum slitting width of 8 mm. It supports slitting for both 1-inch and 3-inch core rolls, and is compatible with both shear circular blades and razor blades. All these features greatly boost its slitting efficiency.
Its direct horizontal pressing rollers enable the machine to produce perfectly uniform finished rolls even at maximum operating speeds.
The HN800 Plus adopts the internationally universal and popular direct-push pressing roller structure. This roller design delivers consistent and stable pressure output. Even at a running speed of 800 m/min or with narrow slitting widths, it maintains excellent winding stability.

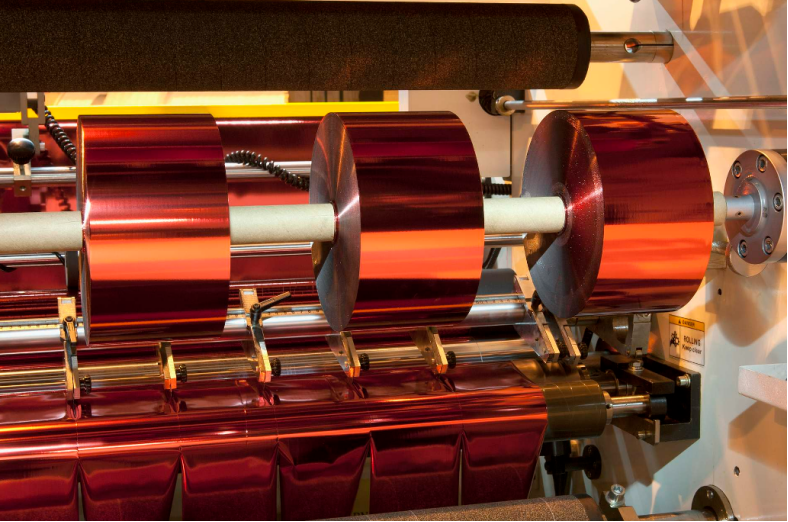

Equipped with custom curved shear circular blades and razor slitting systems, this compact and sophisticated machine handles not only hot stamping foil, cold foil and metallized foil, but also regular films, printed films, laminated films, paper and self-adhesive labels.
In summary, this slitter rewinder features outstanding cost performance, stable operation and high running speed. It stands as a top choice for the hot stamping foil slitting industry.
1）Direct-push pressing rollers deliver superior stability at high speeds, supporting a minimum slitting width of 8 mm.
2）Custom large shear circular blades and razor cutters generate nearly zero dust when slitting hot stamping foil, and are compatible with a wide range of materials.
3）Compact space-saving design: this 800 mm-width machine occupies minimal floor space yet delivers high output.
4）Equipped with differential air shafts for both 1-inch and 3-inch cores to process rolls of both sizes.
5）High speed & high productivity, with a maximum running speed of 800 m/min.
6）Cost-effective, offering premium quality at an affordable price.
7）Full closed-loop tension control system; the machine automatically adjusts tension for easy operation.
8）Full servo motor control ensures precise and responsive tension regulation.
9）50 mm thick high-quality wall plates and base frame make the machine solid and stable.
10）Dual system of air-expansion shafts and differential shafts enables slitting of both thin and thick materials.
| MODEL | HN1600HSF |
| Slitting Thickness | 6-300um |
| Unwinding Width | 300-800mm |
| Max Unwinding Diameter | 800mm（optional 1000mm) |
| Unwinding Type | 3/6-inch shaftless |
| Unwinding Brake | Magnetic powder brake |
| Min Slitting Width | 40mm |
| Max Winding Diameter | 600mm（optional 800mm） |
| Winding Shafts | 3-inch friction shafts+1-inch air shaft |
| Slitting Knives | Razor blade+shear circle blade |
| Mechanical Speed | Max 650m/min |
| Working Speed | 600 m/min |
| Waste Handling | Waste edge blower system |
| Positioning Device | Manual laser positioning light |
| Meter Counter | wheel meter counter |
| Power Supply | 380V 3-phase 50Hz |
| Air Supply | Min 0.6Mpa |
| Net Weight | 3500KG |
| Dimensions | 2960×2270×2150mm |
| Wall Thickness | 50mm |
| Certification | CE compliant |
* Other specifications are offered at request.
