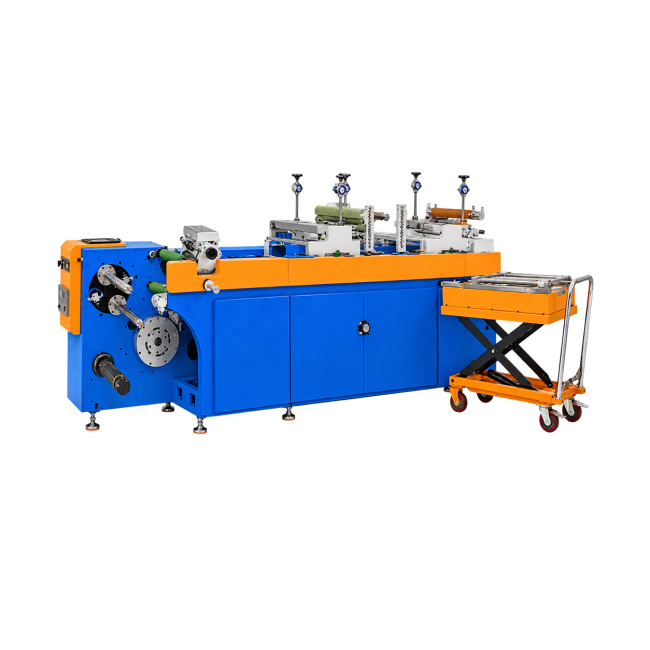

LR330-570 SD Automatic Digital Small Label Rotary Die Cutting Slitting Rewinder Vinyl Sticker Blank Label Die Cutting Machine

This adhesive label roll slitter rewinder machine widely used in slitting all kinds of label rolls:Adhesive label,Thermal Transfer Tape, BarcodeSticker,Inkjet Roll Labels, Printed Labels and so on. Our adhesive label roll rotary die cutter with slitting rewinding machine can cut any label on the market, such as: drug labels, food labels, wine labels, battery labels, outer box labels, shampoo labels, barcode labels, temporary labels for semi-finished products, etc.

Message

$??.00

Have chosenThere are no options selected.

Add To Cart Successfully!

SEND INQUIRY

LR330-570 SD Automatic Digital Small Label Rotary Die Cutting Slitting Rewinder Vinyl Sticker Blank Label Die Cutting Machine

This adhesive label roll slitter rewinder machine widely used in slitting all kinds of label rolls:Adhesive label,Thermal Transfer Tape, BarcodeSticker,Inkjet Roll Labels, Printed Labels and so on. Our adhesive label roll rotary die cutter with slitting rewinding machine can cut any label on the market, such as: drug labels, food labels, wine labels, battery labels, outer box labels, shampoo labels, barcode labels, temporary labels for semi-finished products, etc.

LR330SD is a die cutting machine, extremely efficient and precise for high volume of blank labels production.


Each rewinder, unwinder and waste rewinder tensions are fully independent and adjustable in the HMI touch screen. Once the tension is set, there is no need for the operator to readjust the tensions. It is a sturdy machine combined with the latest high technology. This model has a very high work precision and produces excellent quality of finished rolls.

1. Dual function (die cutting and slitting) system


2. Duplex rewiding station.


3. Electronic web guide


4. Mechanical spring loaded Brake & Clutch.


5. Label count/mtrs count with batch over stop.


6. Movable slitting trolly.


7. Suppour 1"-3" core mandrel.


8. Automatic deviation correction system

MODEL LR330-570 SD
Max Paper Width 330-570 mm
Min Paper Width 100mm
Min Die Cutting Width 15mm
Max Unwinding Diameter 780mm
Max Die Cutting Rewind Diameter (1 roller) 630mm
Max Slitting Rewind Diameter (2 turret rollers) 300mm/pc
Max Slitting Speed 180m/min
Max Die Cutting Speed 150m/min
Total Power 3KW
Main Power 2.2KW
Power Voltage 380V
Machine Dimension (LWH) 2500*1520*1650mm
Net Weight (NW) 1700KGS
Gross Weight (GW) 2000KGS
Packing Size (Wooden Box) 2600x1700x2100MM

* Other specifications are offered at request.
