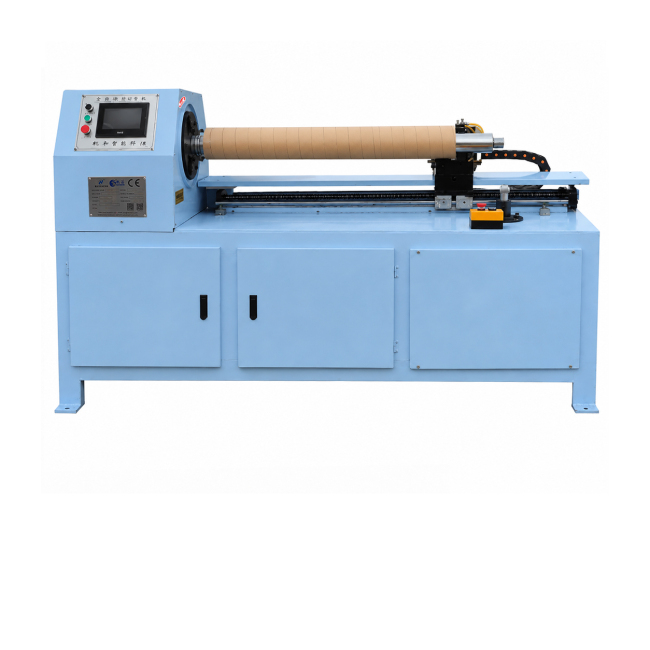

Automatic Paper Tube Cutting Machine CC1100/1300/1500/1800AS

CC1100AS is a Semi Automatic Paper Tube Cutting Machine, it can cut the paper core inner diameter from 1 inch to 6 inch, wall thickness from 1-18mm. The cutting length from 1000mm till 2000mm. It is fast and easy operation and cost effective.

Message

Send

$??.00

Have chosenThere are no options selected.

Order After Login

Add To Cart Successfully!

SEND INQUIRY

Automatic Paper Tube Cutting Machine CC1100/1300/1500/1800AS

Name: Automatic Paper Tube Cutting Machine CC1100/1300/1500/1800AS
Brand: HAVESINO
SKU: CC1100AS

Description GENERAL SPECIFICATIONS Download

Automatic Paper Tube Cutting Machine

CC1100AS CC1200AS CC1300AS CC1500AS CC1800AS CC2000AS

HAVESINO CC Paper Core Cutting Machine

Semi Automatic Paper Tube Cutting Machine

标准技术参数：		Basic Specification
可切管直径范围	25-152mm	Cutting Tube diam	25-152mm（1-6 Inch)
切管长度	20-1300/1500/2000mm	Cutting Tube length	20-1100/1200/1300/1500/1800/2000mm
切刀方式	数控双圆刀对切	Cutter way	One circle knife
可切纸管厚度	1-15mm	Tube thickness	1-18mm(Optional:10-20mm)
切刀进刀方式	伺服进刀	Cutting move way	Servo
切割纸管方式	纸管旋转	Paper tube way	Paper tube rotate
纸管夹紧方式	自动卡盘	Paper clamping way	Auto
进管/卸管方式	自动	Paper loading/unloading	Auto
装管/卸尾料方式	手动	Paper loading/unloading clouts	manual
操作人数	1人	Operator	1 person
机械速度	50次/分钟	Mechanical speed	50/minute
料尾浪费长度	30mm	Tail waste length	30mm

电控配置		Mini Cutting Width	10mm
主机功率	3.0千瓦	Mainframe power	3.0 kilowatt
变频器	信捷	Inverter	Mitsubishi
PLC控制器	信捷	PCL controller	Xinjie China
触摸屏	信捷	Touch screen	Xinjie China
伺服电机	国迈	Servo motor	GUOMAI CHINA
电眼	国产	Electric eye	CHINA BRAND
调速控制	变频器	Speed control	Inverter
输入电压	三相四线380V	Working volt	380V(3P)
进管/卸管控制	伺服电机	Paper loading/unloading control	Servo motor
