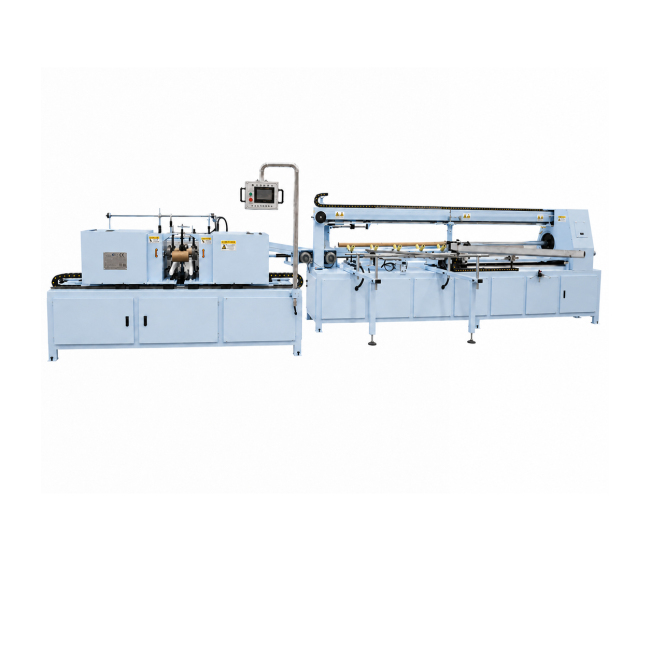

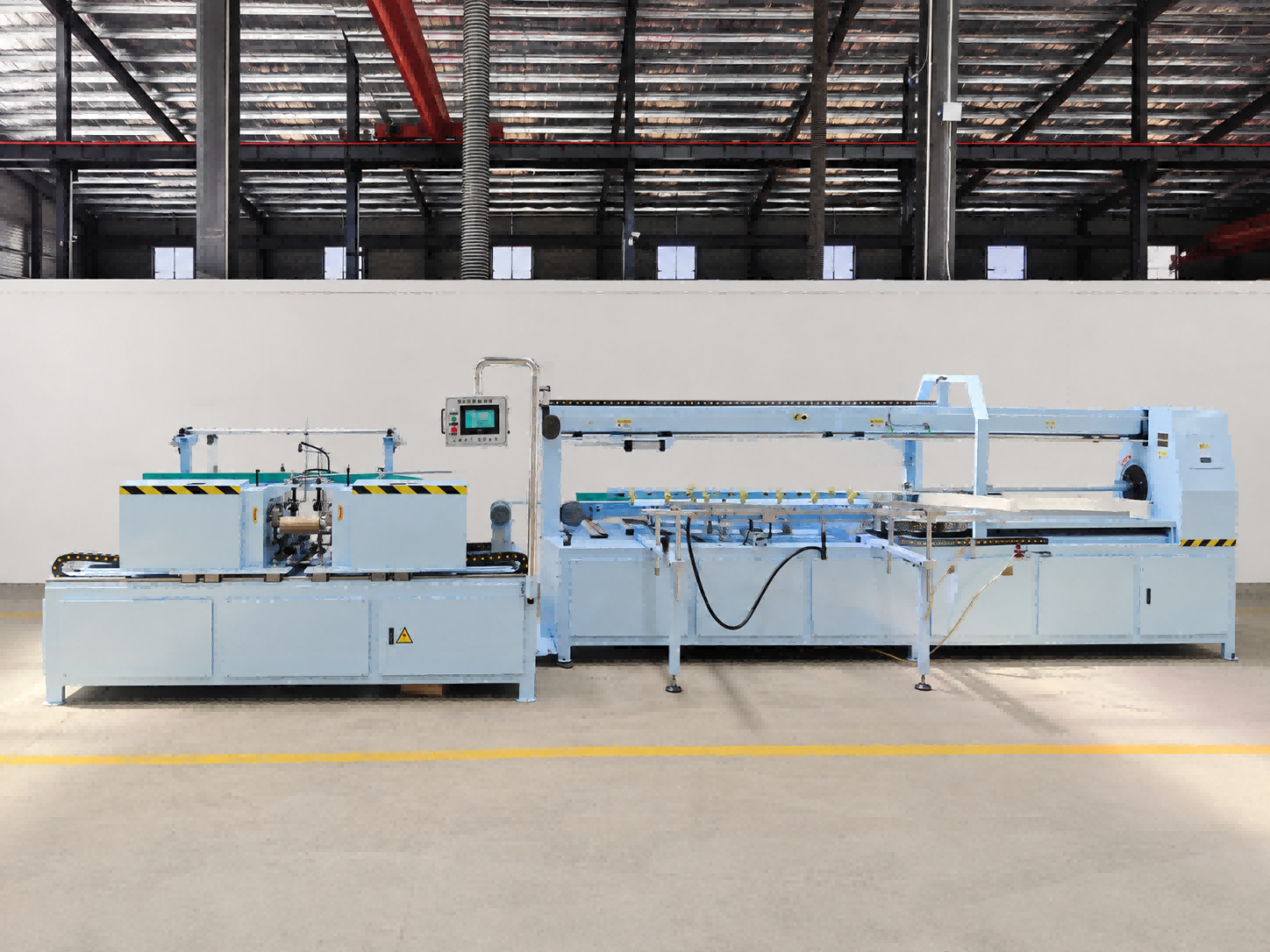

3-6 Inch Automatic Paper Tube Cutting Machine
The CCFAJ-S series paper core cutter machines represent an outstanding line of paper core cutters.
Developed to meet customer demands for full-automatic functionality at a reasonable price, this series strikes an optimal balance between fully-automatic performance and affordable cost, making it a high-cost-performance automatic tube cutter.
These machines feature simple installation, user-friendly operation and quick maintenance, integrating paper tube cutting and end-facing functions in one unit.
It processes paper tubes with cutting lengths ranging from 500 mm to 3600 mm, and accommodates various inner diameters from 3-inch to 6-inch.
As our best-selling paper tube cutter at present, this series is the ideal choice for cutting paper cores used in flexible-material slitting applications.
The CCFAJ-S series paper core cutter delivers excellent cost-performance. It cuts paper tubes from a minimum length of 500mm up to 3600mm.
It handles inner diameters from 3-inch to 6-inch and wall thicknesses from 1mm to 18mm. This fully-automatic cutter works with paper tubes of many different sizes.
As a single-blade fully-automatic paper core cutter, it comes with the following features:
Automatic paper tube loading. Operators only need to place raw paper tubes onto the loader, and the machine will feed tubes in for cutting automatically.
Automatic unloading. Once cutting is finished, finished tubes drop onto the conveyor and move to the next production step.
Tube-end grinding. It cleans paper scraps off both ends of tubes, preventing dust and paper debris from contaminating your slit materials.
Custom-length setting on the touchscreen. The machine cuts tubes automatically to whatever length you enter.
Batch-count function. Set your target quantity, and the machine will stop automatically once finished.
Memory storage. It saves up to 5 groups of cutting-width and quantity parameters. You can recall saved settings with one-click on next startup.
Superior safety design. The cutter blade and shaft stay stationary; only the paper tube spins. This greatly reduces potential safety risks.
Re-usable cutting blade, which significantly lowers your consumable-part costs.
All in all, this is a fully-automatic, high-value, all-in-one paper tube cutting machine.
- Automatic paper tube loading
- Automatic unloading of finished cut paper tubes
- Tube-end grinding to remove paper scraps and dust from both tube ends
- High-level automation for unattended operation
- Stationary cutter head and shaft, greatly reducing safety hazards and cutting operating costs
- Maximum cutting length up to 3600 mm for paper tubes
- Maximum paper tube inner diameter of 6-inch
- Simple operation, easy maintenance and robust durability
- Compatible with paper tubes of various sizes, inner diameters and wall thicknesses
- Excellent cost-performance
| MODEL | CC1000-2500FAJ |
| Tube Inner Diameter | Ø25.4–76 mm (Optional: 76–152 mm) |
| Tube Length | Max 2000 mm |
| Tube Thickness | 1–15 mm |
| Cutting Method | Circle knife |
| Cutting Drive | Servo motor |
| Tube Feeding | Tube rotation |
| Clamping Method | Automatic |
| Loading/Unloading | Automatic |
| Min Cutting Length | 10 mm |
| Cutting Tolerance | ±0.2 mm |
| Mechanical Speed | 40 cuts/min |
| Operator Required | 1 person |
* Other specifications are offered at request.
