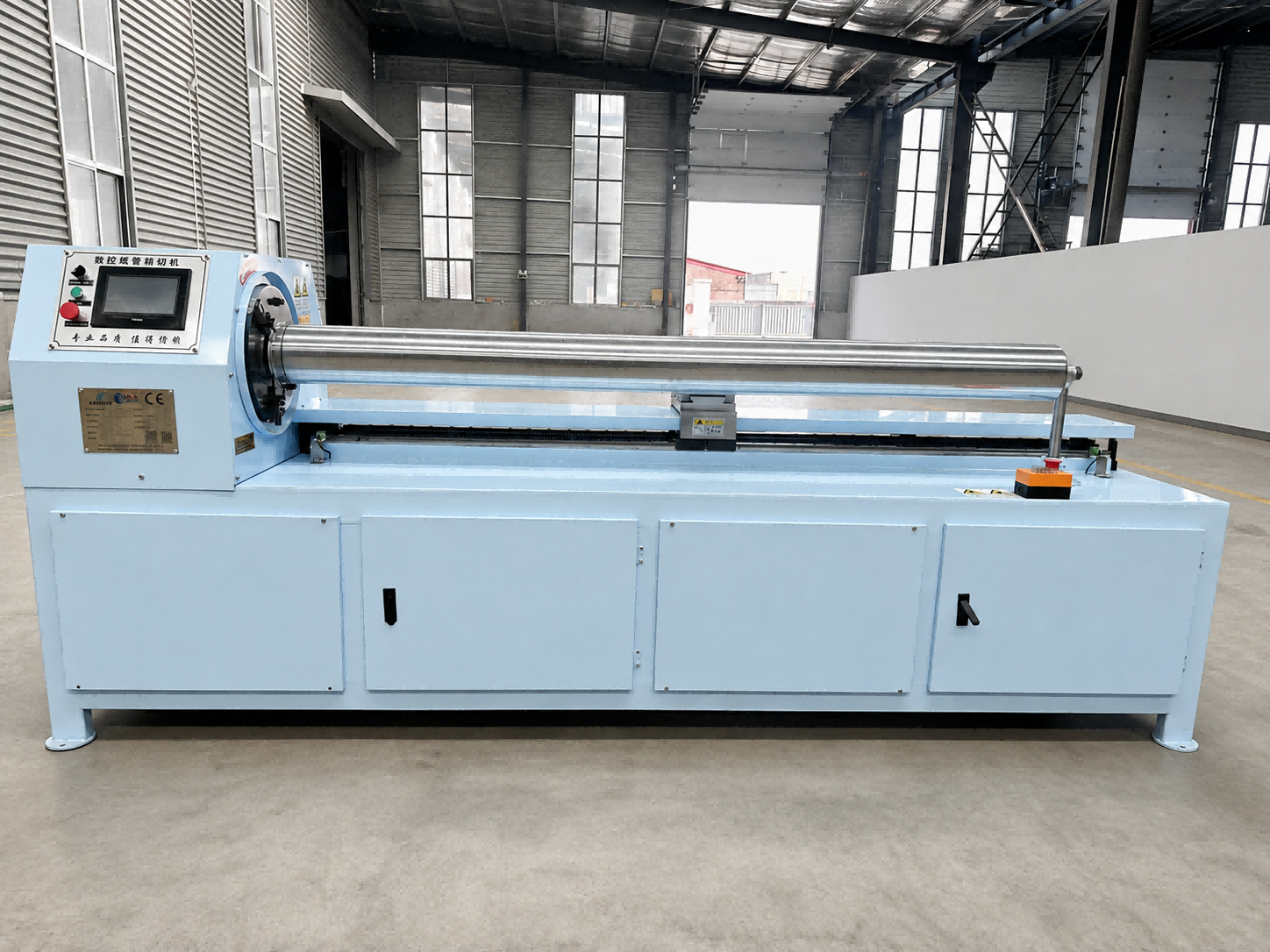

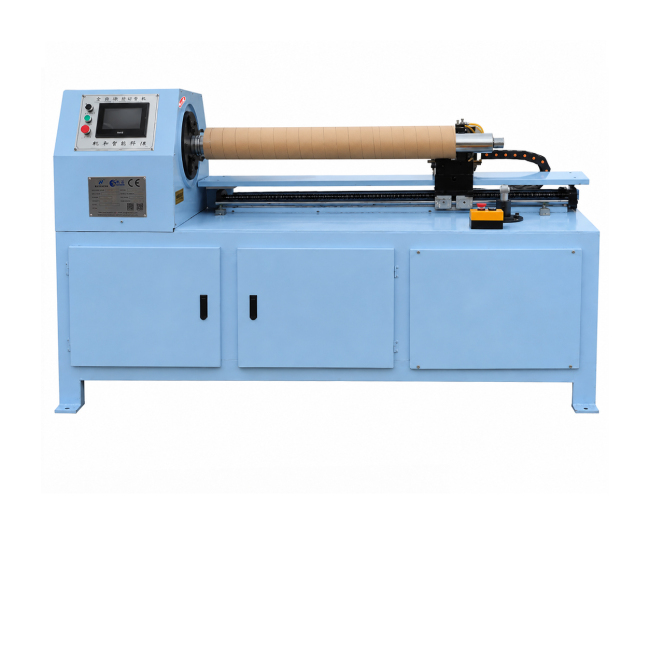

1-inch to 6-inch Servo Paper Tube Cutting Machine
The CCAS-series paper tube cutting machine is a single-blade semi-automatic cutter equipped with servo-motor control. Built for easy operation and high-precision cutting, this servo-driven paper tube cutter brings outstanding cost-performance for your production.
Widely adopted across printing, packaging, label processing, non-woven fabric, adhesive tape and paper tube manufacturing sectors, it serves as an indispensable core machine for paper tube cutting applications.
This is one of our best-selling paper tube cutting machines, specially engineered for applications requiring precise and high-efficiency paper tube cutting.
It handles cutting lengths ranging from 500mm to 3000mm, with a minimum cutting width of 10mm, and supports paper tubes from 1-inch to 6-inch.
Boasting user-friendly operation, the machine runs fully automatically once you set the target cutting length and quantity on the touch screen.
Equipped with a servo-driven cutting system, it achieves outstanding length-control accuracy of ±0.2mm.
Rotating paper tubes paired with an automatic clamping mechanism deliver stable, burr-free cutting results.
Even thick-walled paper tubes with wall thickness of 1-18mm can obtain clean cut surfaces with its single-circular blade.

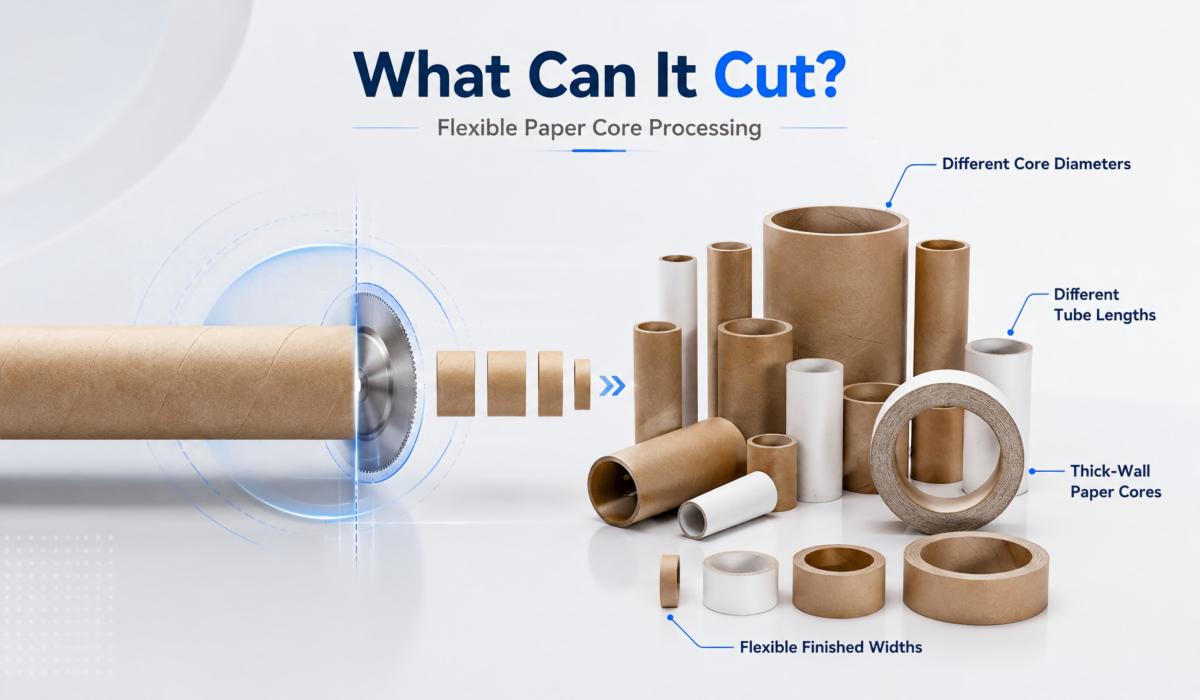

What Can It Cut?
Flexible Paper Core Processing
Designed to handle a wide range of paper core specifications for different production needs.
- Different Core Diameters
- Different Tube Lengths
- Thick-Wall Paper Cores
- Flexible Finished Widths
Send us your paper core specs for solution confirmation.

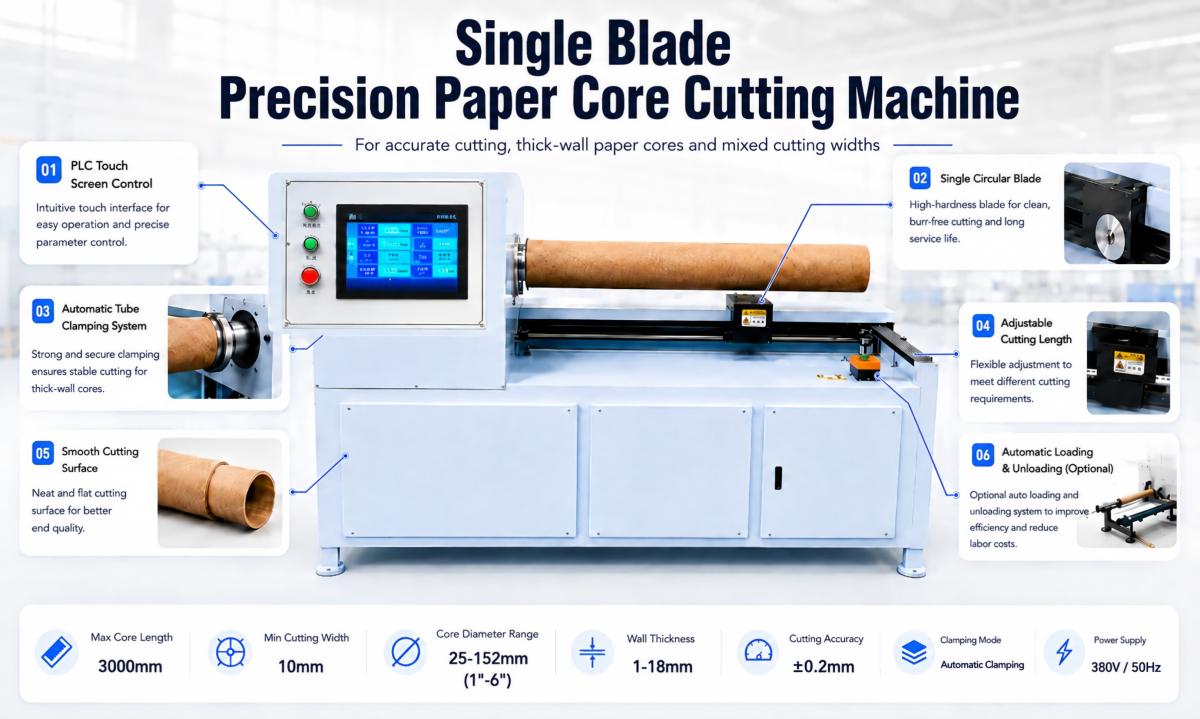

Key Features
Servo-Driven Cutting: Max cutting length up to 3000mm, high cutting accuracy of ±0.2mm
Automatic Tube Clamping: Secures workpieces during cutting for smooth and flat cut surfaces
Wide Compatibility for Diameter & Wall Thickness: Fits tube diameters 25-152mm, wall thickness 1-18mm
Automatic Loading & Unloading: Cuts labor costs and boosts production efficiency (optional)
Burr-Free Cutting: Single-circular blade ensures neat and clean cut surfaces
All in all, this is a highly cost-effective paper tube cutting machine worthy of your investment.

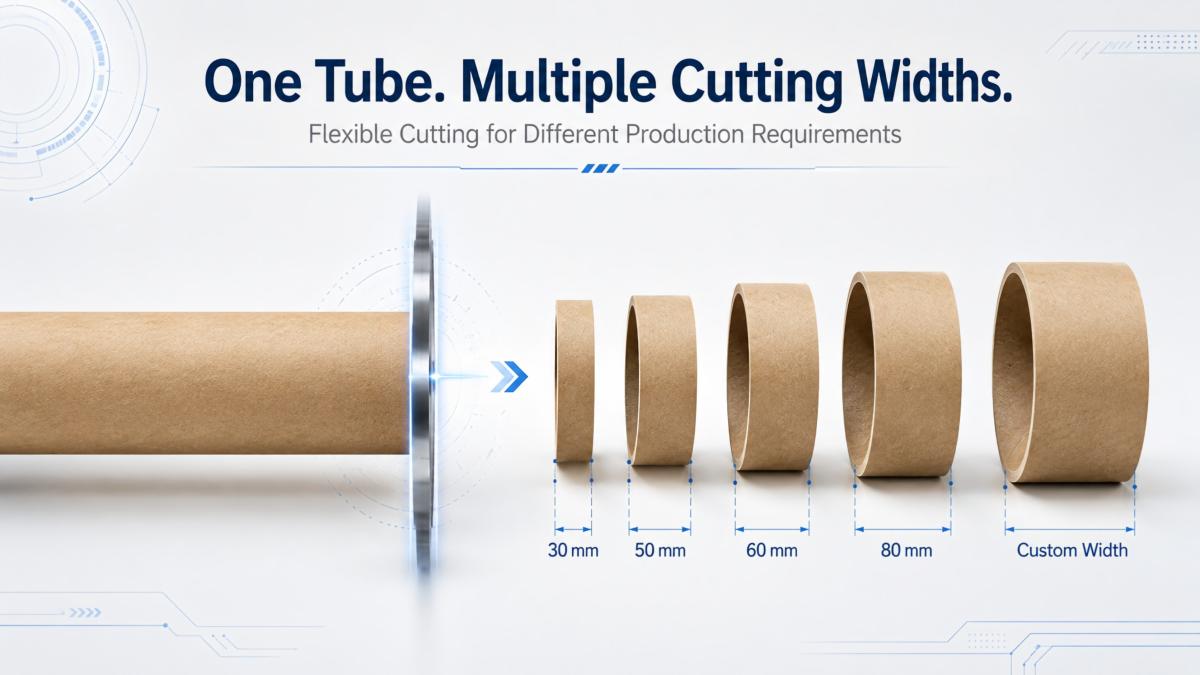

Flexible Cutting for Different Production Requirements
Cut different finished widths on the same paper tube to meet changing production needs.
30 mm · 50 mm · 60 mm · 80 mm · Custom Width
Flexible Sizes. More Production Possibilities.

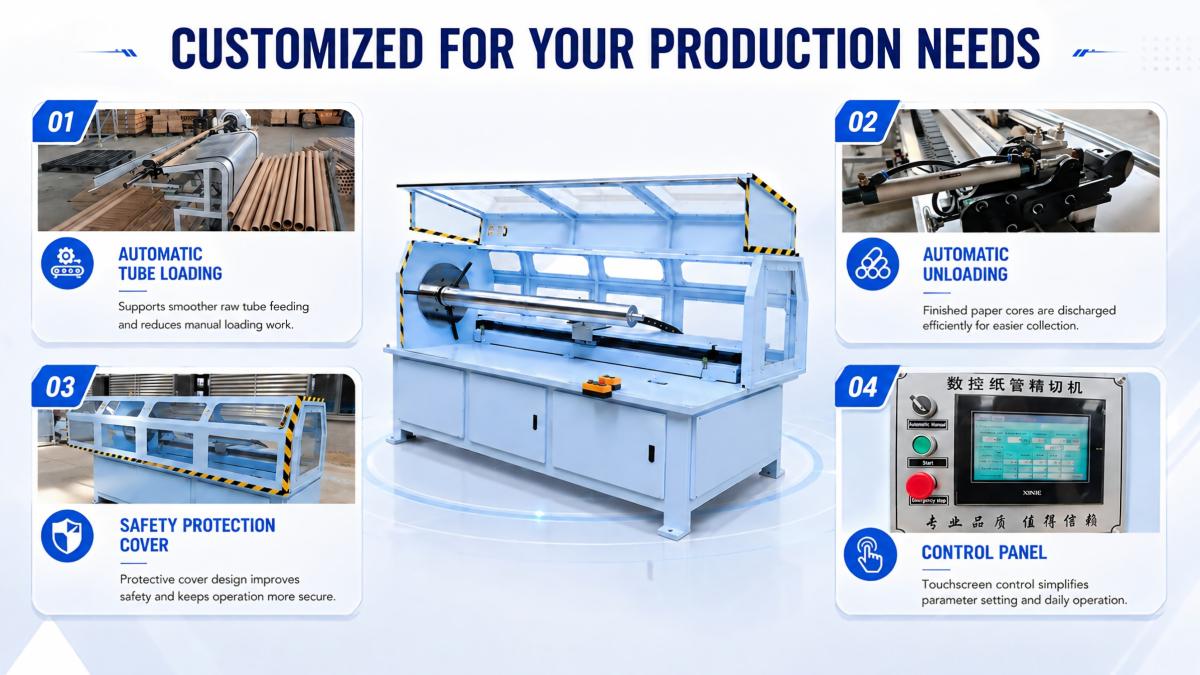

CUSTOMIZED FOR YOUR PRODUCTION NEEDS
01 Automatic Tube Loading
Automatic Tube Loading
Supports smoother raw tube feeding and reduces manual loading work.
02 Automatic Unloading
Automatic Unloading
Finished paper cores are discharged efficiently for easier collection.
03 Safety Protection Cover
Safety Protection Cover
Protective cover design improves safety and keeps operation more secure.
04 Control Panel
Control Panel
Touchscreen control simplifies parameter setting and daily operation.

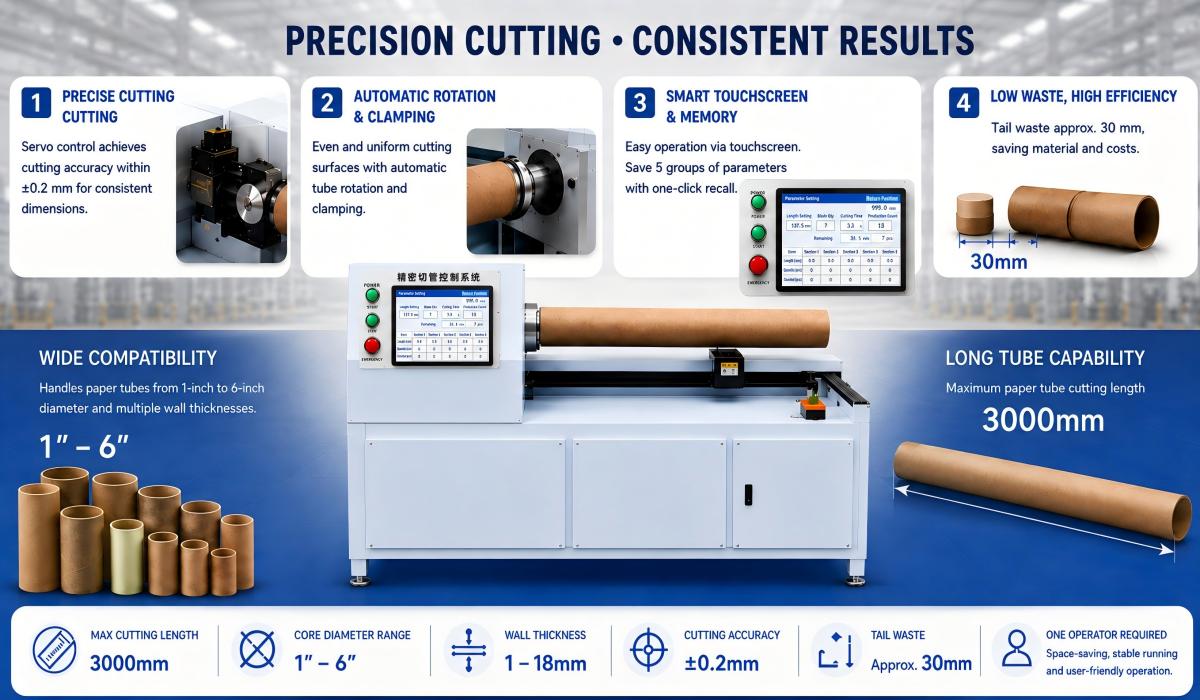

- Servo-motor control achieves superior cutting accuracy within ±0.2 mm for consistent paper tube dimensions.
- Automatic paper tube rotation and clamping mechanism guarantee even, uniform cutting surfaces.
- Broad compatibility to process paper tubes ranging from 1-inch to 6-inch for diverse production needs.
- Maximum paper tube cutting length up to 3000 mm, ideal for long-tube processing applications.
- Fully automatic operation: input desired cutting length and quantity via touchscreen, the machine executes cutting automatically.
- Built-in memory function saves 5 groups of cutting parameters. One-click recall of historical settings eliminates repeated manual setup.
- Accommodates multiple paper tube diameters and wall thicknesses; only one operator is required for operation.
- Space-saving compact structure, stable running performance and user-friendly operation.
- Low tail waste (approx. 30 mm), effectively reducing raw-material consumption and production costs.
- Reliable build quality at competitive pricing, delivering outstanding cost-performance for paper tube cutting production.
| MODEL | CC1000-3000AS |
| CUTTING TUBE DIAMETER | 25–152 MM (1–6 INCH) |
| CUTTING TUBE LENGTH | 10–3000 MM |
| CUTTER TYPE | ONE CIRCLE KNIFE |
| TUBE THICKNESS | 1–15 MM |
| CUTTING MOTION | SERVO |
| TUBE ROTATION | PAPER TUBE ROTATE |
| TUBE CLAMPING | AUTO |
| LOADING/UNLOADING | AUTO |
| LOADING/UNLOADING CLOUTS | MANUAL |
| OPERATOR | 1 PERSON |
| MECHANICAL SPEED | 50 / MIN |
| TAIL WASTE LENGTH | 30 MM |
* Other specifications are offered at request.
