HN1300 HSF PLUS Slitting Machine Hot Stamping Foil Slitting Rewinding
HN1300HSF Plus Slitter Rewinder – High-Precision & High-Efficiency Hot Stamping Film Slitter
The HN800HSF Plus Slitter Rewinder features a 600m/min speed, Siemens PLC control, and a unique Low-Waste Slitting System. Minimize material waste and slit down to 40mm with high-precision & high-efficiency servo control for clean, burr-free edges.

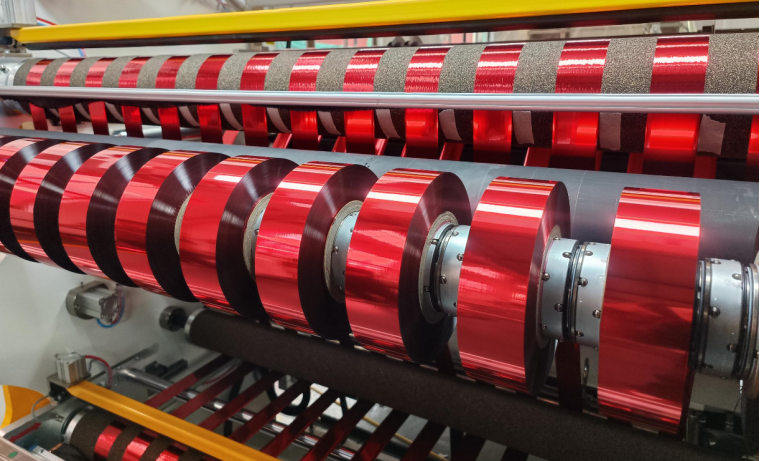

HN1300HSF Plus is a professional slitter rewinder engineered for high-precision & high-efficiency hot stamping film processing. Operating at a stable maximum speed of 600m/min, it integrates a Siemens PLC intelligent control system and a dedicated material-saving slitting mechanism. Equipped with high-precision & high-efficiency servo drive technology, the machine effectively minimizes raw material waste, achieves precise slitting down to 40mm (optional 25mm), and delivers clean, burr-free edges—making it an ideal solution for premium hot stamping film production lines seeking both productivity and quality.
1.High-Speed Performance : Stable running speed of 600m/min for consistent daily output
2.Low-Waste Slitting System : Precise EPC edge guide and tension control reduce material loss to maximize yield
3.Siemens PLC Control System : Full Siemens PLC and user-friendly touch screen for precise, reliable operation
4.Servo-Driven Precision : Independent servo motors ensure synchronized tension control and superior winding quality
5.Narrow Slitting Capability : Slit down to 40mm with clean, burr-free edges for premium finished rolls
6.Magnetic Blade Holders : Quick-adjust magnetic system allows rapid width changes, reducing machine downtime
7.Auto Tension Control : Intelligent closed-loop system maintains perfect tension from start to finish
8.Shaftless Unwinding : 3/6-inch hydraulic shaftless design handles 1000KG jumbo rolls easily
| MODEL | HN1600HSF |
| SlittingThickness | 6-300μm |
| Unwinding Width | 300-800mm |
| Max Unwinding Diameter | 800mm（optional 1000mm） |
| Unwinding Type | 3/6-inch shaftless |
| Unwinding Brake | Magnetic powder brake |
| Min Slitting Width | 40mm |
| Max winding Diameter | 600mm（optional 800mm） |
| Winding Shafts | 3-inch friction shafts+1-inch air shaft |
| Slitting Knives | Razor blade+shear circle blade |
| MECHANICAL SPEED | Max 650m/mlm |
| Working Speed | 600 m/min |
| Waste Handling | Waste edge blower system |
| Positioning Device | Manual laser positioning light |
| Meter Counter | wheel meter counter |
| Power Supply | 380V,3-phase,50Hz |
| Air Supply | Min 0.6Mpa |
| Net Weight | 3500 KG |
| Dimensions | 2960×2270×2150mm |
| Wall Thickness | 50mm |
| Certification | CE compliant |
* Other specifications are offered at request.
