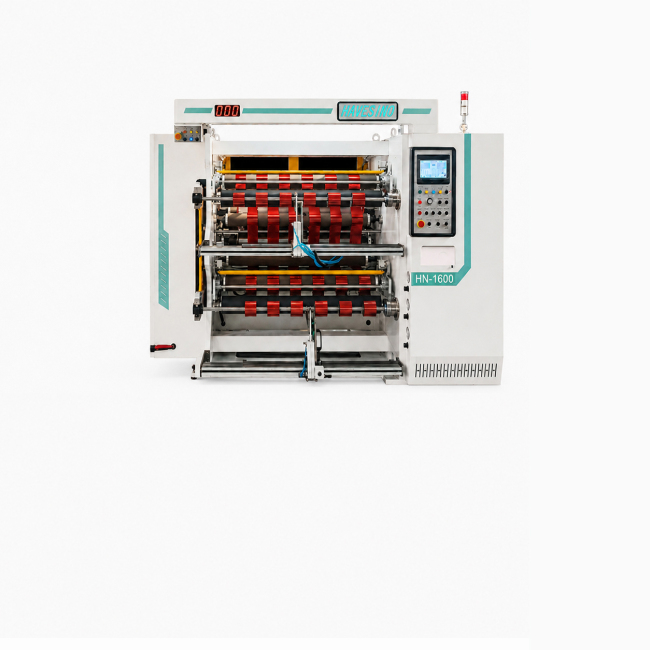

HN1600HSF Hot Stamping Foil Duplex Slitter Rewinder

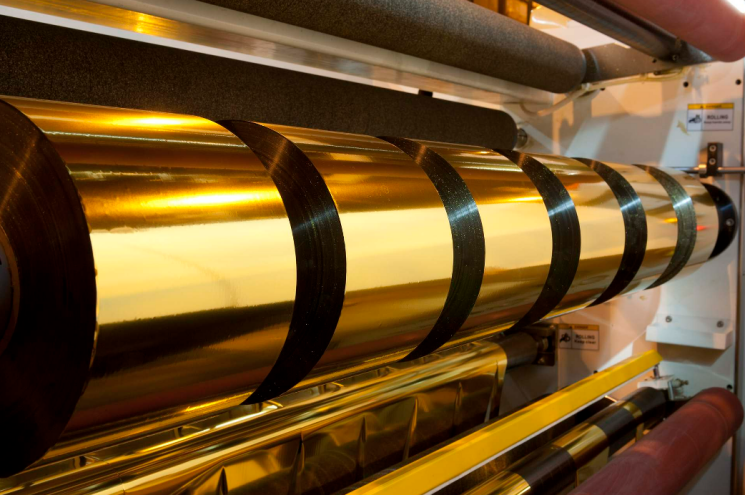

The HN1600HSF slitter rewinder is tailor-made for the hot stamping foil industry. Developed specifically to match the operational characteristics of hot stamping foil production, it is capable of slitting various Hot Stamping Foils, Cold Foils and Holographic Foils, and is compatible with nearly all types of foils widely used in the market. Boasting high cost performance, fast operating speed and user-friendly operation, this machine supports both 1-inch and 3-inch winding cores. It features a unique circular shear blade design that effectively reduces slitting dust, with multiple optional dust extraction and removal systems available. All these advantages make this machine an essential piece of equipment for hot stamping foil manufacturers.
The HN1600HSF hot stamping film slitting machine features high cost performance and versatile processing capacity. It supports a maximum slitting width of 1600mm, a top speed of 500m/min and a minimum slitting width of 35mm. Equipped with 1/3-inch rewinding shafts and a custom circular & razor dual-knife system, it is widely applicable to hot stamping films, cold films, laser films and various functional films.
Main Features:
- Dual independent rewinding motors ensure stable tension and excellent rewinding quality.
- Adopts 1-inch air expansion shaft & 3-inch slip shaft dual system for flexible dual-spec rewinding.
- Dual-knife design effectively reduces dust generation during slitting.
- Built-in dust collection system realizes dust-free and clean slitting.
- High-precision slip shaft supports stable 35mm narrow-width high-speed slitting.
- Full-automatic tension control, simple setup and easy operation.
- Optimized unloading rack for labor-saving and fast material unloading.
- Heavy-duty wall panels and 5 reinforced crossbeams guarantee stable high-speed operation.
- Wide material compatibility, suitable for 6μm–250μm thick film materials.
- Ultra-high cost performance with reliable quality and competitive price.
- Intelligent Tension Control
Closed-loop tension system ensures consistent and stable slitting quality. - Efficient Shaftless Unwinding
3/6-inch shaftless unwinding with hydraulic lifting, supporting 1000KG jumbo rolls. - Precise Edge Positioning
Adopts Taiwan PAUSOURCE EPC system for accurate edge tracking and minimal material waste. - Flexible Rewinding System
3-inch friction shaft + 1-inch air shaft design with laser positioning for easy roll unloading. - High-Speed Slitting Performance
Covers material thickness of 6–250 μm, with a maximum working speed of 500 m/min. - Humanized Operation Design
Dual-side control panels + rear display for intuitive and easy operation. - Reliable After-Sales Service
24/7 online technical support, one-year warranty and full pre-shipment inspection. - Customizable Configuration
CE certified, equipped with multi-language HMI and abundant optional functions.
| MODEL | HN1600HSF |
| Slitting Thickness | 6-250um |
| Unwinding Width | 300-1600mm |
| Max Unwinding Diameter | 800mm（optional 1000 mm) |
| Unwinding Type | 3/6-inch shaftless |
| Unwinding Brake | Magnetic powder brake |
| Min Sitting Width | 40mm（optional 25mm) |
| Max Winding Diameter | 600mm（optional 800mm） |
| Winding Shafts | 3-inch friction shafts+1-inch air shaft |
| Slitting Knives | Razor(optional razor+shear circular knives) |
| Mechanical Speed | Max 600m/min |
| Operating Speed | Max 500m/min |
| Waste Handling | Waste edge blower system |
| Positioning Device | Manual laser positioning light |
| Certitication | CE compliant |
* Other specifications are offered at request.
