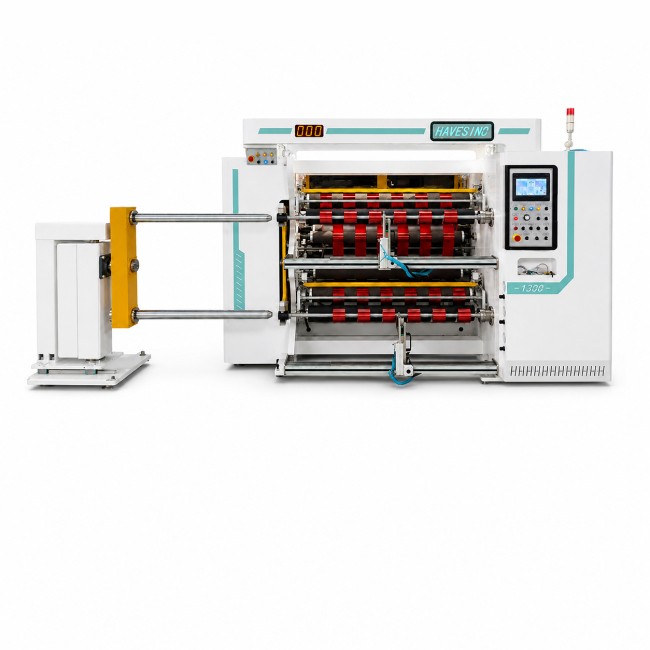

HN1600HSFPLUS Horizontal Pressed Metallized/Laser Foil Slitter
HN1600HSFPLUS with a horizontal pressed roller to better apply greater but more stable external force to the material, which can not only better ensure that the material is in the perfect position but also make the slitting quality more perfect. Best choice for Metalized or Laser Foil slitting.
HN1600HSFPLUS with max speed up to 600m/min. It can complete the slitting work efficiently and quickly. It can be used in so many materials between 6-250 microns thick whether films or foils.

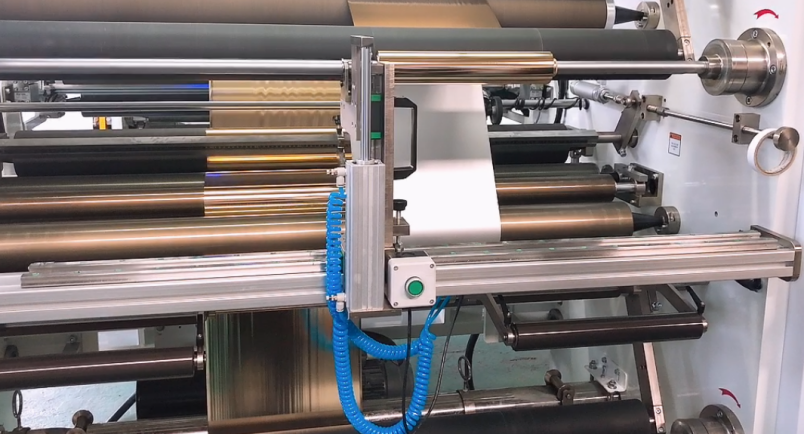

Horizontal pressed roller are more suitable for slitting thinner materials and small widths of finished rolls. Meanwhile, equipped with 1 inch ad 3 inches rewinding shaft for different rolls. The support system of 1 inch will be offered to make the shaft more stable. Hydraulic lifter is equipped to auto-load the jumbo rolls easily.
1. With both 1 inch and 3 inches rewinding shafts
2. Max working speed up to 600m/min
3. Close-loop system both in rewinding and unwinding units
4. With 1 inch supporting system
5. Hydraulic lifter to easy load
6. Horizontal press roller for more stable pressure
| SLITTING THICKNESS | 6 - 250 MICRONS |
| UNWINDING WIDTH | 300 MM TO 1600 MM |
| UNWINDING DIAMETER | MAX 800 MM |
| UNWINDING TYPE | SHAFTLESS 3 INCH AND 6 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | MINI 40 MM |
| REWINDING DIAMETER | MAX 600 MM |
| REWINDING SHAFT | 3 INCH FRICTION SHAFTS+1 INCH AIR SHAFT |
| REWINDING SHAFT SIZE | 3 INCH +1INCH |
| SLITTING UNIT | RAZOR BLADE |
| WALL THICKNESS | 50 MM |
| MECHANICAL SPEED | MAX 650 M/MIN |
| WORKING SPEED | MAX 600 M/MIN |
| WASTE EDGE UNIT | WASTE EDGE BLOWER |
| LASER POSITION LIGHT | MANUAL LASER |
| METER COUNTER | METER COUNTER |
| POWER SUPPLY | 380V,3PHASES, 50Hz |
| AIR POWER SUPPLY | 0.6 Mpa (MINI) |
| N.W | 4200 KG |
* Other specifications are offered at request.
