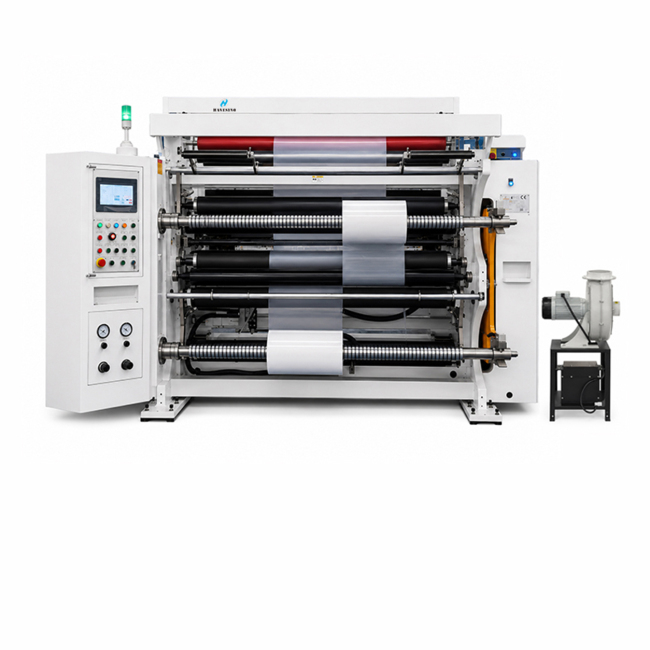

Slitting Rewinding Machine Flexible Packaging Material Slitter

Developed for the flexible packaging and label industry with 16 years of proven manufacturing experience, the HN1800 is a high-performance slitter rewinder featuring stable operation, easy installation and great cost performance.

It offers a maximum effective slitting width of 1800 mm, with integrated unwind and rewind structures for a compact, space-saving layout. The machine supports a 600 mm maximum rewind diameter and 1000 mm maximum unwind diameter, suitable for most flexible packaging materials.

Running at a speed of up to 500 m/min, it handles a wide range of materials such as films, foils, laminates, paper and non-woven fabrics. Supplied fully assembled, the unit can be put into operation right after power and air connection, with 7×24-hour online support available.


Message

$??.00

Have chosenThere are no options selected.

Add To Cart Successfully!

SEND INQUIRY

Slitting Rewinding Machine Flexible Packaging Material Slitter

Developed for the flexible packaging and label industry with 16 years of proven manufacturing experience, the HN1800 is a high-performance slitter rewinder featuring stable operation, easy installation and great cost performance.

It offers a maximum effective slitting width of 1800 mm, with integrated unwind and rewind structures for a compact, space-saving layout. The machine supports a 600 mm maximum rewind diameter and 1000 mm maximum unwind diameter, suitable for most flexible packaging materials.

Running at a speed of up to 500 m/min, it handles a wide range of materials such as films, foils, laminates, paper and non-woven fabrics. Supplied fully assembled, the unit can be put into operation right after power and air connection, with 7×24-hour online support available.


The HN1800 slitter rewinder is specially designed for materials with a web width of up to 1800 mm, featuring a maximum effective slitting width of 1800 mm. While handling such wide-format materials, its rewind and unwind units are integrated onto a single frame, making the machine compact and space-saving.

This machine has a maximum rewind roll diameter of 600 mm and a maximum unwind roll diameter of 1000 mm. It is widely applicable to slitting and rewinding of nearly all flexible packaging materials, with a top running speed of 500 m/min. The HN1800 is an ideal choice for customers with diverse processing demands for films, laminated films, paper and other similar materials.

Processable Materials:

Plastic films: PE, PP, PET, PVC

Hot stamping foil, cold foil, graphic foil, laser foil

Paper and laminates (subject to material type and thickness)

Rigid films: 10–250 microns / Soft films: 12–300 microns

Standard Configuration

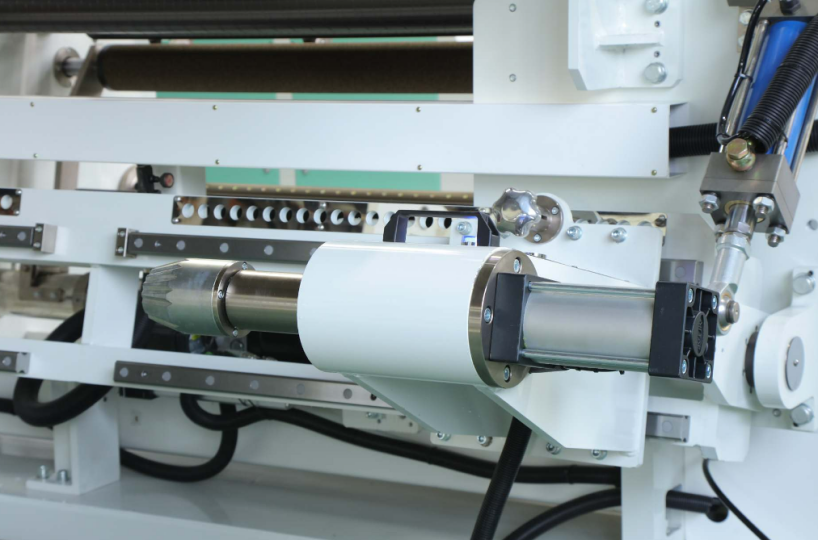

  1. Shaftless unwind with independently adjustable arms

  2. Hydraulic lifting system for picking up jumbo rolls from the floor

  3. Closed-loop tension control on the unwind unit for precise tension regulation

  4. Built-in splicing table for continuous roll splicing

  5. Full web guiding system with edge/line guiding for all materials

  6. High-power blower fan for edge trimming

  7. Independent servo motors and drives for each rewind shaft

  8. Laser-assisted positioning for knife setup and core loading

  9. Differential (friction) winding shafts, lubrication-free

  10. PLC control system equipped with HMI touch screen

1. Wide but Compact design,Space-Saving；
2. Maximum slitting speed: 500 m/min
3. Minimum slitting width down to 50 mm
4. Servo motor control + HMI touch screen for easy operation
5. Short lead time and fast delivery
6. Wide material compatibility for various films, laminates and more
7. Easy blade adjustment for quick width changeover
8. High scalability, supporting optional functions such as online inspection, micro & macro perforation units, etc.
9. Fully automatic version available, including automatic blade positioning for all slitting modes
10. Cost-effective pricing

Model HN1800
Slitting Thickness 15-250um
Max Slitting Width 1800mm
Min Slitting Width 300mm
Unwinding Diameter 800mm (OPTlONAl:1000mm)
Unwinding Type SHAfTLESS 3INCH AND 6INCH
Max Rewind Diameter 600mm（OPTIONAL:800mm）
Rewinding Shaft NORMAL AIR SHAFTS (OPTIONAL·SLIPPING AIR SHAFT)
Min Rewinding Width 40mm
Slitting Unit RAZOR BLADE(OPTIONAL:SHEAR CIRCLE BLADE)
Laser position light 10 PCS
Meter counter WHEEL METER COUNTER
Mechanical Speed 550m/min
Working Speed 500m/min
Wall Thickness 50mm
Power Supply 380V,3PHASES,50HZ
AIR POWER SUPPLY 0.7 Mpa (MINI)

* Other specifications are offered at request.
