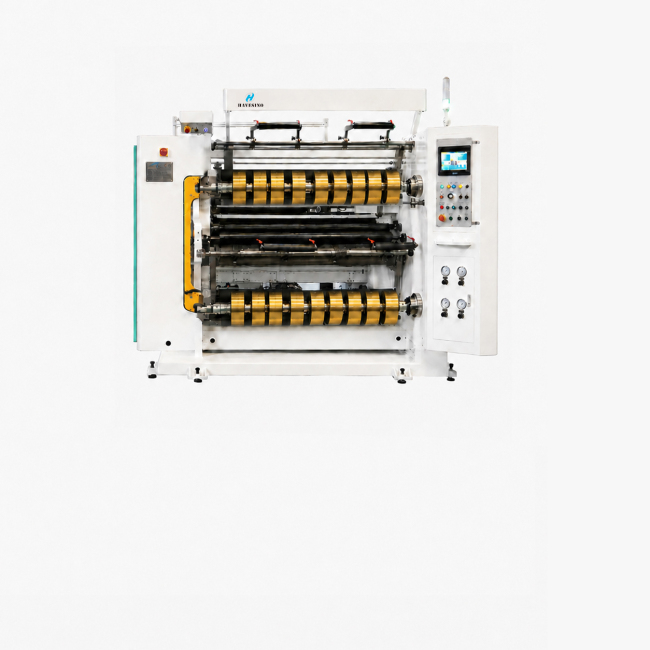

HN2000HSF High-Speed Holographic Foil Slitting Machine
Precision slitting machine engineered specifically for hot stamping foils. It can quickly slit large rolls with wide widths and ensure excellent cutting quality . Handles material thicknesses from 6µ to 250µ with 1" and 3" rewind shafts. Achieves consistent, burr-free cuts at speeds up to 550m/min. Ideal for foil and packaging converters seeking high-efficiency slitting.

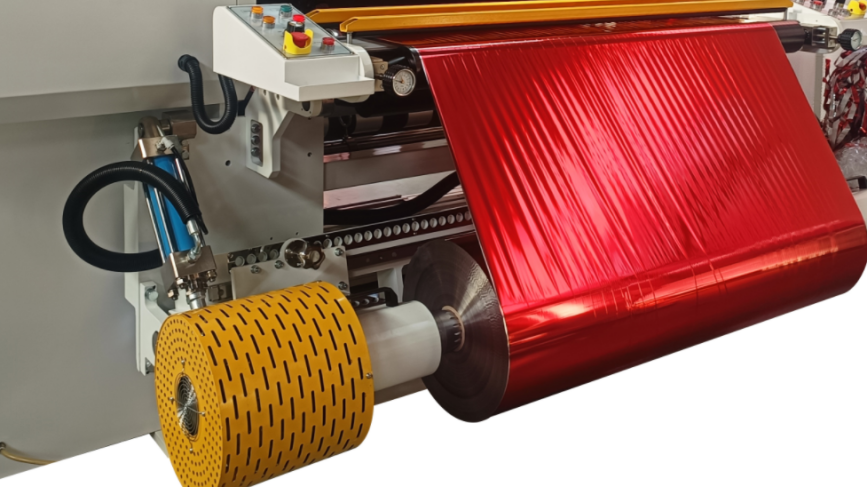

HN2000HSF is especially designed for large width hot stamping foils. It can slit from 300mm to 2000mm width. Also its suitable for films, lamination and other materials that range from 6 microns to 250 microns.
It is equipped with both 1-inch and 3-inch rewinding shafts, which can be well applied in the hot stamping foil industry. Meawhile, the slitting quality can be stable whether in High speed or Lower speed. Automatic tension control can keep the machine in constant tension balance while it is in operation.
1. Fast Speed, Perfect Slitting, Working at 500m/min with perfect cutting quality
2. Stable Performance and Long Life Use
3. Close loop tension, feel and adjust the tension itself
4. Two servo motors for shaft to keep the power of rewinding
5. Mitsubish PLC imported from Japan offers more precise control
6. Two sizet of unwinding shaftless to fit wider needs
7. The 50mm thick walls make the machine more load-bearing and stable
| MODER | HN2000HSF |
| SLITTING THICKNESS | 6 - 250 MICRONS |
| UNWINDING WIDTH | 300 MM TO 2000 MM |
| UNWINDING DIAMETER | MAX 800 MM |
| UNWINDING TYPE | SHAFTLESS 3 INCH AND 6 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | MINI 40 MM |
| REWINDING DIAMETER | MAX 600 MM |
| REWINDING SHAFT | 3 INCH FRICTION SHAFTS+1 INCH AIR SHAFT |
| REWINDING SHAFT SIZE | 3 INCH +1INCH |
| SLITTING UNIT | RAZOR BLADE |
| WALL THICKNESS | 50 MM |
| MECHANICAL SPEED | MAX 550 M/MIN |
| WORKING SPEED | MAX 500 M/MIN |
| WASTE EDGE UNIT | WASTE EDGE BLOWER |
| LASER POSITION LIGHT | MANUAL LASER (10PCS) |
| METER COUNTER | METER COUNTER |
| POWER SUPPLY | 380V,3PHASES, 50Hz |
| AIR POWER SUPPLY | 0.6 Mpa (MINI) |
* Other specifications are offered at request.
