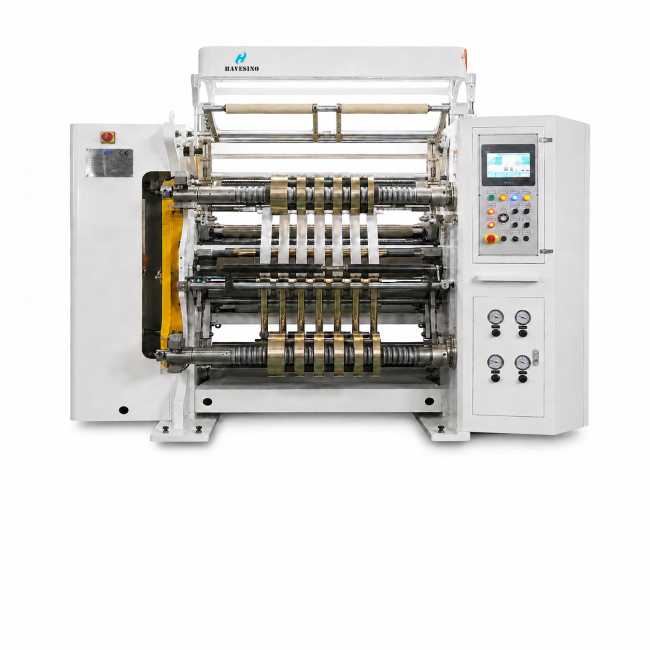

HN800HSF High-Speed Hot Stamping Foil Slitting Machine

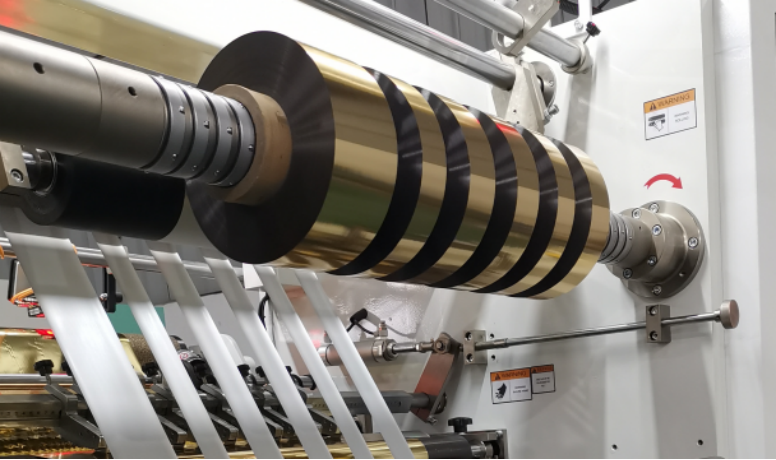

HN800HSF is a smart slitter rewinder specially designed for hot stamping foil, cold foil and metallized foil. It is fitted with special angled circular knives and a dust extraction system, resulting in nearly zero dust during operation.
Adopting the most advanced closed-loop tension control system and backward lay-on roller system, the machine produces finished rolls with perfect shaping, stable tension and zero wrinkles. Its standard production speed reaches 500 m/min, which drastically cuts down the production cycle of foil rolls.
The HN800HSF is an 800 mm-width slitter rewinder with a standard speed of 500 m/min; an 800 m/min speed version is optional. Its minimum slitting width is 30 mm.
Fitted with both shear circular blades and razor blades, the machine can slit not only hot stamping foil, cold foil and metallized foil, but also base films, laminates, paper and even self-adhesive labels.
Furthermore, it is equipped with both 1-inch air shafts and 3-inch friction slip air shafts, supporting slitting for both 1-inch and 3-inch rolls.
As a professional slitter dedicated to hot stamping foil and cold foil, the HN800HSF features a dust extraction system that collects and removes ink dust during foil slitting. It is a highly cost-effective and stable duplex slitter rewinder for foil processing.
Clean Cuts & Dust-Free Processing
Dual cutting tools — angled circular shear knives + razor blades — eliminate dust, edge fraying and delamination for blemish-free cut edges.
Preserves Foil Metallic Finish
Safely retains the metallic luster and surface integrity of fragile hot stamping foil and metallized foil.
Ultra-High Operating Speed
High-speed stable running greatly lifts output efficiency and reduces downtime.
User-Friendly Operation
Rapid job changeovers paired with automatic tension control help avoid wrinkles and foil breakage.
Broad Application Compatibility
Precisely processes a wide range of materials and supports different core roll sizes.
Integrated Dust Extraction System
Fully extracts ink dust produced during foil slitting.
Dual Rewind Shaft Configuration
Comes with both 1-inch and 3-inch friction slip shafts to fit 1-inch and 3-inch rolls.
Narrow Slitting Capability
Minimum slitting width: 30 mm; optional 8 mm narrow-width cutting module.
Adjustable Production Speed
Standard maximum speed: 600 m/min, with an upgrade option for 800 m/min.
Highly Cost-Effective Foil Slitter Rewinder
A leading economical duplex slitting machine for foil processing in China.
| MODEL | HN800HSF |
| SLITTING THICKNESS | 6 - 250 MICRONS |
| UNWINDING WIDTH | 300 MM TO 1600 MM |
| UNWINDING DIAMETER | MAX 800 MM |
| UNWINDING TYPE | SHAFTLESS 3 INCH AND 6 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | MINI 40 MM |
| REWINDING DIAMETER | MAX 600 MM |
| REWINDING SHAFT | 3 INCH FRICTION SHAFTS+1 INCH AIR SHAFT |
| REWINDING SHAFT SIZE | 3 INCH +1INCH |
| SLITTING UNIT | RAZOR BLADE+SHEAR CIRCLE BLADE |
| WALL THICKNESS | 50 MM |
| MECHANICAL SPEED | MAX 550 M/MIN |
| WORKING SPEED | MAX 500 M/MIN |
| WASTE EDGE UNIT | WASTE EDGE BLOWER |
| LASER POSITION LIGHT | MANUAL LASER (10PCS) |
| METER COUNTER | METER COUNTER |
| POWER SUPPLY | 380V,3PHASES, 50Hz |
| AIR POWER SUPPLY | 0.6 Mpa (MINI) |
* Other specifications are offered at request.
