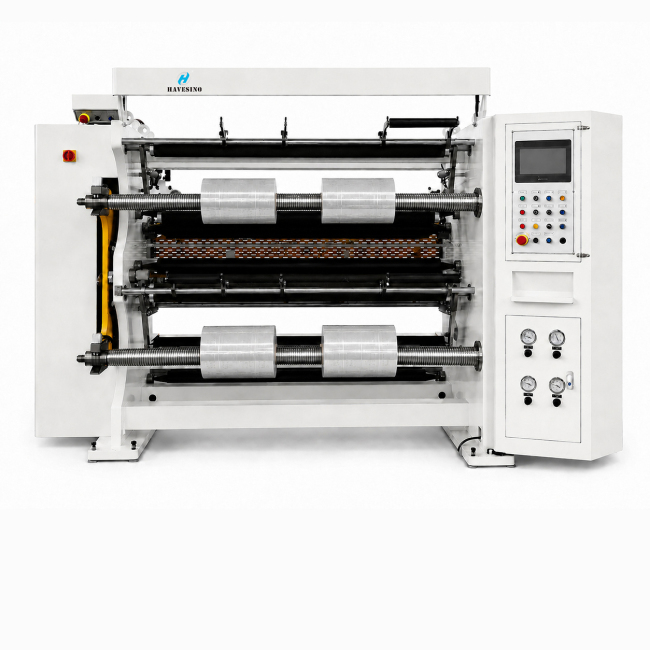

PackMaster Split-Frame High-Speed Slitter

HN1600F Duplex Shaft Center Winding Slitter Rewinder is specially designed for slitting large-diameter mother rolls, including kraft paper, other paper stocks, self-adhesive labels and laminated materials. Its processing weight range covers 24 gsm to 300 gsm.

This machine can also slit films and printed laminated materials with thickness ranging from 10 to 250 micrometers. Equipped with both razor blade and shear circular blade systems, it supports slitting of a wide range of materials.

The HN1600F Duplex Shaft Center Winding Slitter Rewinder is a well-received model for processing self-adhesive materials, PSA labels, paper, laminates and release liners.

Unlike compact slitter rewinders, the HN1600F features a split layout that separates the unwinding and rewinding sections. This design allows the machine to load and slit large-diameter mother jumbo rolls, with a maximum loading diameter of 1500 mm.

Meanwhile, this separated structural design prevents unwinding vibration from affecting the rewinding process, guaranteeing premium quality finished rolls.

Equipped with a knife cleaning device and finished reel push-off mechanism, this model delivers easy, user-friendly operation for workers.

In addition, its unloading mechanism can smoothly shift between vertical and horizontal states and comes with an auto-rotating function, supporting highly efficient packaging workflows.

1.Shaftless unwind stand separated from the main machine frame

2.Roll lifting system with hydraulic lifter

3.Full web guiding with photoelectric web guiding system for all materials

4.Built-in splicing table at unwind for seamless roll joining

5.Multiple slitting formats supported: razor blade and rotary shear circular blade

6.Laser-aided device for assisted paper core positioning

7.Differential friction winding shafts

8.Antistatic brush included for enhanced operational safety

9.Lay-on press roller with different widths available

10.Various trim system configurations to suit different production needs

11.Cantilevered rewind system for easy roll unloading

MODEL HN1300-2000F
SLITTING WIDTH 1300-2000MM
SLITTING THICKNESS 12-200 MICRO METER
UNWIND DIA. MAX 1300MM
UNWIND CORE I.D SHAFTLESS 3 INCH AND 6 INCH
REWINDING DIA. MAX 600MM
REWINDING WIDTH MINI 35MM
REWINDING CORE I.D. 3 INCH AIR SHAFT
SLITTING UNIT RAZOR BLADE
MECHANICAL SPEED MAX 550M/MIN
WORKING SPEED MAX 500M/MIN
MACHINE FRAME THICKNESS 50MM
METER COUNTER METER COUNTER
WASTE EDGE UNIT AIR BLOWER
POWER SOURCE 380V,3PHASES, 50Hz
PNEUMATIC SOURCE 0.7 Mpa (MINI)
MACHINE SIZE (REF. ONLY) 5500mm(includs the unloading frame tree)×5000mm×1970mm
N.W/G.W (REF. ONLY) 5500 KGS

* Other specifications are offered at request.
