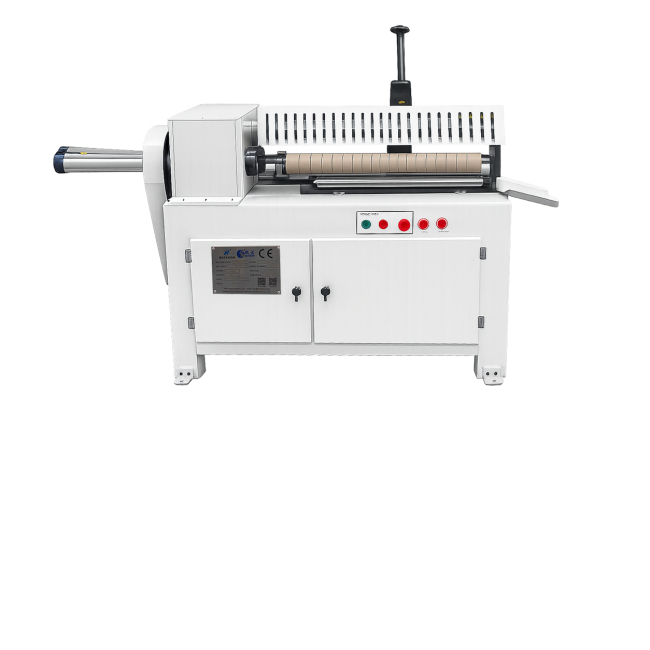

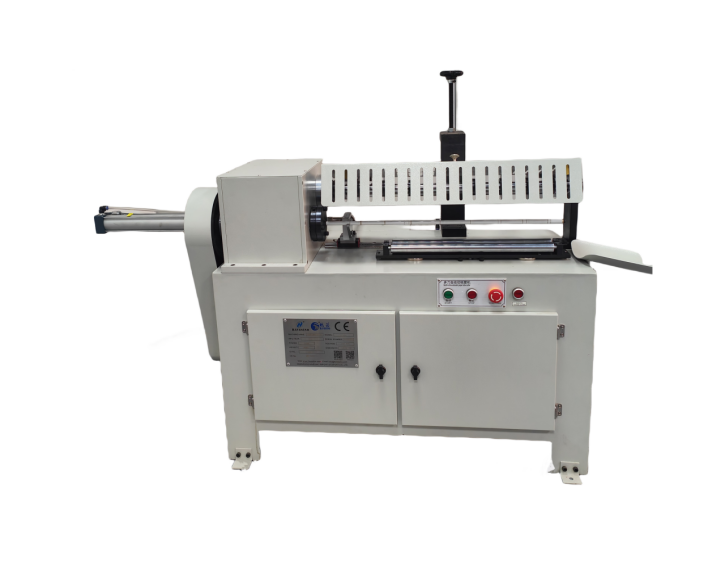

CC600AN Paper Core Cutter Machine with Multi-Knives
CC600 AN is a special multi knives paper core cutting machine designed for cutting 1/2” to 3” paper core.
It is specially designed for the TTR, Hot Stamping Foil industry, which needs 1/2 inch, 1 inch and 3 inch paper core.
It is with auto unloading function, can unload the paper core automaticly;
This Paper Core Cutting Machine CC600AN is a device that can effectively and accurately cut pipes to a desired length. This Paper Core Cutting Machine is widely used in the TTR, Hot Stamping Foil industry, which needs 1/2 inch, 1 inch and 3 inch paper core. With its advanced technology and user-friendly design, it allows operators can control it easily and fast. The tube surface is smooth and flat, no burrs.
1. Multi-knife Design & High Efficiency: Equipped with multi-knife cutting structure, which greatly improves the cutting efficiency.
2. Wide Cutting Range: Support multiple cutting diameters from 10mm to 100mm, inner diameter cutting range of 12.5mm-76mm.
3. Automatic Unloading Function: Built-in auto-unloading system, which realizes automatic blanking after cutting, reduces manual operation intensity.
4. Easy Operation & Quick Start: Simple operation interface and structural design，
| MODEL | CC600AN |
| Max Cutting Width | 600 MM |
| Mini Cutting Width | 18 MM |
| Cutting Inner Diameter | 12.5MM - 76MM |
| Cutting Thickness | 2MM - 10MM |
| Blade Type | Circle Blade 4PCS |
| Paper Unloading | Auto |
| Air Supply | 0.6 MPA |
| Power Supply | 220V, 50HZ, Single-phase, 1.1KW |
| Net Weight (NW) | 280 KGS |
| Gross Weight (GW) | 300 KGS |
| Wooden Box Size | 165 * 76 * 115 CM |
* Other specifications are offered at request.
