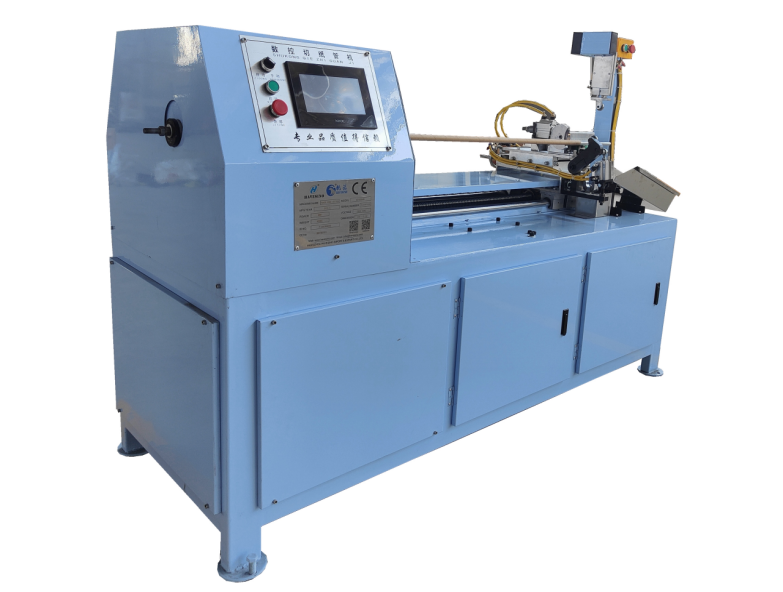

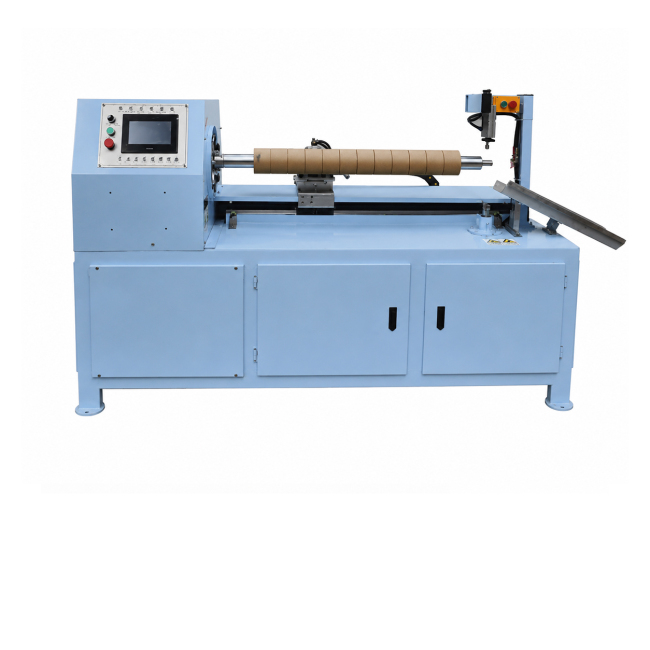

CC1000-1500AN Semi-Automatic Paper Core Cutter Machine with -Single Knive
CC1000-1500 AN is a Ssingle knives paper core cutting machine designed for cutting 1/2” to 3” paper core.
It is specially designed for the TTR, Hot Stamping Foil industry, which needs 1/2 inch, 1 inch and 3 inch paper core.
Equipped with advanced servo motor control and PLC touch screen operation system, it ensures ultra-accurate paper tube length cutting and intuitive operation
This Paper Core Cutting Machine is suitable for cutting paper tubes from 0.5 inch to 3 inch, which are used for adhesive label ,TTR, non-woven fabric, lamination film, adheisve tape slitting industry. With its advanced technology and user-friendly design, it allows operators can control it easily and fast. The tube surface is smooth and flat, no burrs.
1. Cutting Tube Diam: 0.5-3 inch
2. Paper Clamp: it will fix the core automatically.
3. Single knife: round single knife.
4. Servo Motor and PLC System: adopt one servo motor to confirm running stability.
5. Touch Screen: standard English version,also according to customer need.
| MODEL | CC1000-1500AN |
| Cutting Tube Diameter | 0.5-3 inch |
| Cutting Tube Length | 10-1000/1500mm |
| Cutter Way | One circle knife |
| Tube Thickness | 1-15mm |
| Paper Loading/Unloading | Manual (Auto optional) |
| Mechanical Speed | 50 /minute |
| Tail Waste Length | 20mm |
| Mainframe Power | 3.0 KW |
| Working Voltage | 380V (3P) |
| Net Weight (NW) | 400 KGS |
| Gross Weight (GW) | 450 KGS |
| Packing Size | 230* 135 * 92CM |
* Other specifications are offered at request.
