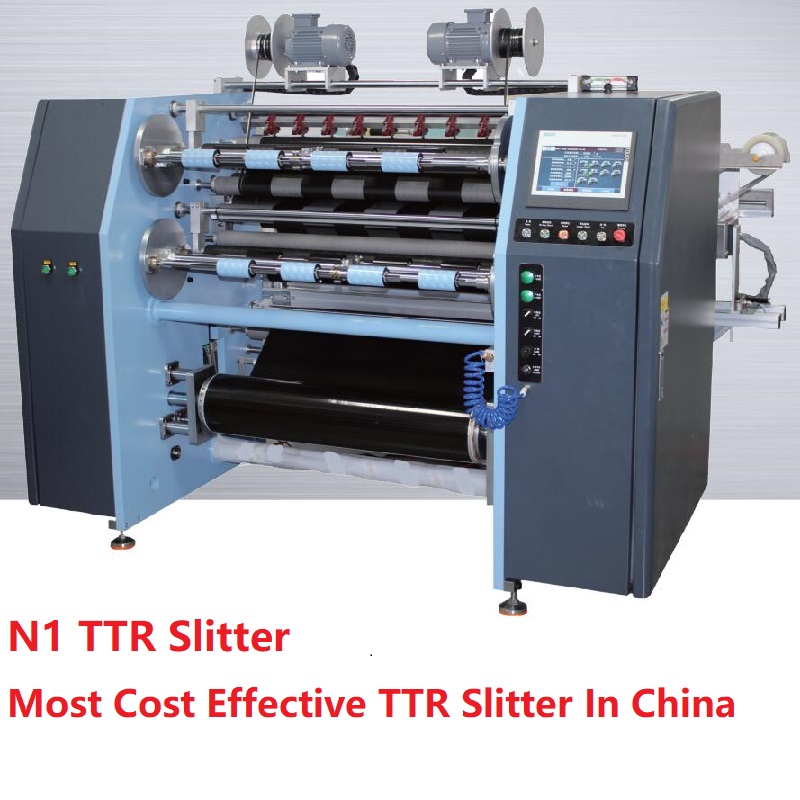

N1 TTR Slitting Machine Primary Ribbon Saving Slitter
The N1 TTR Slitter is our most popular entry-level model for thermal transfer ribbon (TTR) production. It is designed for wax, wax-resin, and resin ribbons, as well as other specialty films with thicknesses from 4–20 microns.
Equipped with multiple air shafts, magnetic blade holders, and a semi-automatic leader & trailer table, the N1 delivers consistent slitting quality, reduces material waste, and improves production efficiency. Its compact design, combined with reliable SIEMENS PLC and servo-driven tension control, makes it a perfect choice for start-up ribbon manufacturers seeking a cost-effective and easy-to-operate machine.
Max Slitting Speed: 250 m/min
Max Slitting Width: 1010 mm
1. Magnetic Clip Blade Holders, change slitting width quick and easy.
2. 1 Inch Air Shafts and 4 pcs 1/2 inch Air Shafts, make the core loading more easy. With the shafts holder, the rewinding shaft is stable and faster.
3. Semi-auto leader and trailer table with ribbon saving function: No need to cut down ribbon during the leader/trailer sticking process.
4. Good quality roller, carefully design, details experience making the slitter easy operation.
5. Automatic tension control system, slitting perfect quality roll
6.SIEMENS PLC stable control and long life using
7. FOUR SERVO MOTORS, TAIWAN converter,stable tension control,long life
| SLITTING WIDTH | 650mm-1010MM |
| SLITTING THICKNESS | 4-20 MICRON |
| UNWIND DIA. | 650MM (MAX) |
| UNWIND CORE I.D. | SHAFTLESS 6 INCH |
| REWINDING DIA. | MAX 110MM(AROUND 1300M) OPTIONAL: 140MM MAX |
| REWINDING WIDTH | MINI 30MM |
| REWINDING CORE I.D | 1 INCH AIR SHAFT AND 1/2 INCH AIR SHAFT |
| SLITTING UNIT RAZOR BLADE | EACH 30 PCS |
| MECHANICAL SPEED | MAX280M/MIN |
| WORKING SPEED | MAX250M/MIN |
| MACHINE FRAME THICKNESS | 30MM |
| METER COUNTER | METER COUNTER |
| WASTE EDGE UNIT: | SERVO REWINDING MOTOR |
| POWER SOURCE | 220V,2 PHASE AC 5KW |
| PNEUMATIC SOURCE | 0.6-0.8MPA |
| MACHINE SIZE (REF. ONLY): | 2560MM*2050MM*1680MM |
| FLOOR SPACE(REF.ONLY) | 3000MM*2500MM |
| N.W/G.W (REF. ONLY): | 2000KGS/2200KGS |
* Other specifications are offered at request.
