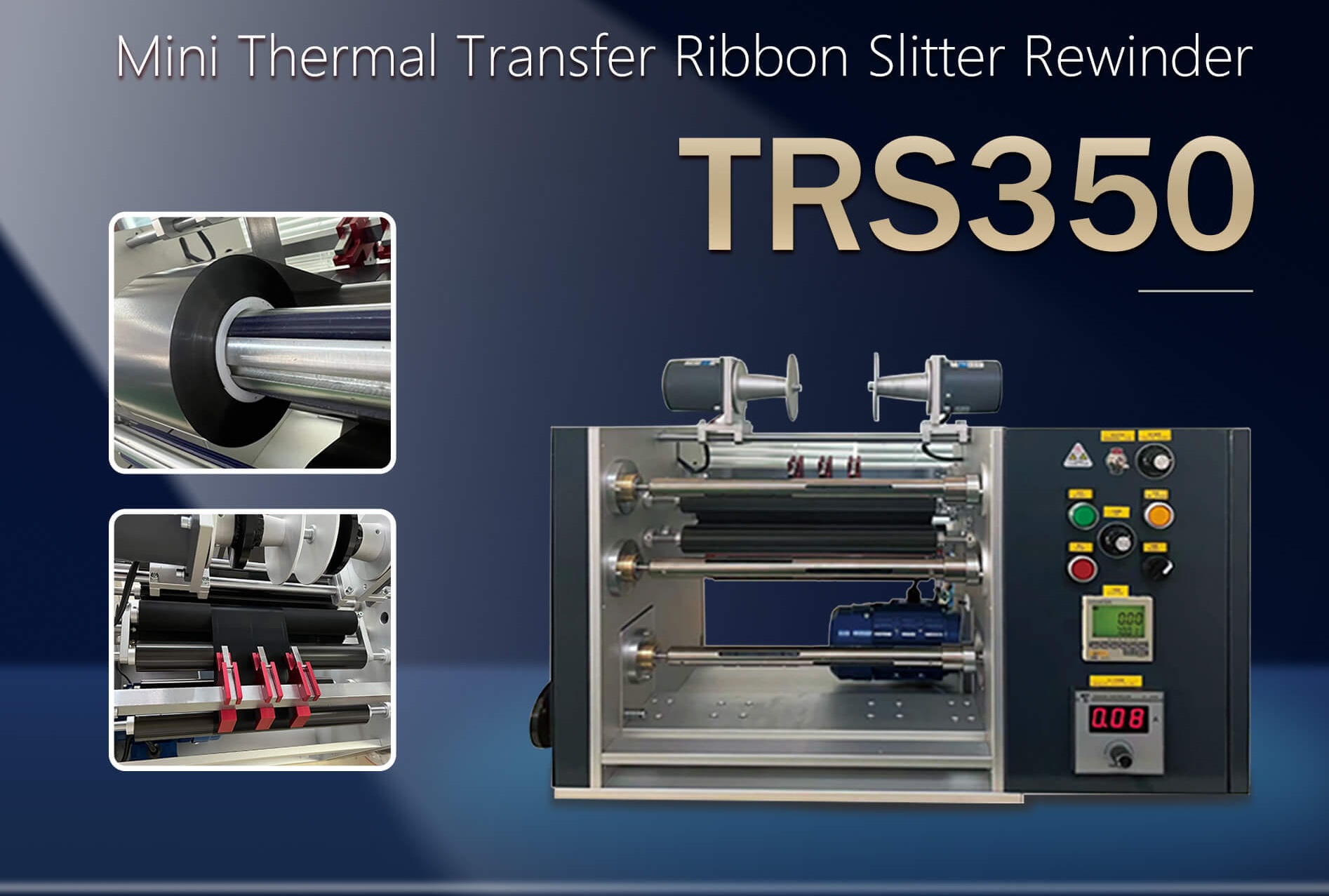

TRS350 Mini Thermal Transfer Ribbon TTR Slitter Rewinder
The TRS350 is a compact, versatile "Doctor Machine" specifically engineered for the Thermal Transfer Ribbon (TTR) industry. It is the perfect companion for TTR finishing plants and distributors who need to handle small-batch orders or rescue damaged inventory. Its intuitive control panel and stable tension system ensure professional-grade winding every time. Whether you need to convert industrial 1-inch core ribbons for desktop 1/2-inch core printers, or you need to bypass a defect in a jumbo roll, the TRS350 provides a high-speed, high-precision solution. Its intuitive control panel and stable tension system ensure professional-grade winding every time.
Functions:
A.Rewind the longer roll to short one:
-- e.g. rewinding the 110mm*450m roll to 110mm*360m
B.Change the wider roll to narrow one:
--e.g. rewinding the 110mm*450m to 2 pcs 55mm*450m roll
C.Rewind ink inside to out side or reverse.
D.Rewind 1" roll to 1/2" roll:
--e.g. rewind the 1" roll 110mm* 300m to 3 pcs 1/2" 110mm*100m roll
E.Reuse the defective roll:
--e.g. there are several defect in a 110mm*450m roll, then you can rewind it to 110mm*74m 1/2" roll, through the defect ribbon.
1) Magnetic Blade Holder
2) 1 Inch and Half Inch Rewinding Air Shaft
3) Trimming Motors
4) Control Panel
(The Pictures are for Reference, Please Subject to the Real Subject)
| SLITTING WIDTH | 20MM-330MM |
| SLITTING THICKNESS | 4-20 MICRON |
| UNWIND DIA. | 120MM (MAX) |
| UNWIND CORE I.D. | 1" And 1/2" |
| REWINDING DIA. | 120MM |
| REWINDING CORE I.D | 1 INCH AND 1/2 INCH SHAFT |
| MECHANICAL SPEED | MAX 100M/MIN |
| WORKING SPEED | 30-80M/MIN |
| POWER SOURCE | 220V |
| PNEUMATIC SOURCE | 0.6MPa |
| MACHINE SIZE (REF. ONLY): | 700MM*350MM*410MM |
| N.W/G.W (REF. ONLY): | 2000KGS/2200KGS |
| PACKAGING (REF.ONLY) | 900MM*500MM*720MM |
| BLADE TYPE | RAZOR BLADE |
* Other specifications are offered at request.
