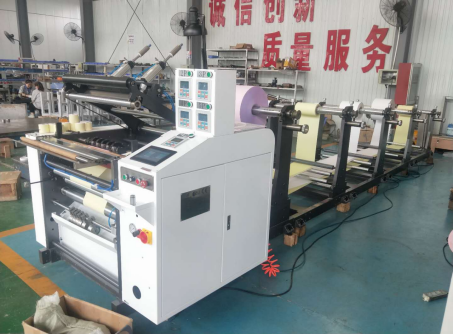

CP-S650C 5L 5 Ply Thermal Paper Slitting Machine
CP-S650C 5L is a five-layer thermal paper slitting machine designed for producing POS rolls, ATM receipts, and thermal paper rolls. With a working speed of up to 180m/min, PLC touch-screen control, and stable tension adjustment, it enables efficient and precise multi-layer roll production.
CP-S650C 5L Thermal Paper Slitter Rewinder is engineered for converters who need high-quality multi-layer roll production. Its five-layer slitting design allows simultaneous processing of multiple layers, improving production efficiency and material utilization.
Equipped with a PLC touch-screen control system, operators can quickly adjust parameters and tension according to roll specifications, reducing setup time. The air-shaft unwinding system with magnetic powder brake ensures stable tension throughout the slitting process.
A 10 circular blade slitting unit provides accurate cutting across all five layers, while end mark rollers automatically add marks inside the finished rolls for easier roll identification.
Five-Layer Slitting Capability: Allows simultaneous processing of three layers of thermal paper, improving efficiency and material use.
PLC Touch Screen Control: Simplifies parameter adjustment and machine operation for fast setup and consistent production.
Stable Tension Control: Air-shaft unwinding with magnetic powder brake maintains uniform tension across all layers.
Flexible Tension Adjustment: Quickly adapt tension according to roll weight to ensure smooth rewinding.
End Mark Rollers: Automatically add an end mark on the inside of each roll for easy identification.
Circular Blade Slitting Unit: 10 circular blades provide precise slitting across three layers for consistent roll output.
1.Auto Tension Control;
2. Free Installing and Quick Operation Learning;
3. 24*7 Hours Online Service;
4. Equipped With Flatten Roller, Completely Separated;
5. Random Adjust the Tightness of the Roll;
6. Precise Slitting, Fast Speed, Perfect Edge Slitting
| MODEL | CP-S65C 5L |
| SLITTING LAYER | 5 LAYER |
| SLITTING WIDTH | 650MM |
| SLITTING THICKNESS | 40-120GR/M2 |
| UNWINDING DIAMETER | 1200MM |
| UNWINDING TYPE | AIR SHAFT |
| UNWINDING CORE SIZE | 3 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | 25MM(MIN.) |
| REWINDING DIAMETER | 180MM (MAX.) |
| REWINDING SHAFT | 8-50MM |
| SLITTING UNIT | 10PCS CIRCLE BLADE |
| WALL THICKNESS | 30MM |
| MECHANICAL SPEED | 200M/MIN (MAX.) |
| WORKING SPEED | 180M/MIN (MAX.) |
| POWER SUPPLY | 380V,3PHASES, 50Hz, 2.2KW |
| AIR POWER SUPPLY | 0.8 Mpa (MINI) |
| N.W | 2100 KG |
| MACHINE SIZE | 2400MM*1900MM*1800MM |
* Other specifications are offered at request.
