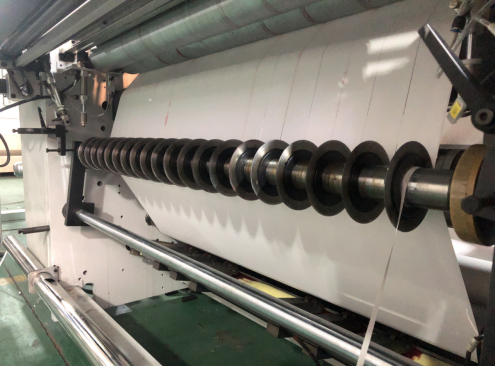

CP-S1100FA Automatic Paper Roll Slitting Machine
Fully Automatic Thermal Paper Slitting Machine
CP-S1100FA are our fully auto thermal paper sliting machine from slitting to packing, for slitting various thermal paper rolls, such as POS /ATM/Cash register ECG/Medical Lottery paper rolls and so on
1. Fully Automatic Slitter, No Need Operator;
2. 20% Wastage Save, No Stop for Paper Break, 100% Smooth Edge;
3. 2 Times Efficency Than Normal Slitter;
4. Save 60-80% Management Cost;
| 1 MODEL | CP-S1100FA |
| SLITTING LAYER | SINGLE LAYER |
| SLITTING WIDTH | 1100MM |
| SLITTING THICKNESS | 40-120GR/M2 |
| UNWINDING DIAMETER | 1200MM |
| UNWINDING TYPE | AIR SHAFT |
| UNWINDING CORE SIZE | 3 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | 35MM(MIN.) |
| REWINDING DIAMETER | 30-160MM (MAX.) |
| REWINDING SHAFT | 10-25MM |
| SLITTING UNIT | 10PCS CIRCLE BLADE |
| WALL THICKNESS | 38MM |
| SHAFT LENGTH | 1100MM |
| SHAFT SIZE | 10-25MM |
| WORKING SPEED | 100PCS/MIN (MAX) |
| MECHANICAL SPEED | 260M/MIN (MAX.)WORKING SPEED |
| WORKING SPEED | 200M/MIN (MAX.) |
| POWER SUPPLY | 380V,3PHASES, 50Hz |
| AIR POWER SUPPLY | 0.6Mpa (MINI) |
| MACHINE SIZE | SUBJECT TO THE LINE |
| N.W/G.W (REF. ONLY) | 7000KGS SUBJECT TO THE LINE |
* Other specifications are offered at request.
