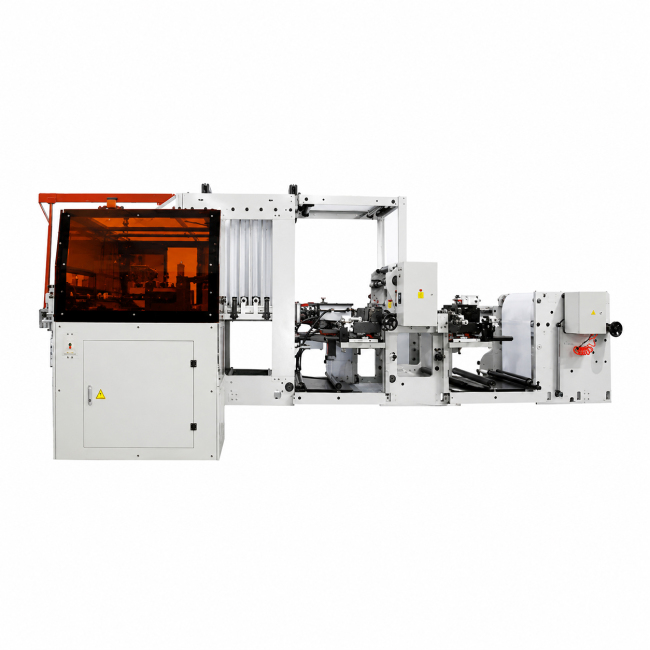

CP-S1450AC Thermal Paper Slitter Rewinder with 1-Color Flexo Printing
CPS1450AC is a semi-automatic thermal paper slitting machine with 1-color flexo printing, designed for producing POS rolls, ATM receipts, and large jumbo thermal paper rolls. With a slitting width of 1450mm, it supports high-capacity production while integrating printing and rewinding in one continuous process
CPS1450AC Thermal Paper Slitter Rewinder is built for converters who need high-capacity production with integrated printing capability. With a 1450mm slitting width, the machine can handle larger jumbo rolls while maintaining consistent quality and tension control.
The semi-automatic system features auto core loading, auto glue spray, auto cross cutting, and auto roll push-out, reducing manual labor and streamlining production. Its 1-color flexo printing unit supports both front and back printing, making it ideal for branded and promotional thermal paper rolls.
Equipped with a stable air-shaft unwinding system and magnetic powder brake, and a circular blade slitting unit, the machine delivers consistent, high-quality rolls even at higher speeds.
1450mm Wide Slitting Capacity: Processes larger jumbo rolls for high-volume production.
1-Color Flexo Printing: Prints both front and back for branded and promotional rolls.
Semi-Automatic Operation: Includes multiple automated functions to reduce manual work and improve efficiency.
Auto Core Loading: Automatically feeds paper cores for smoother operation.
Auto Glue Spray: Ensures uniform core bonding and reliable rewinding.
Auto Cross Cutting: Provides precise roll cutting during production.
Auto Roll Push-Out: Finished rolls are automatically discharged, improving workflow.
Stable Tension Control: Air-shaft unwinding with magnetic powder brake ensures consistent tension.
Ultra-wide 1450mm slitting width for high-capacity production.
1.Integrated printing and slitting for streamlined workflow.
2.Semi-automatic system to reduce labor intensity.
3.Front & back printing for high-value, branded rolls.
4.Reliable operation with stable tension and precise slitting.
5.Heavy-duty structure for long-term durability.
| MODEL | CP-S1450AC |
| SLITTING LAYER | SINGLE LAYER |
| SLITTING WIDTH | 1450 MM |
| SLITTING THICKNESS | 40–120 GR/M² |
| UNWINDING DIAMETER | 1000 MM |
| UNWINDING TYPE | AIR SHAFT |
| UNWINDING CORE SIZE | 3 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | 30 MM (MIN.) |
| REWINDING DIAMETER | 30–180 MM (MAX.) |
| REWINDING SHAFT | 10–25 MM |
| SLITTING UNIT | 10 PCS CIRCLE BLADES |
| WALL THICKNESS | 38 MM |
| AUTO CORE LOADING | YES |
| SHAFT LENGTH | 1450 MM |
| SHAFT SIZE | 10–30 MM |
| CORE LOADING SPEED | 100 PCS/MIN (MAX.) |
| MECHANICAL SPEED | 260 M/MIN (MAX.) |
| WORKING SPEED | 250 M/MIN (MAX.) |
| PRINTING SPEED | 180 M/MIN (MAX.) |
| POWER SUPPLY | 380 V, 3 PHASES, 50 HZ |
| AIR POWER SUPPLY | 0.8 MPA (MIN.) |
| MACHINE SIZE | SUBJECT TO THE LINE |
* Other specifications are offered at request.
