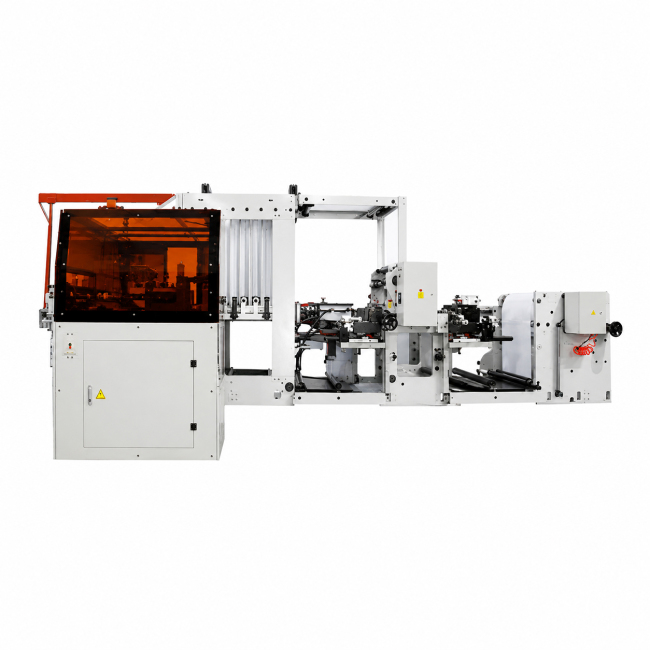

CP-S1450ACCCC Thermal Paper Slitter Rewinder with 4-Color Flexo Printing
CP-S1450ACCCC is a semi-automatic thermal paper slitting machine with 4-color flexo printing, designed for producing high-end POS rolls, ATM receipts, and large promotional thermal paper rolls. Its 1450mm wide slitting capacity combined with 4-color inline printing enables complex, premium branding directly on rolls.
CP-S1450ACCCC Thermal Paper Slitter Rewinder is designed for converters targeting the high-value and customized thermal paper market. With 4-color inline flexo printing, the machine allows for detailed logos, patterns, promotional graphics, and full-color designs on both sides of the rolls, creating premium products with strong visual impact.
The semi-automatic system includes auto core loading, auto glue spray, auto cross cutting, and auto roll push-out, reducing manual labor while keeping operation flexible. The air-shaft unwinding system with magnetic powder brake provides stable tension control, while the circular blade slitting unit ensures precise cutting at high production speed.
1450mm Wide Slitting Capacity: Handles jumbo rolls for high-volume production.
4-Color Flexo Printing: Supports complex, full-color logos and graphics for premium branded rolls.
Semi-Automatic Operation: Reduces labor while maintaining flexible, reliable workflow.
Auto Core Loading: Automatically feeds cores for smoother and faster operation.
Auto Glue Spray: Ensures consistent bonding between paper and core.
Auto Cross Cutting: Accurate and efficient cutting of each roll.
Auto Roll Push-Out: Finished rolls are discharged automatically, streamlining production.
Stable Tension Control: Air-shaft with magnetic powder brake ensures consistent roll tightness.
1.Wide 1450mm slitting width for large-scale and high-volume production.
2.ntegrated 4-color printing and slitting for premium, high-value products.
3.Semi-automatic design reduces manual operation and improves efficiency.
4.Prints both front and back for high-end customized rolls.
5.Precise cutting with 10 circular blade unit ensures consistent quality.
6.Heavy-duty, durable construction for long-term reliability.
| MODEL | CP-S1450ACCCC |
| SLITTING LAYER | SINGLE LAYER |
| SLITTING WIDTH | 1450 MM |
| SLITTING THICKNESS | 40–120 GR/M² |
| UNWINDING DIAMETER | 1200 MM |
| UNWINDING TYPE | AIR SHAFT |
| UNWINDING CORE SIZE | 3 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | 30 MM (MIN.) |
| REWINDING DIAMETER | 30–160 MM (MAX.) |
| REWINDING SHAFT | 10–25 MM |
| SLITTING UNIT | 10 PCS CIRCLE BLADES |
| WALL THICKNESS | 38 MM |
| AUTO CORE LOADING | YES |
| SHAFT LENGTH | 1450 MM |
| SHAFT SIZE | 10–30 MM |
| CORE LOADING SPEED | 100 PCS/MIN (MAX.) |
| MECHANICAL SPEED | 260 M/MIN (MAX.) |
| WORKING SPEED | 250 M/MIN (MAX.) |
| PRINTING SPEED | 250 M/MIN (MAX.) |
| FLEXO COLOR OF PRINTING | 4 COLOR |
| PAPER ACCUMULATION UNIT | YES |
| POWER SUPPLY | 380 V, 3 PHASES, 50 HZ |
| AIR POWER SUPPLY | 0.8 MPA (MIN.) |
| MACHINE SIZE | SUBJECT TO THE LINE |
* Other specifications are offered at request.
