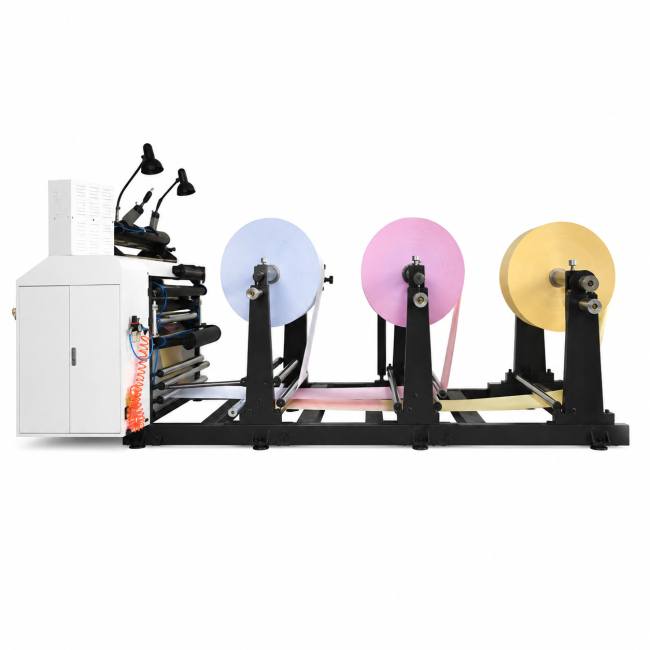

CP-S650C 3L Thermal Paper Slitter Rewinder for Three-Layer Rolls
CP-S650C 3L is a manual thermal paper slitting machine for three-layer rolls, designed for producing POS rolls, ATM receipts, and cash register paper. Its 650mm slitting width allows compact, high-precision production of 3-ply thermal paper rolls.
CP-S650C 3L Thermal Paper Slitter Rewinder is built for converters who need efficient production of three-layer thermal paper rolls. By integrating three layers in a single slitting process, it reduces manual lamination steps and ensures consistent roll quality.
The machine features an air-shaft unwinding system with magnetic powder brake for smooth feeding and stable tension. A 10-piece circular blade slitting unit provides accurate cutting, while the adjustable rewinding shaft accommodates different roll diameters.
This three-layer design is ideal for POS, ATM, and medical applications, where multiple layers improve durability and print visibility.
Three-Layer Slitting: Efficiently produces 3-ply thermal paper rolls in a single process.
Compact 650mm Width: Perfect for small- to medium-width roll production.
Stable Tension Control: Air-shaft with magnetic powder brake ensures uniform roll tightness.
Precise Slitting: 10 circular blade system delivers accurate and consistent cutting.
Flexible Rewinding: Adjustable shaft accommodates various roll diameters (25–200mm).
Durable Frame: 30mm wall thickness provides long-term stability.
1.Efficient dual-layer slitting for POS and ATM rolls.
2.Stable rewinding with reliable tension control.
3.Compact design fits smaller production facilities.
4.Precise cutting with 10 circular blade unit.
5.Flexible roll size options for diverse customer needs.
6.Heavy-duty, durable construction for reliable operation
| MODEL | CP-S650C 3L |
| SLITTING LAYER | THREE LAYER |
| SLITTING WIDTH | 650 MM |
| SLITTING THICKNESS | 40–120 GR/M² |
| UNWINDING DIAMETER | 1200 MM |
| UNWINDING TYPE | AIR SHAFT |
| UNWINDING CORE SIZE | 3 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | 20 MM (MIN.) |
| REWINDING DIAMETER | 250 MM (MAX.) |
| REWINDING SHAFT | 8–50 MM |
| SLITTING UNIT | 10 PCS CIRCLE BLADES |
| WALL THICKNESS | 30 MM |
| MECHANICAL SPEED | 200 M/MIN (MAX.) |
| WORKING SPEED | 180 M/MIN (MAX.) |
| POWER SUPPLY | 380 V, 3 PHASES, 50 HZ, 2.2 KW |
| AIR POWER SUPPLY | 0.8 MPA (MIN.) |
* Other specifications are offered at request.
