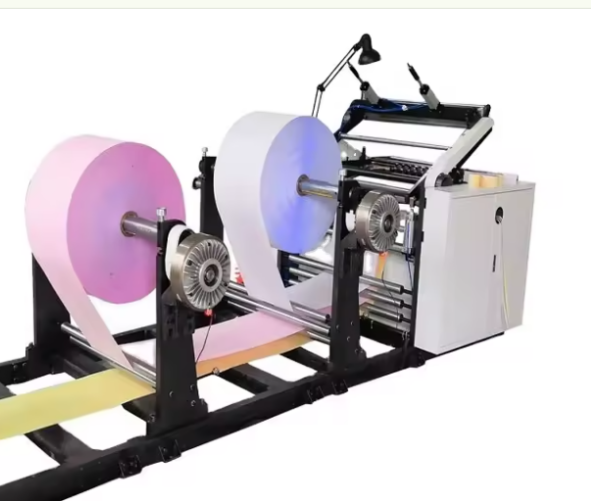

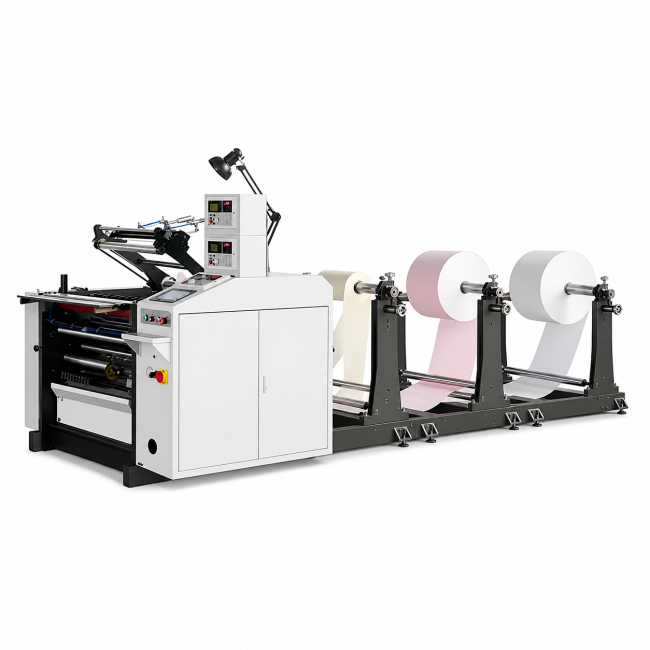

CP-S900C 2L Two-Layer Thermal Paper Slitter Rewinder for POS Roll Production
CP-S900C 2L is a two-layer thermal paper slitting machine designed for producing POS rolls, ATM receipts, and thermal paper rolls. With a working speed of up to 180m/min, PLC touch-screen control, and stable tension adjustment, it enables efficient dual-layer roll production with consistent quality.
CP-S900C 2L Thermal Paper Slitter Rewinder is designed for converters who require higher productivity and efficient multi-layer processing. Its two-layer slitting capability allows simultaneous processing of two layers, significantly improving production output compared to single-layer machines.
Equipped with a PLC touch-screen control system, operators can easily adjust parameters and tension according to different roll specifications, reducing setup time and improving operational efficiency. The air-shaft unwinding system with magnetic powder brake ensures stable tension control throughout the slitting process.
A 10 circular blade slitting unit provides stable and accurate cutting across both layers, while end mark rollers automatically add marks inside the finished rolls for easier roll identification.
Two-Layer Slitting Capability: Enables simultaneous processing of two layers, increasing production efficiency and output.
PLC Touch Screen Control: Simplifies machine operation and parameter adjustment for faster setup.
Stable Tension Control: Air-shaft unwinding with magnetic powder brake ensures consistent tension across both layers.
Flexible Tension Adjustment: Easily adjust tension based on roll weight for stable rewinding performance.
End Mark Rollers: Automatically add an end mark on the inside of each roll for easy identification.
Circular Blade Slitting Unit: 10 circular blades provide stable and consistent slitting performance.
1.Efficient two-layer thermal paper slitting for increased productivity.
2.900mm slitting width suitable for standard jumbo rolls.
3.PLC touch-screen interface for easy operation and setup.
4.Stable unwinding with magnetic powder brake tension control.
5.Flexible rewinding shafts compatible with different core sizes.
6.Durable machine structure with 30mm wall thickness.
| MODEL | CP-S900C 2L |
| SLITTING LAYER | TWO LAYER |
| SLITTING WIDTH | 900 MM |
| SLITTING THICKNESS | 40–120 GR/M² |
| UNWINDING DIAMETER | 1200 MM |
| UNWINDING TYPE | AIR SHAFT |
| UNWINDING CORE SIZE | 3 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | 25 MM (MIN.) |
| REWINDING DIAMETER | 180 MM (MAX.) |
| OPTIONAL | 200 MM (MAX.) |
| REWINDING SHAFT | 8–50 MM |
| SLITTING UNIT | 10 PCS CIRCLE BLADES |
| WALL THICKNESS | 30 MM |
| MECHANICAL SPEED | 200 M/MIN (MAX.) |
| WORKING SPEED | 180 M/MIN (MAX.) |
| POWER SUPPLY | 380 V, 3 PHASES, 50 HZ, 2.2 KW |
| AIR POWER SUPPLY | 0.8 MPA (MIN.) |
| NET WEIGHT | 1900 KG |
| MACHINE SIZE | 2900 × 1400 × 1450 MM |
* Other specifications are offered at request.
