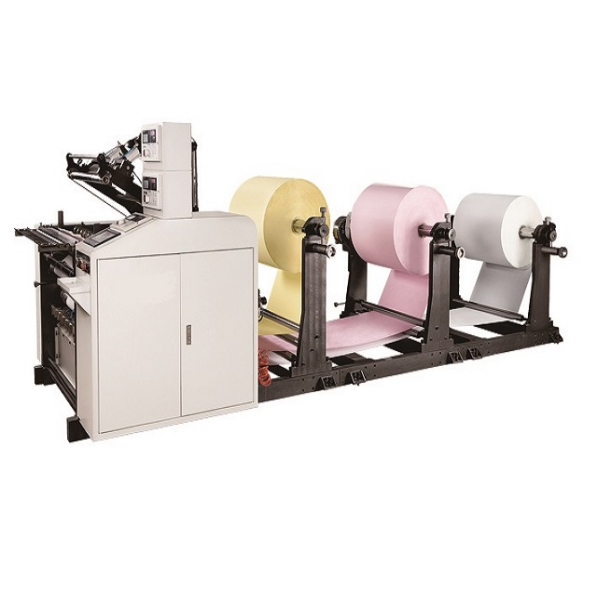

CP-S900C 3L Three-Layer Thermal Paper Slitter Rewinder for POS and ATM Rolls
CP-S900C 3L is a three-layer thermal paper slitting machine designed for producing POS rolls, ATM receipts, and thermal paper rolls. With a working speed of up to 180m/min, PLC touch-screen control, and stable tension adjustment, it enables efficient and precise multi-layer roll production.
CP-S900C 3L Thermal Paper Slitter Rewinder is engineered for converters who need high-quality multi-layer roll production. Its three-layer slitting design allows simultaneous processing of multiple layers, improving production efficiency and material utilization.
Equipped with a PLC touch-screen control system, operators can quickly adjust parameters and tension according to roll specifications, reducing setup time. The air-shaft unwinding system with magnetic powder brake ensures stable tension throughout the slitting process.
A 10 circular blade slitting unit provides accurate cutting across all three layers, while end mark rollers automatically add marks inside the finished rolls for easier roll identification.
Three-Layer Slitting Capability: Allows simultaneous processing of three layers of thermal paper, improving efficiency and material use.
PLC Touch Screen Control: Simplifies parameter adjustment and machine operation for fast setup and consistent production.
Stable Tension Control: Air-shaft unwinding with magnetic powder brake maintains uniform tension across all layers.
Flexible Tension Adjustment: Quickly adapt tension according to roll weight to ensure smooth rewinding.
End Mark Rollers: Automatically add an end mark on the inside of each roll for easy identification.
Circular Blade Slitting Unit: 10 circular blades provide precise slitting across three layers for consistent roll output.
1.Efficient three-layer thermal paper slitting for multi-layer rolls.
2.900mm slitting width suitable for standard jumbo rolls.
3.PLC touch-screen interface for easy operation and setup.
4.Smooth unwinding with magnetic powder brake tension control.
5.Flexible rewinding shafts compatible with various core sizes.
6.Sturdy and durable machine structure with 30mm wall thickness.
| MODEL | CP-S900C 3L |
| SLITTING LAYER | THREE LAYER |
| SLITTING WIDTH | 900 MM |
| SLITTING THICKNESS | 40–120 GR/M² |
| UNWINDING DIAMETER | 1200 MM |
| UNWINDING TYPE | AIR SHAFT |
| UNWINDING CORE SIZE | 3 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | 25 MM (MIN.) |
| REWINDING DIAMETER | 180 MM (MAX.) |
| OPTIONAL | 200 MM (MAX.) |
| REWINDING SHAFT | 8–50 MM |
| SLITTING UNIT | 10 PCS CIRCLE BLADES |
| WALL THICKNESS | 30 MM |
| MECHANICAL SPEED | 200 M/MIN (MAX.) |
| WORKING SPEED | 180 M/MIN (MAX.) |
| POWER SUPPLY | 380 V, 3 PHASES, 50 HZ, 2.2 KW |
| AIR POWER SUPPLY | 0.8 MPA (MIN.) |
| NET WEIGHT | 1900 KG |
| MACHINE SIZE | 2900 × 1400 × 1450 MM |
* Other specifications are offered at request.
