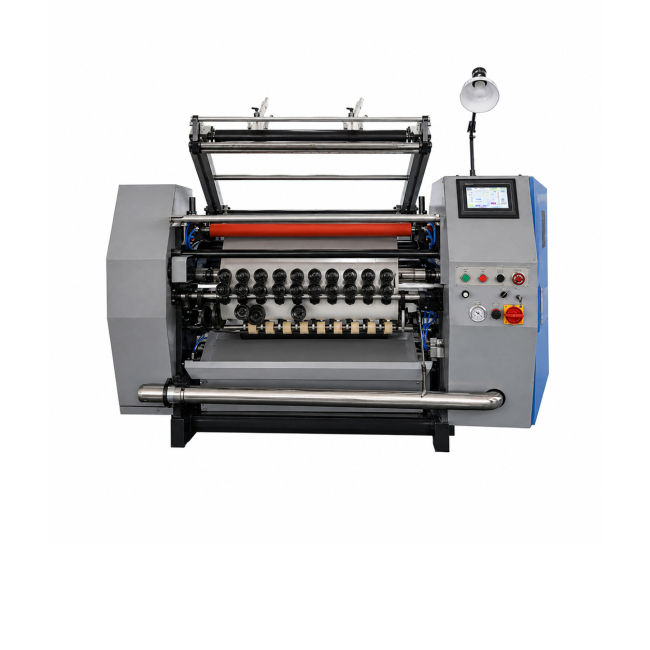

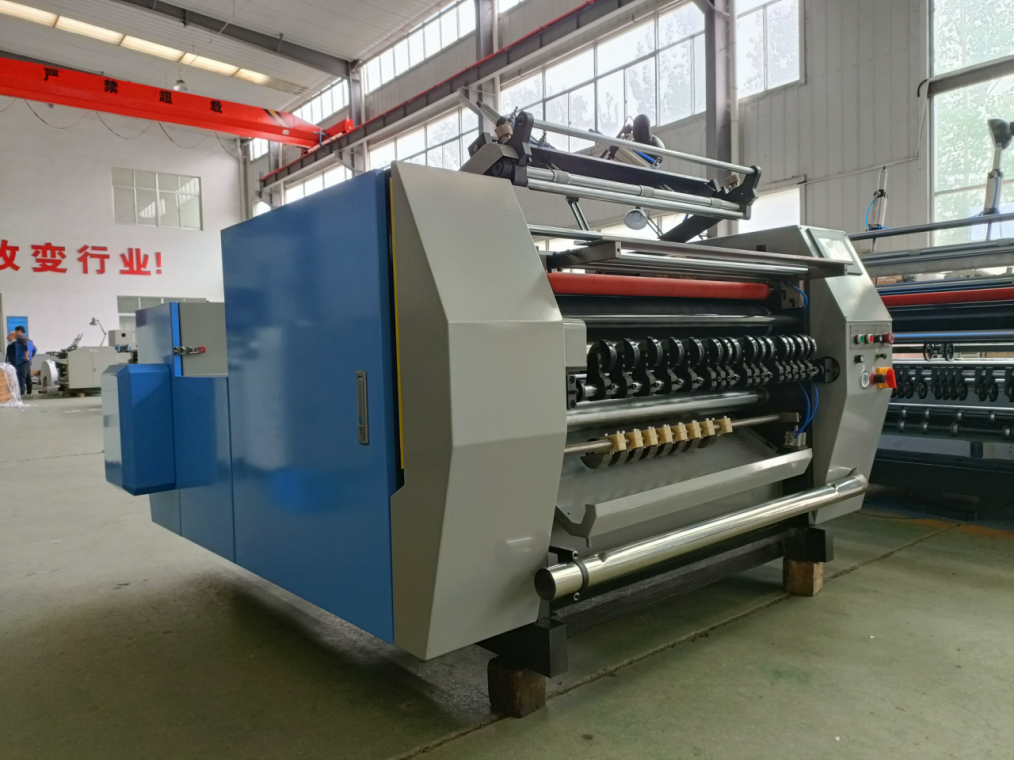

CP-S900C SO Thermal Paper Slitter Rewinder with Servo Motor Control
CP-S900C SO is a thermal paper slitting machine with servo motor control, designed for producing POS rolls and ATM receipts. With a working speed of up to 180m/min, it delivers more precise tension control and improved roll quality compared to standard models.
CP-S900C SO Thermal Paper Slitter Rewinder is an upgraded version of the standard model, equipped with a servo motor system for enhanced control and performance. It is designed for converters who require higher precision and more consistent roll quality in thermal paper production.
With servo-driven control, the machine ensures smoother rewinding and more stable tension throughout the slitting process, especially when handling narrow rolls or small core sizes. This helps improve roll tightness and overall product consistency.
The machine is equipped with an air-shaft unwinding system and magnetic powder brake, providing reliable material feeding and stable operation. Combined with a 10 circular blade slitting unit, it ensures efficient and consistent production performance.
Servo Motor Control: Provides more precise control of rewinding and tension, improving roll consistency and quality.
Stable Tension Performance: Ensures smooth and consistent tension throughout the slitting process.
Improved Rewinding Quality: Produces tighter and more uniform rolls, especially for small sizes.
Easy Parameter Adjustment: Simplifies operation and reduces manual fine-tuning during production.
Circular Blade Slitting Unit: 10 circular blades deliver stable and consistent slitting performance.
Air Shaft Unwinding System: Ensures stable material feeding during high-speed operation.
1.Servo motor system for higher precision and stability.
2.900mm slitting width suitable for standard jumbo rolls.
3.Working speed up to 180m/min for efficient production.
4.Stable unwinding with magnetic powder brake tension control.
5.Suitable for producing high-quality thermal paper rolls.
6.Durable structure with 30mm wall thickness.
| MODEL | CP-S900C |
| SLITTING LAYER | SINGLE LAYER |
| SLITTING WIDTH | 900 MM |
| SLITTING THICKNESS | 40–120 GR/M² |
| UNWINDING DIAMETER | 1200 MM |
| UNWINDING TYPE | AIR SHAFT |
| UNWINDING CORE SIZE | 3 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | 20 MM (MIN.) |
| REWINDING DIAMETER | 300 MM (MAX.) |
| REWINDING SHAFT | 8–50 MM |
| SLITTING UNIT | 10 PCS CIRCLE BLADES |
| WALL THICKNESS | 30 MM |
| MECHANICAL SPEED | 200 M/MIN (MAX.) |
| WORKING SPEED | 180 M/MIN (MAX.) |
| POWER SUPPLY | 380 V, 3 PHASES, 50 HZ, 2.2 KW |
| AIR POWER SUPPLY | 0.8 MPA (MIN.) |
| NET WEIGHT | 1500 KG |
| MACHINE SIZE | 1800 × 1700 × 1450 MM |
* Other specifications are offered at request.
