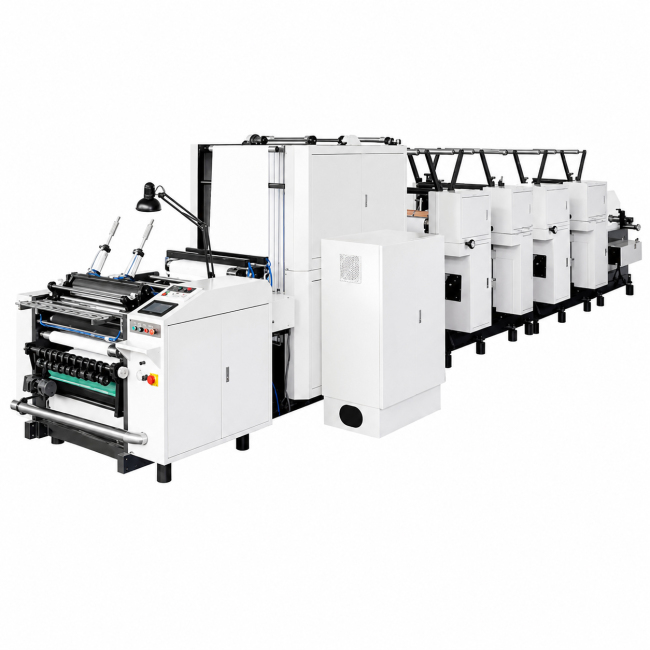

CP-S900C 1C/2C/4C Inline Flexo Printing Thermal Paper Slitting Machine 1 Color 2 Colors 3 Colors 4 Colors
CP-S900C 1C/2C/4C is a manual thermal paper slitting with 1—4 color inline printing function for producing the rolls machine of Thermal Paper, Fax Paper, Cash Register Paper, POS Paper, Computer Bill, Medical Record Paper, ATM Receipt, Lottery and so on.
CP-S900C 1C/2C/4C are our inline printing(1 color/2 colors/4 colors) manual thermal paper slitting machinefor printing and slitting various thermal paper rolls, such as POS /ATM/Cash register/ECG/Medical/Lottery paper rolls and so on.
1. Auto Tension Control;
2. Easy Installing and Quick Operation Learning;
3. 24*7 Hours Online Service;
4. Equipped With Flatten Roller, Completely Separated;
5. Random Adjust the Tightness of the Roll;
6. Precise Slitting, Fast Speed, Perfect Edge Slitting
| MODEL | CP-S900C 1C/2C/4C |
| SLITTING LAYER | SINGLE LAYER |
| SLITTING WIDTH | 650MM |
| SLITTING THICKNESS | 40-120GR/㎡ |
| UNWINDING DIAMETER | 1100MM |
| UNWINDING TYPE | AIR SHAFT |
| UNWINDING CORE SIZE | 3 INCH |
| UNWINDING BRAKE TYPE | MAGNETIC POWDER BRAKE |
| REWINDING WIDTH | 25MM(MIN.) |
| REWINDING DIAMETER | 230MM (MAX.) |
| REWINDING SHAFT | 8-50MM |
| SLITTING UNIT | 10PCS CIRCLE BLADE |
| WALL THICKNESS | 30MM |
| MECHANICAL SPEED | 180M/MIN (MAX.) |
| WORKING SPEED | 180M/MIN (MAX.) (WITHOUT PRINTING FUNCTION) |
| WORKING SPEED | 100M/MIN (MAX.)( WITH PRINTING FUNCTION) |
| POWER SUPPLY | 380V,3PHASES, 50Hz |
| MAIN MOTOR POWER | 2.2KW |
| PRINTING UNIT POWER | 4.8KW |
| DRYING UNIT POWER | 13.4KW(6.7KW/UNIT) |
| DRYING WAY | LIGHT HEATHING WITH HOT AIR BLOW |
| AIR POWER SUPPLY | 0.6 Mpa (MINI) |
| N.W | 3800 KG |
| MACHINE SIZE | 6050MM*1450MM*1950MM |
* Other specifications are offered at request.
