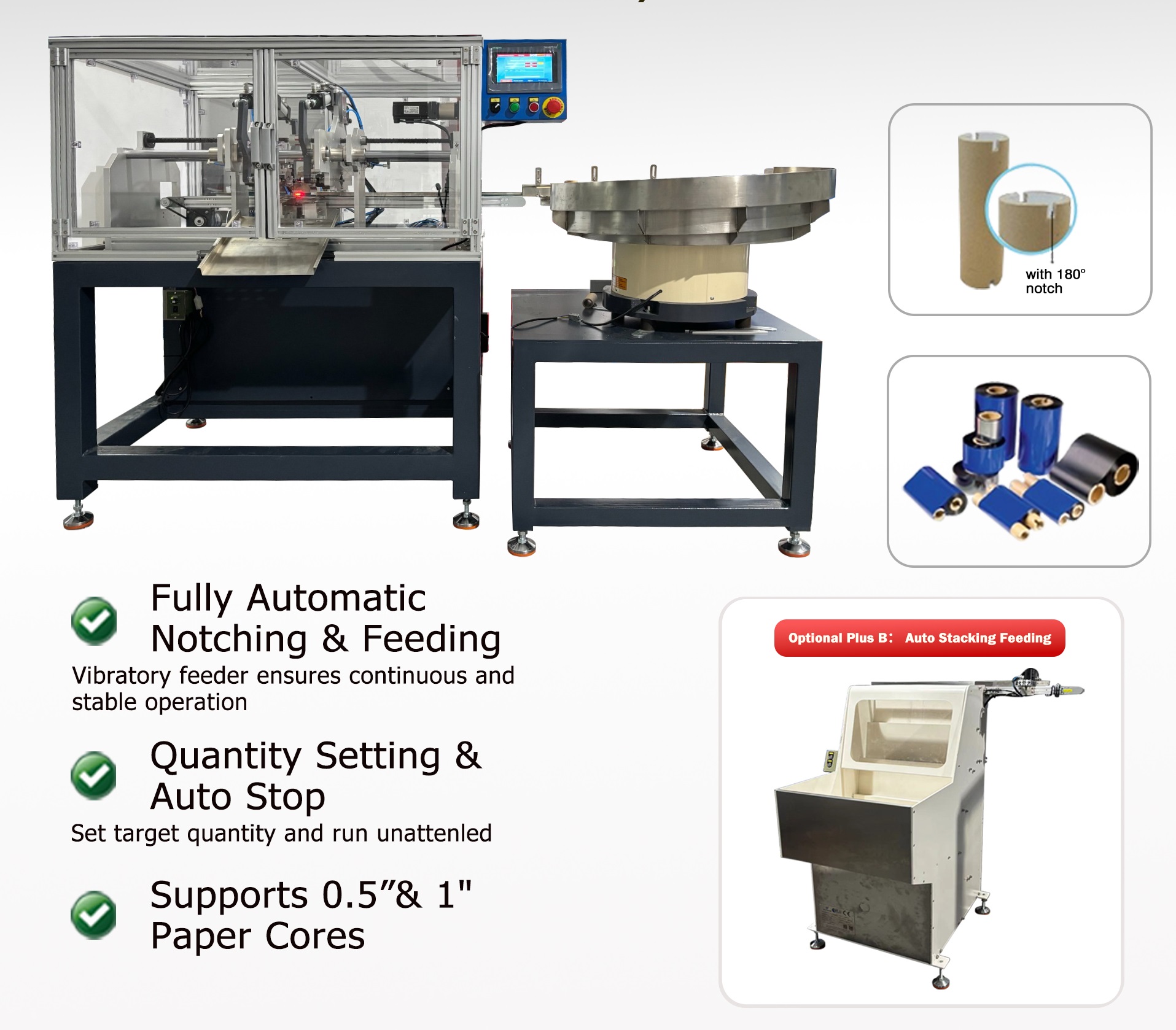

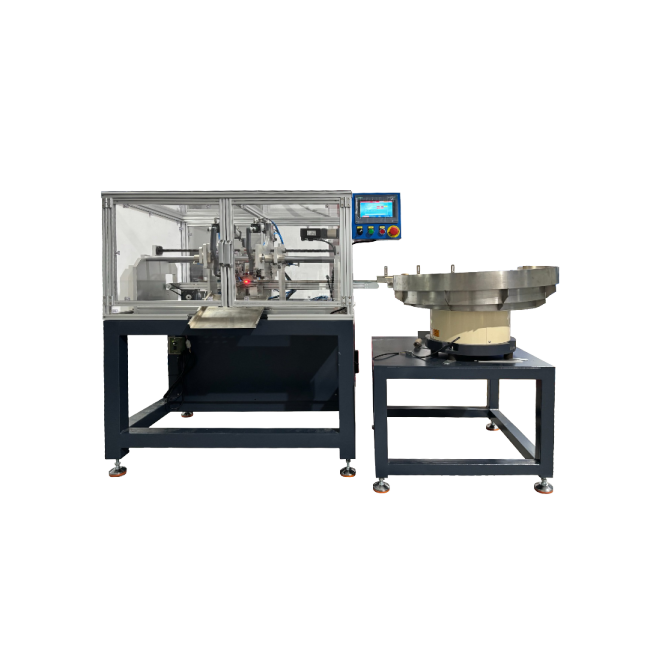

Fully Automatic Notch Cutter
Fully Automatic Notch Cutting Machine is specially designed for TTR industry.
It is used to cut notch for half inch and 1 inch paper core which is used to rewind barcode ribbon
This auto notch cutter can make notch for both 1 inch and 1/2 inch paper core.
Notch Size: 4mm*7mm
Paper Core Size: 1 inch( 25.6-25.8mm) &1/2 inch (12.7mm-13mm)
Wall Thickness: 2-6mm
Paper Core Length：60mm-220mm （Longer Length core can be customized）
180 Degree Notches
Producing Capacity: 10-20 pcs/min
Function:
1) auto core loading on the machine;
2) auto notch making;
3) counting the pcs and stop automaticly when reach the setting qty.
Application Industry:
Notched core for Themal transfer ribbons, long notched core for wrap films.
1.Auto core loading on the machine;
2.Auto notch making;
3.Counting the pcs and stop automaticly when reach the setting qty.
4.High Producing Capacity: 10-20 pcs/min
| SIZE OF CUTTING NOTC | 7mmX4mm or Customize |
| ANGLE OF NOTCH | 180 DEGREE |
| MAX CUTTING THICKNESS | 1-4MM |
| SUITABLE CUTTING CORE SIZE | 5.1/2 INCH AND 1 INCH CORE |
| CORE LENGTH | 60-500mm |
| N.W. | 210KGS |
| G.W. | 250KGS |
| DIMENSION | 153CM*121CM*150CM |
| PACKING SIZ | 13.165CM*135CM*156CM |
* Other specifications are offered at request.
