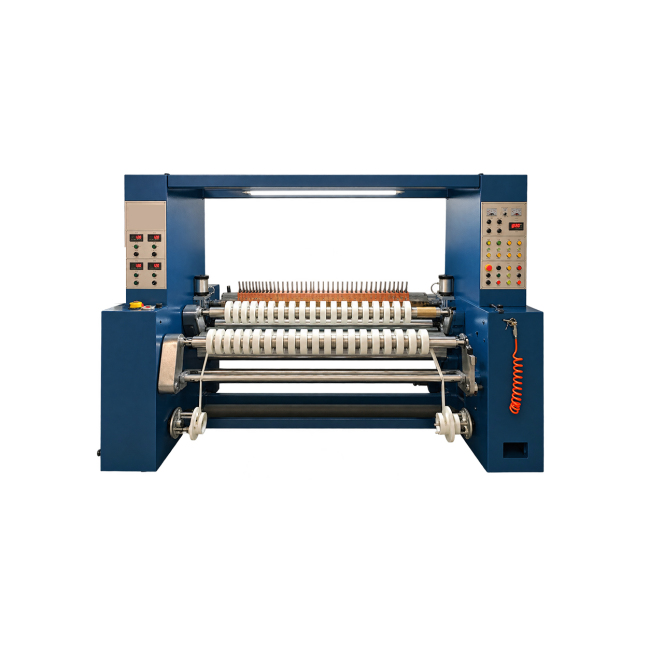

Polyester Satin Garment Label Clothing Label Woven Fabric Slitter FY1600J

FY1600J is a Heating Blade Slitter, It Can Slit Polyester Satin,Taffeta,Woven Fabric,Bonding Fabric,Garment Label,Care Label,Clothing Labels and So On.

Max Slitting Width 1600mm, Mini Slitting Width 10mm, It Is One of Our Most Popular Standard Slitter for Fabric,Care Label Industry.

$20,000.00$18,000.00

Have chosen: There are no options selected.

Start To Order

Added To Cart Successfully!

Polyester Satin Garment Label Clothing Label Woven Fabric Slitter FY1600J
Polyester Satin Garment Label Clothing Label Woven Fabric Slitter FY1600J
Polyester Satin Garment Label Clothing Label Woven Fabric Slitter FY1600J
Polyester Satin Garment Label Clothing Label Woven Fabric Slitter FY1600J
Polyester Satin Garment Label Clothing Label Woven Fabric Slitter FY1600J
Polyester Satin Garment Label Clothing Label Woven Fabric Slitter FY1600J

Polyester Satin Garment Label Clothing Label Woven Fabric Slitter FY1600J

FY1600J is a Heating Blade Slitter, It Can Slit Polyester Satin,Taffeta,Woven Fabric,Bonding Fabric,Garment Label,Care Label,Clothing Labels and So On.

Max Slitting Width 1600mm, Mini Slitting Width 10mm, It Is One of Our Most Popular Standard Slitter for Fabric,Care Label Industry.


$20,000.00$18,000.00
Send Inquiry
Order Sample

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

APPLICATION

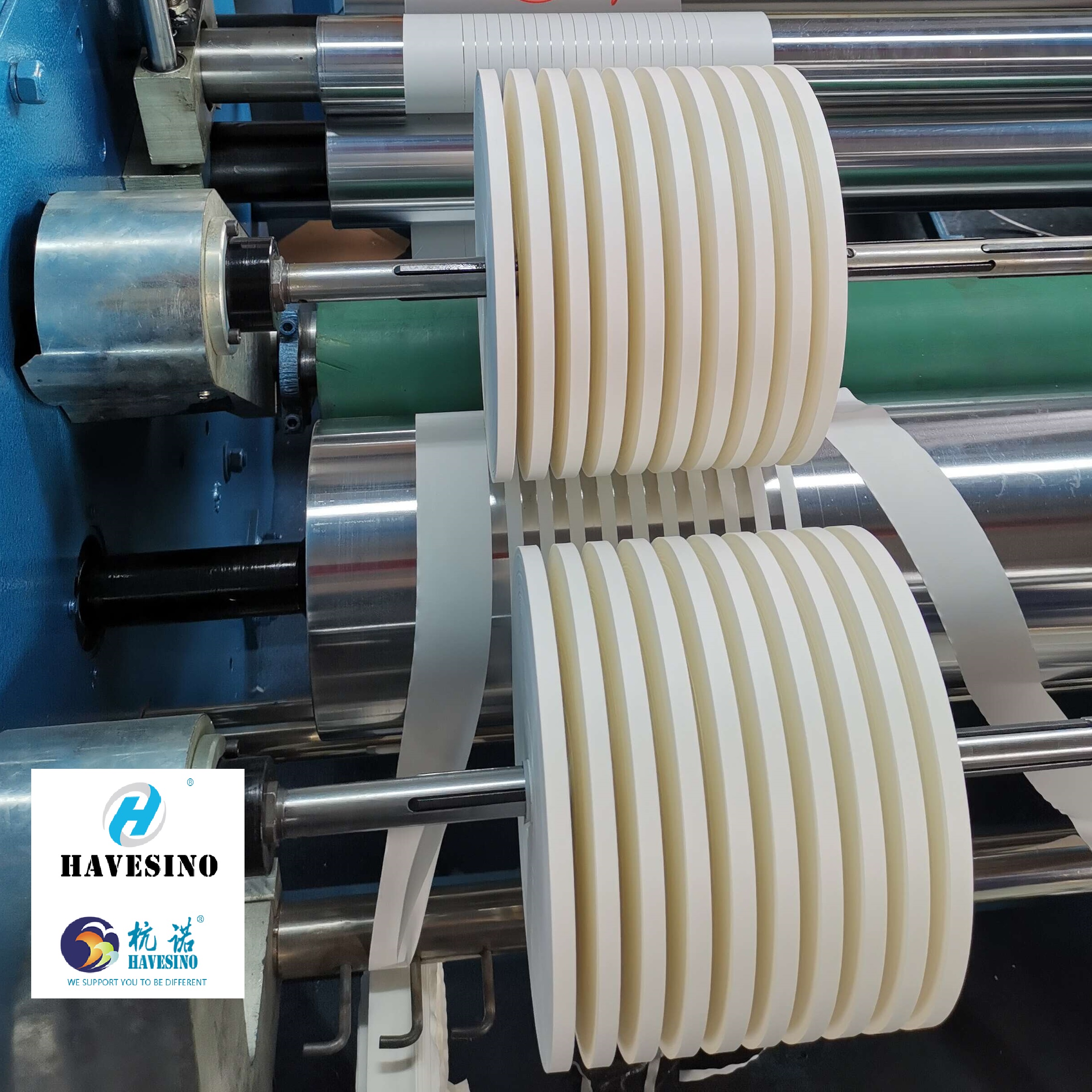

This Satin Fabric Slitting Machine FY1600J is suitable to slit and rewind  polyester satin, Mesh Ribbon, Organza Ribbon, Velvet Ribbon, Medical Warp Elastic Fabric, Release Fabric and otherindustry fabrics.The heated baldes could be choosen with edge sealing units made the machine suitable for woven fabric slitting.

SPECIFICATION

1SLITTING WIDTH    1620MM
2UNWINDING DIAMETER600MM(MAX)
3UNWIND CORE SHAFT  AIR SHAFT
4UNWINDING CORE SIZE25.4MM(1 INCH),40MM(1.5 INCH) or 76MM(3 INCH)
5UINWINDING CORE QTY1PC
6REWINDING WIDTHMIN.10MM
7REWINDING DIA.300MM(MAX.)
8REWINDING CORE SIZE    25.4MM(1 INCH),40MM(1.5 INCH) or 76MM(3 INCH)
9REWINDING CORE TYPEAIR SHAFT
10REWINDING CORE QTY 2 PCS
11BLADE TYPEHEATING STRAIGHT BLADE
12BLADE QTY40PCS
13MECHANICAL SPEED 120M/MIN
14WORKING SPEED30-80M/MIN
15POWER SUPPLY380V, 3 PHASES, 0.6Mpa
16MACHINE DIMENSION2540MM*2500MM*1200MM
17PACKING DIMENSION2700MM*1250MM*1910MM
18G.W. 1.4 TONS



FEATURES

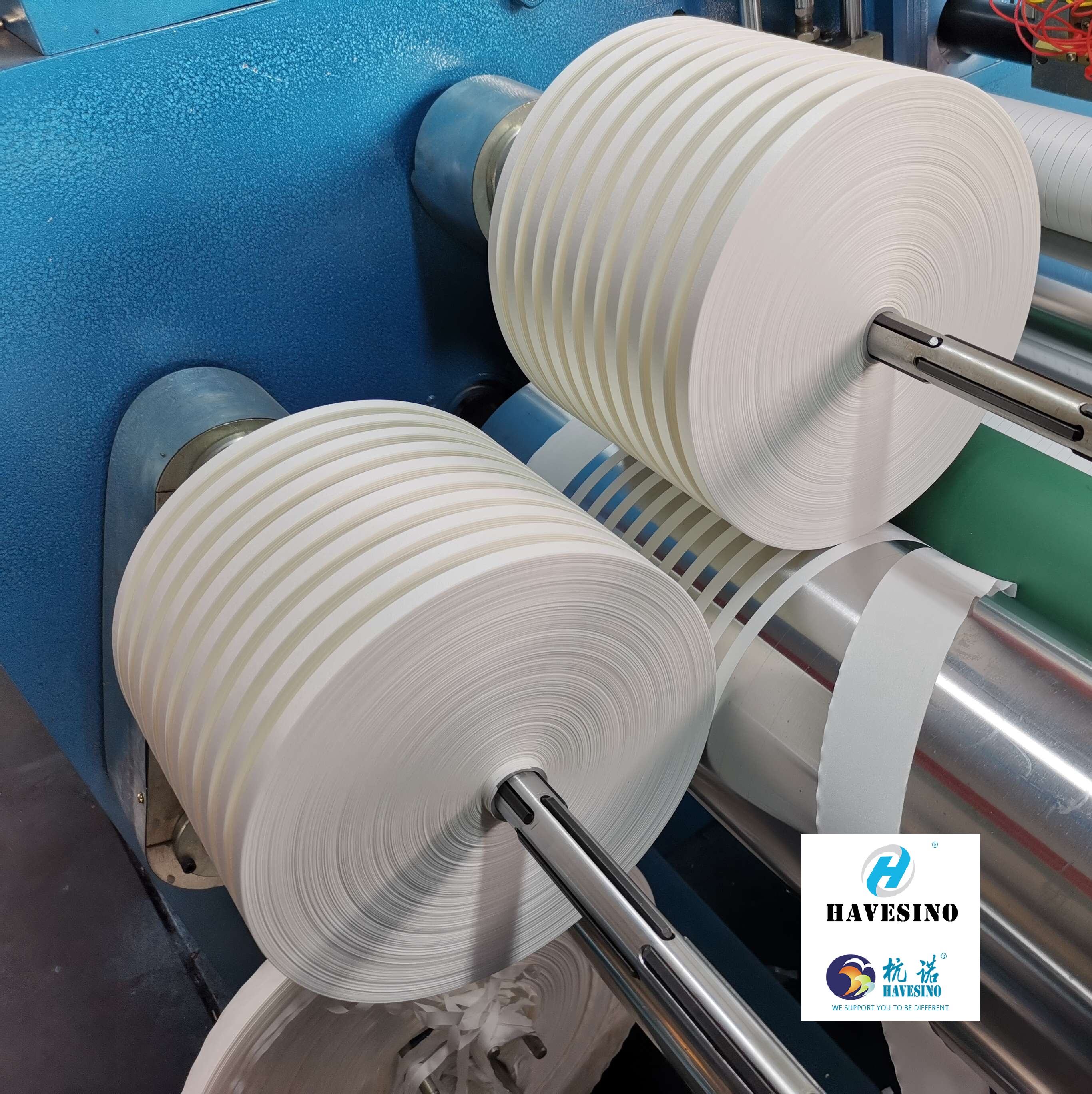

A. Mini Slitting Wdith 10mm.

B. Slitting Width from 10mm-3300mm.

C. Special roller design for better tension control

D. Extral presser roller design make sure the rewind rolls compact and even

E.  heating blade with edge sealing function

F. Used by 173 customers in 25 countries.

G. Stable quality and very reasonable Price


GUARANTEE AND SERVICE

1    ONE YEAR GURANTEE FOR THE KEY PARTS OF THE MACHINE, THE PARTS ARE AS FOLLOWING:
      MOTOR, PLC, TOUCH SCREEN,MAGNETIC POWDER CLUTCH
2    MACHINE INSTALLING AND WORKER TRAINNING SERVICE.
      A. WE CAN ARRANGE OUR ENGINEER TO YOUR FACTORY TO INSTALL AND TRAINNING YOUR WORKER
      IF YOU PAY THE VISA COST, AIR TICKET, FOOD, HOTEL AND 80USD/DAY SUBSIDY.
      B. YOU CAN ARRANGE YOUR WORKER COME OUR FACTORY TO ACCEPT TRAINNING OF INSTALLING
      AND OPERTATION, YOU NEED TO PAY THE HOTEL COST.
3.   WHOLE LIFE TECHNICAL SUPPORT.
