Slitting Rewinding Machine Flexible Packaging Material Slitter
HN800 PLUS: High-Precision Slitting Solution for Flexible Packaging Materials
The HN800 PLUS is a versatile slitting machine engineered for flexible packaging materials, including plastic films, foils, laminates, and paper-based substrates. Designed for high-precision converting applications, this flexible packaging slitter rewinder delivers stable tension control, clean-edge slitting performance, and reliable operation for demanding production environments.
With its compact machine design, precise web handling, and consistent rewinding quality, the HN800 PLUS helps converters improve slitting accuracy, reduce material waste, and maintain stable output across different flexible packaging applications.
The HN800 PLUS is a dedicated slitter rewinder developed for the flexible packaging industry. Built on 16 years of mature manufacturing experience, this model is designed to handle a wide range of flexible packaging materials from 6 to 250 microns, delivering stable slitting performance, efficient rewinding, and reliable operation for modern converting applications.
Equipped with both razor blade and shear circular blade systems, the HN800 PLUS provides flexible cutting options for different material requirements. Its shaftless unwinding system with hydraulic lifting, rewinding configuration with 3-inch friction shafts and 1-inch air shafts, and auto turret vertical unloading device help improve production efficiency and finished roll handling.
Designed for rapid deployment, the HN800 PLUS arrives fully assembled and is ready for operation after connection to power and compressed air. Supported by 24/7 online technical support, it provides a practical and efficient slitting machine solution for flexible packaging converters.
Wide Material Range:
① Designed to handle flexible packaging materials from 6 to 250 microns.
② Suitable for converters who require stable slitting performance across different material thicknesses.
Flexible Slitting Methods:
① Integrated with both razor blade and shear circular blade systems.
② Provides flexible cutting options for different flexible packaging converting requirements.
Shaftless Unwinding System:
① Equipped with a shaftless unwinding system with hydraulic lifting.
② Supports easier material loading and stable unwinding during production.
Rewinding Configuration:
① Uses 3-inch friction shafts and 1-inch air shafts for rewinding.
② Designed to support efficient rewinding and reliable finished roll quality.
Auto Turret Vertical Unloading:
① Equipped with an auto turret vertical unloading device.
② Helps improve finished roll handling efficiency and reduce manual operation.
Quick Startup & Reliable Support:
① Fully assembled before shipment for rapid deployment.
② Ready for operation after connection to power and compressed air, supported by 24/7 online technical support.

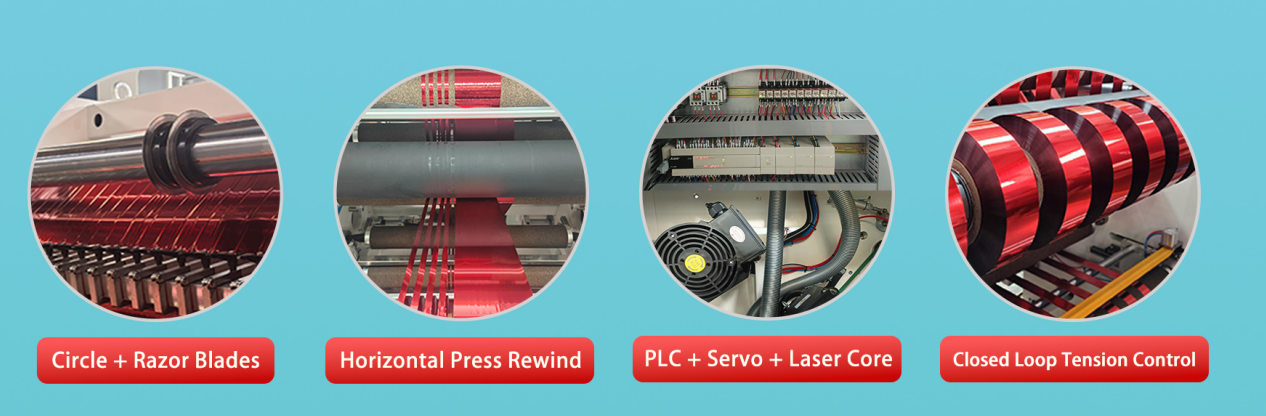

1.Closed-loop Tension Control — Fully automatic, zero manual adjustment.
2.Direct-drive Pressure Rollers — Consistent nip pressure at high speed for superior rewind quality.
3.600 m/min Max Speed — High-speed slitting without quality compromise.
4.Circular & Razor Dual Slitting — One machine, all materials.
5.Reinforced Frame — Greater stability and longer service life.
6.Independent Servo-driven rewind — Faster, more precise rewinding.
7.Next-gen Control System — Intuitive, smooth operation.
8.6–250 μm Thickness Range — Handles all common substrates.
9.Dual-Side Control Panels — Easy operation from both unwind and rewind ends.
10.Exceptional Value — Premium performance, competitive price.
| Model | HN800 PLUS |
| Slitting Thickness | 6-250μm |
| Unwinding Width | 300-800mm |
| Max Unwinding Diameter | 800 mm(OPTIONAL:1000MM) |
| Unwinding Type | SHAFTLESS 3INCH AND6 INCH |
| Max Rewinding Diameter | 600mm(OPTIONAL:800MM) |
| Min Rewinding Width | 40mm |
| Rewinding Shaft | 3 INCH FRICITION SHAFTS+1INCH AIR SHAFT |
| Slitting Unit | RAZOR BLADE+SHEAR CIRCLE BLADE |
| Mechanical Speed | 550m/min |
| Working Speed | 500m/min |
| WALL THICKNESS | 50mm |
| Waste Edge Unit | Air blower |
| Laser Position Light | 20 SETS |
| Power Supply | 380V.3-phase.50Hz |
| Air Supply | ≥0.6 Mpa |
* Other specifications are offered at request.
