Slitting Rewinding Machine

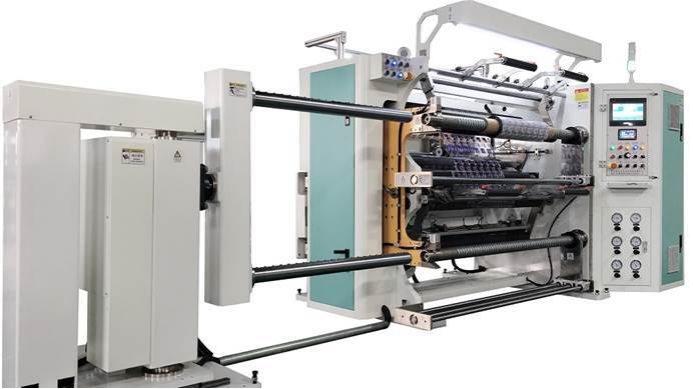

The HN800 compact slitter rewinder is a custom-developed model. With a neat, compact structure, it is ideal for production sites with limited space and narrow processing widths. It delivers exceptional performance, featuring a maximum slitting speed of 800 m/min and a minimum slitting width of just 8 mm. Boasting a small footprint and high productivity, it is known as a “little giant” in the industry. Widely applied to slitting hot stamping foil, base film and flexible packaging film, this machine has won wide recognition and popularity among industry clients.
The HN800 slitter rewinder is the ideal choice for converters seeking a small, compact slitter rewinder. It is suitable for all types of flexible packaging materials and label stock. Its compact design with an integrated unwind enables easy installation and space savings.
Processable Materials:
Plastic films: PE, PP, PET, PVC
Hot stamping foil, cold foil, graphic foil, laser foil
Paper and laminates — subject to material type and thickness
Rigid films: 10 ~ 250 microns / Soft films: 12 ~ 300 microns
Standard Configuration
- Shaftless unwind with independently adjustable arms
- Hydraulic lifting system for picking up jumbo rolls from the floor
- Closed-loop tension control on the unwind unit for precise tension regulation
- Built-in splicing table for continuous roll splicing
- Full web guiding system with edge/line guiding for all materials
- High-power blower fan for edge trimming
- Independent servo motors and drives for each rewind shaft
- Laser-assisted positioning for knife setup and core loading
- Differential winding shafts / friction winding shafts, lubrication-free
- PLC control system equipped with HMI touch screen
1. Compact and space-saving
2. Maximum slitting speed: 800 m/min
3. Minimum slitting width down to 8 mm
4. Servo motor control + HMI touch screen for easy operation
5. Short lead time and fast delivery
6. Wide material compatibility for various films, laminates and more
7. Easy blade adjustment for quick width changeover
8. High scalability, supporting optional functions such as online inspection, micro & macro perforation units, etc.
9. Fully automatic version available, including automatic blade positioning for all slitting modes
10. Cost-effective pricin
| MODEL | HN800 |
| SLITTING WIDTH | 40mm-800mm |
| SLITTING THICKNESS | 6-250 micron |
| UNWIND DIA. | 800mm |
| UNWIND CORE I.D. | shaftless 3inch |
| REWINDING DIA | 600mm |
| REWINDING WIDTH | 40mm |
| REWINDING COREI.D | 3 inch air shaft |
| SLITTING UNIT RAZOR BLADE | 10PCS |
| MECHANICAL SPEED | max 500m/min |
| WORKING SPEED | max 500m/min |
| MACHINE FRAME THICKNESS | 50mm |
| WASTE EDGE UNIT | SERVO REWINDING MOTOR |
| POWER SOURCE | 380V,3PHASE 50HZ |
| PNEUMATIC SOURCE | 0.7Mpa |
| MACHINE SIZE(REF. ONLY) | 3300mm×2550mm×1970mm |
| N.W (REF. ONLY) | 4700KG |
* Other specifications are offered at request.
