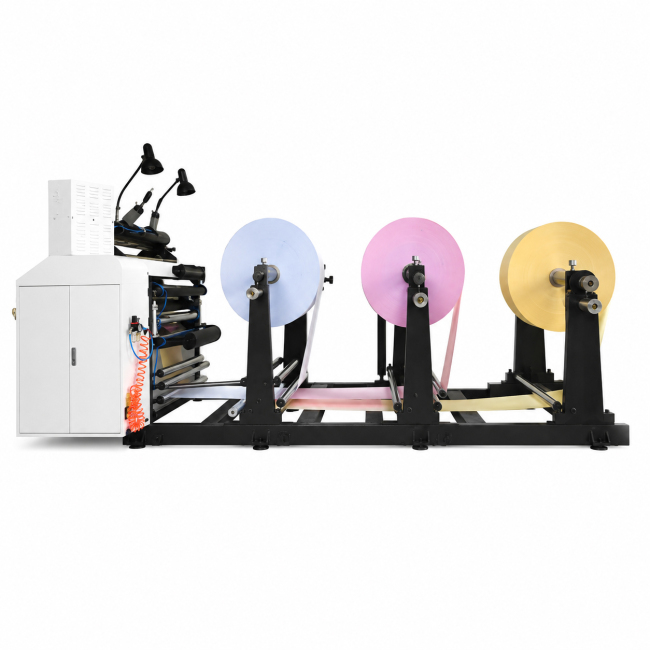

3 LAYERS THERMAL PAPER SLITTER

CP-S900C 3L is a 3 layers thermal paper slitter, it is specially designed for slittign 3 ply papers, it is very popular by South America customers3-layer ECG thermal paper roll slitter is suitable for slitting various thermal paper such as POS paper,ATM paper,tax paper,ECG,medical record paper,receipt paper,carbonless paper,adhesive label,thermal film,etc.

$15,000.00$0.00

Have chosen: There are no options selected.

Start To Order

Added To Cart Successfully!

3 LAYERS THERMAL PAPER SLITTER
3 LAYERS THERMAL PAPER SLITTER
3 LAYERS THERMAL PAPER SLITTER

3 LAYERS THERMAL PAPER SLITTER

CP-S900C 3L is a 3 layers thermal paper slitter, it is specially designed for slittign 3 ply papers, it is very popular by South America customers3-layer ECG thermal paper roll slitter is suitable for slitting various thermal paper such as POS paper,ATM paper,tax paper,ECG,medical record paper,receipt paper,carbonless paper,adhesive label,thermal film,etc.


$15,000.00$0.00

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production



Application:

CP-S900C 3L  is a 3 ply thermal paper,carbon less paper roll slitter, it can slitter with a high speed for 3 web paper. Suitable for production of  POS roll, Lottery Ticket rolls, Cash Register rolls, Invoice rolls, Fax Paper rolls, Computer Bill, Medical Record Paper, ATM Receipt and so on.







Basic specification:
ModelCP-S900C 3L
SLITTING LAYER3 LAYER
SLITTING WIDTH900MM
SLITTING THICKNESS40-120GR/M2
UNWINDING DIAMETER1200MM
UNWINDING TYPEAIR SHAFT
UNWINDING CORE SIZE3 INCH
UNWINDING BRAKE TYPEMAGNETIC POWDER BRAKE
REWINDING WIDTH25MM(MIN)
REWINDING DIAMETER180MM (MAX.)   OPTIONAL:200MM(MAX)
REWINDING SHAFT8-50MM
SLITTING UNIT10PCS CIRCLE BLADE
WALL THICKNESS30MM
MECHANICAL SPEED200M/MIN (MAX)
WORKING SPEED180M/MIN (MAX.)
POWER SUPPLY380V,3PHASES, 50Hz, 2.2KW
AIR POWER SUPPLY 0.8 Mpa (MINI)
N.W1900 KG
MACHINE SIZE 2900MM*1400MM*1450MM



Details:
