Slitting Rewinding Machine Flexible Packaging Material Slitter

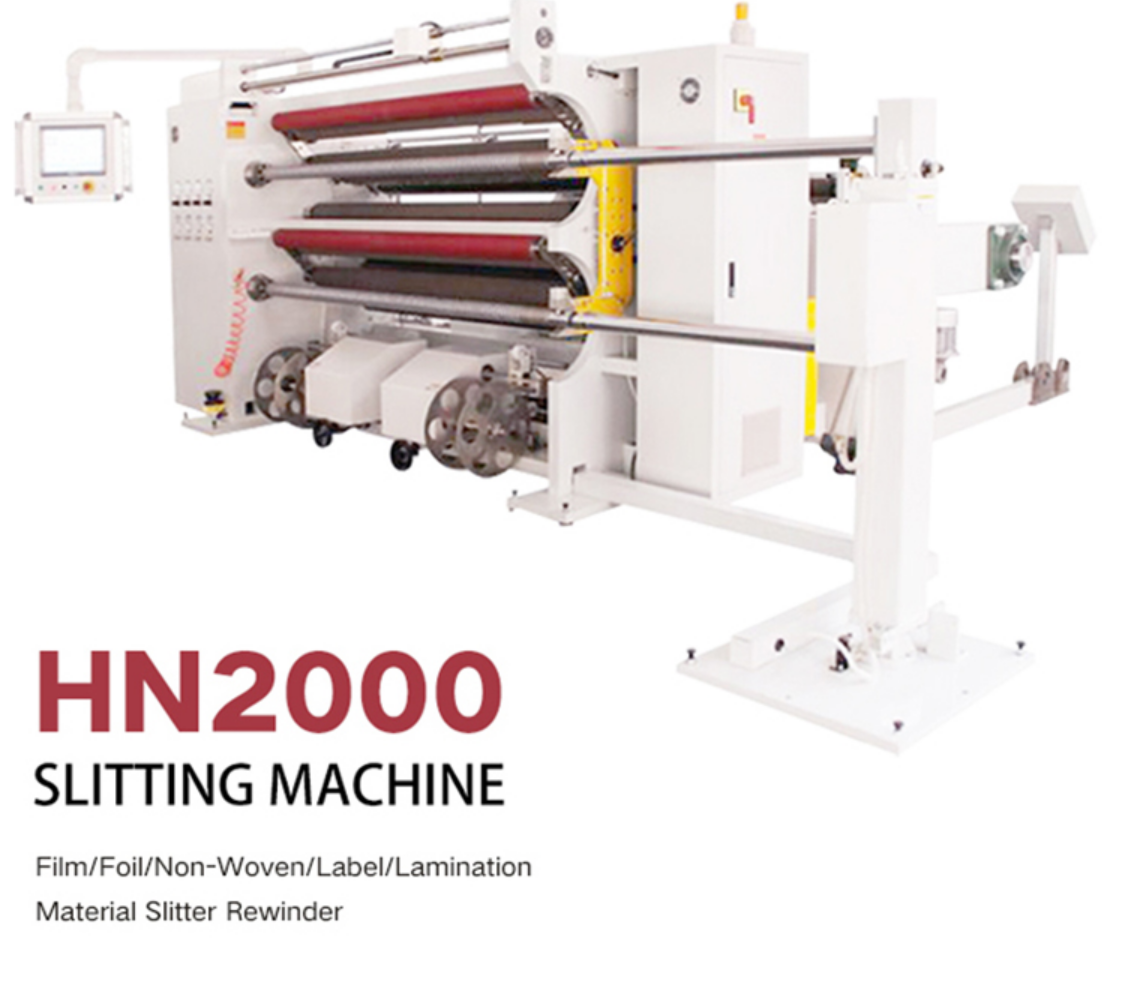

HN2000 Wide-Web Duplex Slitter Rewinder is a heavy-duty slitting solution engineered for flexible packaging and label materials, delivering exceptional stability, fast installation and excellent cost efficiency for high-volume converting production lines. The maximum slitting width can reach 2000 mm, with a material thickness range of 10 to 250 micrometers.
The HN2000 is engineered for converters requiring wide-web processing without sacrificing precision or production efficiency. Built on a mature platform with 16 years of proven performance, this model features a heavy-duty structure paired with advanced control systems to withstand demanding high-output production conditions.
With a 2000 mm maximum slitting width, it easily processes large-format jumbo rolls. The built-in closed-loop tension control system and precision slitting unit guarantee uniform finished roll quality for films, foils, laminates and non-woven fabrics.
Optimized for fast on-site setup, the machine is delivered fully pre-assembled and can go into production immediately after power and pneumatic hookup, with 24/7 remote technical support available.
1）Shaftless unwind stand
2）Shear or razor cutters
3）Trim removal system
4）Pressure contact roller
5）Motorized finished roll pusher
6）Manual unloading unit
7）PLC control system integrated with HMI touchscreen and combination slitting, with hot-knife slitting available
8）Built-in splicing table for easy jumbo roll changeover
9）Differential rewind shafts
10）Laser-assisted core positioner
| Model | HN2000 |
| Slitting Thickness | 15-250um |
| Max Slitting Width | 2000mm |
| Min Slitting Width | 300mm |
| Unwinding Diameter | 800mm (OPTlONAl:1000mm) |
| Unwinding Type | SHAETLESS 3INCH AND 6INCH |
| Max Rewind Dameter | 600mm（OPTIONAL:800mm） |
| Rewinding Shaft | NORMAL AIR SHAFTS(OPTONAL:SLIPPING AIR SHAFT |
| Min Rewinding Width | 40mm |
| Slitting Unit | RAZOR BLADE(OPTONAL:SHEAR CIRCLE BLADE |
| Laser position light | 10 PCS |
| Meter counter | WHEEI METER COUNTER |
| Mechanical Speed | 550m/min |
| Working Speed | 500m/min |
| Wall Thickness | 50mm |
| Power Supply | 380V 3PHASES 50HZ |
| AIR POWER SUPPLY | 0.7 Mpa(MINI) |
* Other specifications are offered at request.
